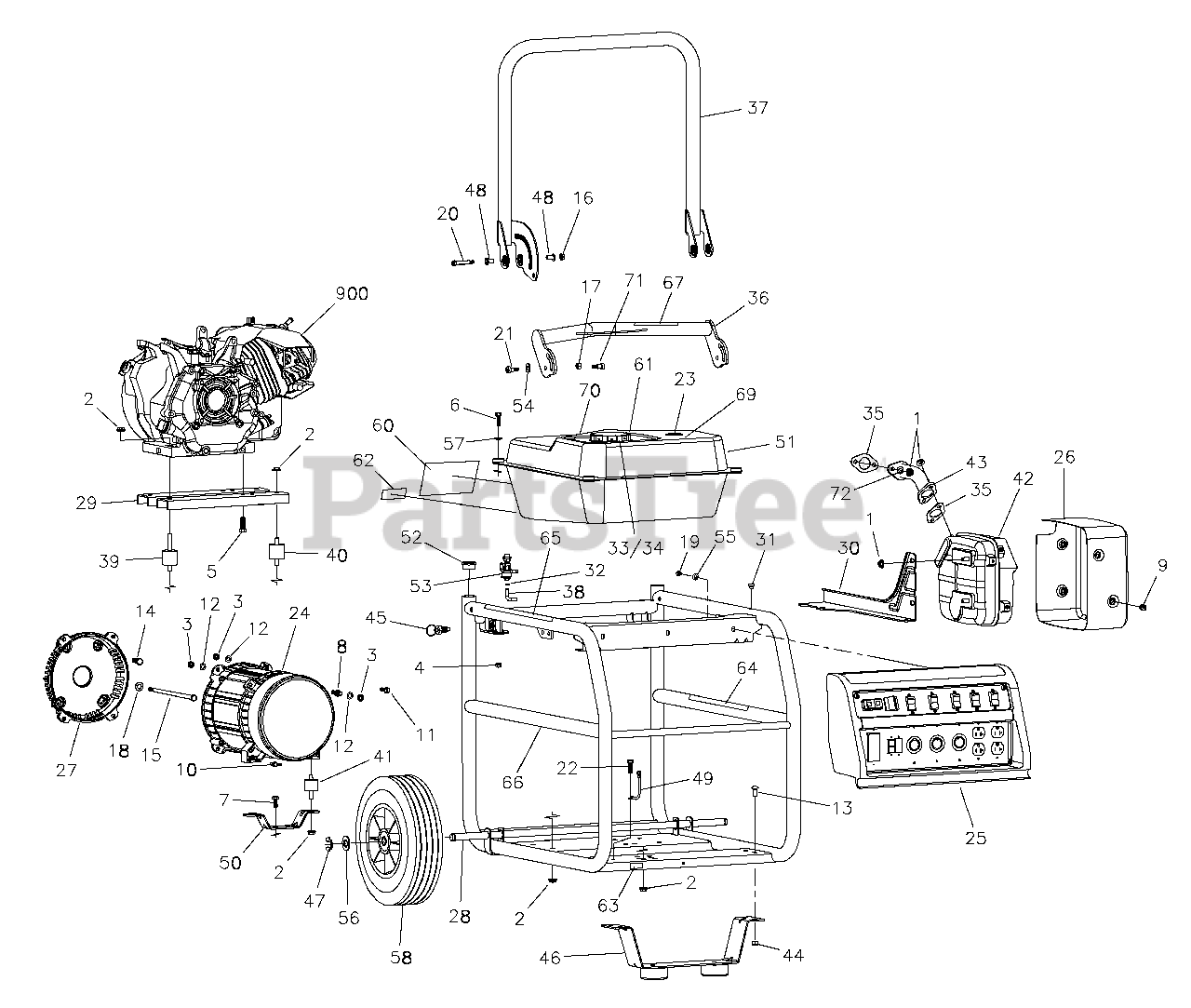

030373-0 - Milwaukee 4,500 Watt Portable Generator Main Unit Parts Diagram

4,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 710090

Nut, M8 - 1.25, Flange

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 67989GS

Nut, M8 - 1.25, Flange

$3.49

$

In Stock, Qty 9

0

3

Nut, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 52858GS

Nut, M8 - 1.25, Lock

$3.99

$

In Stock, only 2 left!

0

5

HHCS, M8 - 1.25 x 40

Note: (Purchase locally)

$

$

Not available

6

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

7

HHCS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 187117GS

Stud, M8, Double

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 206459GS

HHS, Trilobular, 1/4 - 20 x 1/2

$2.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86494GS

Screw, M6 - 1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

11

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

12

Lockwasher, M8

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 206121GS

Carriage Bolt, 5/16 - 18 x .75

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190274BGS

SBHCS, 3/8 - 16 x 1

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 47480GS

HHCS, 5/16 - 24 x 7

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194005GS

Nut, 1/4 - 20, Flange, Nylok

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 206140GS

Nut, 5/16 - 18, Lock

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 206141GS

BHCS, 1/4 - 20 x 1/2

$3.49

$

Usually ships in 2-12 days

0

20

SHCS, 1/4 - 20 x 2, Shoulder

Note: (Purchase locally)

$

$

Not available

21

SHCS, 3/8 x 5/8, Shoulder

Note: (Purchase locally)

$

$

Not available

22

Briggs & Stratton B2153GS

Screw, 12 - 14 x 7/8", Self Driller

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205441GS

Gauge, Fuel

$17.99

$

Usually ships in 2-12 days

0

24

NSP

Assy, Alternator

Note: (See Alternator View)

$

$

Not available

25

Briggs & Stratton 206158GS

Assy, Control Panel

Note: (See Control Panel View)

$993.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 206304GS

Enclosure, Muffler

$57.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 190220GS

Adapter, Engine

$43.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 191267WGS

Axle

$38.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B92531GS

Bracket, Support

$30.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 206649GS

Bracket, Muffler
(Superseded to 711978)

$60.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1797GS

Clip, Tree

$3.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 189568GS

Clamp, Hose

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 205409GS

Cap, Fuel

$22.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 206892GS

Strainer, Tank

$8.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 710250

Gasket

$8.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton K205549GS

Assy, Lift Bar

Note: (Includes #67)

$83.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton K205545GS

Handle

$110.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 791745

Kit, Fuel Line

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

39

Briggs & Stratton 194783GS

Mount, Vibration, Engine

$23.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194789GS

Mount, Vibration, Bracket

$15.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 85652GS

Mount, Vibration, Alt
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 206285GS

Muffler

$136.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 715601

Elbow, Exhaust

Note: (Includes #1 & 35)

$61.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 206140GS

Nut, 5/16 - 18, Lock

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 206132GS

Pivot Pin

$57.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 206317GS

Assy, Support, Leg

$100.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

48

Briggs & Stratton 206134GS

Spacer, Shoulder

$9.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton K205544GS

Support, Alt

$31.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 205406GS

Fuel Tank

Note: (Fuel Valve Sold Separately) (Includes #’S 23, 33, 34, 60, 61, 62, 69 & 70)

$

$

Not available

52

Briggs & Stratton 189332GS

Cap, Tube End

$3.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 193272GS

Valve, Fuel Shut Off
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

54

Washer, 3/8 - M10, Flat

Note: (Purchase locally)

$

$

Not available

55

Briggs & Stratton 71693GS

Washer, Fender

$2.99

$

Usually ships in 2-12 days

0

56

Washer, 5/8

Note: (Purchase locally)

$

$

Not available

57

Washer, Flat, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 206040GS

Wheel

$93.99

$

In Stock, only 2 left!

0

60

Briggs & Stratton 94480GS

Decal, Instruction, Start

$17.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 205971GS

Decal, Instruction, Fuel Level

$17.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 205972GS

Decal, Fuel Shut Off

$8.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

64

Briggs & Stratton 205970GS

Decal, Hot Engine

$20.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 206558GS

Decal, Pinchpoint

$17.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton K205532GS

Cradle

Note: (Includes #’s 63, 64 & 65)

$533.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 206557GS

Decal, Lift, English/Spanish/French

$17.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 202997GS

Decal, Co Warning

$13.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 206203GS

Decal, Tank, Metco

$17.99

$

Usually ships in 2-12 days

0

71

SHCS, 3/8 x 1/2, Shoulder

Note: (Purchase locally)

$

$

Not available

72

Briggs & Stratton 50190GS

Washer, .34 x 1 x 10

$3.99

$

In Stock, only 1 left!

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 206060GS

Manual, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: (Qty 2 Required) Parts Not Illustrated

$8.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 206065GS

Decal, Recoil

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 206066GS

Decal, Air Cleaner

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 206052GS

Arrestor

Note: Parts Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 206183GS

Hardware, Wheel Kit

Note: Parts Not Illustrated

$9.99

$

Usually ships in 2-12 days

0
