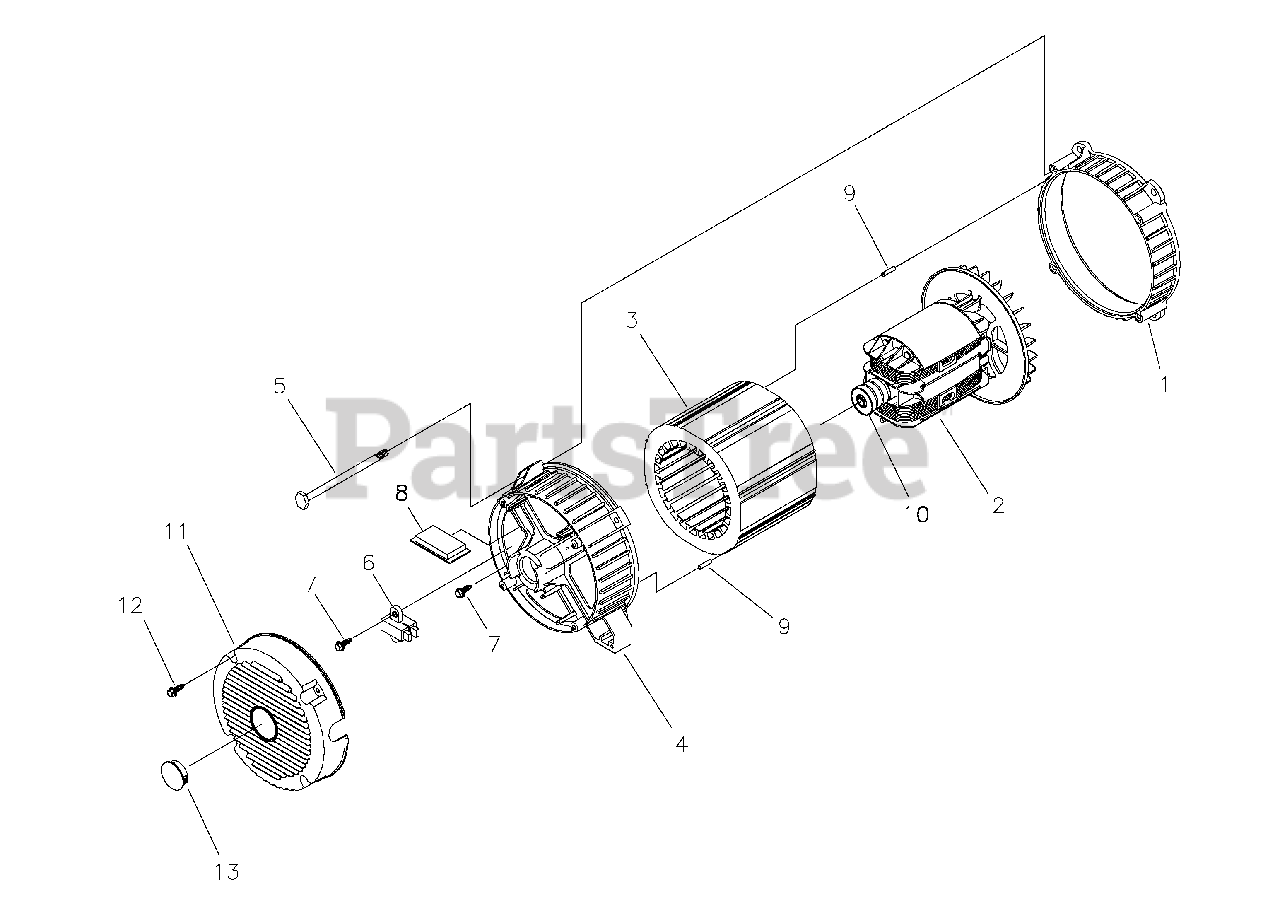

030373-0 - Milwaukee 4,500 Watt Portable Generator Alternator Parts Diagram

4,500 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

Adapter, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 206526GS

Assy, Rotor

$

$

Not available

3

Briggs & Stratton 206175GS

Stator

$434.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC
(Superseded to 193336GS)

Note: (with O-Ring, p/n 189197GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308CGS

HHCS, M6 - 1.0 x 130 SEMS

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

Assy, Holder, Brush

$23.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 66849GS

Taptite, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 189769GS

Regulator
(Superseded to 205858GS)

$107.99

$

In Stock, Qty 17

0

9

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65791GS

Bearing

$34.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 195422GS

Cover, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 74908GS

Taptite, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0
