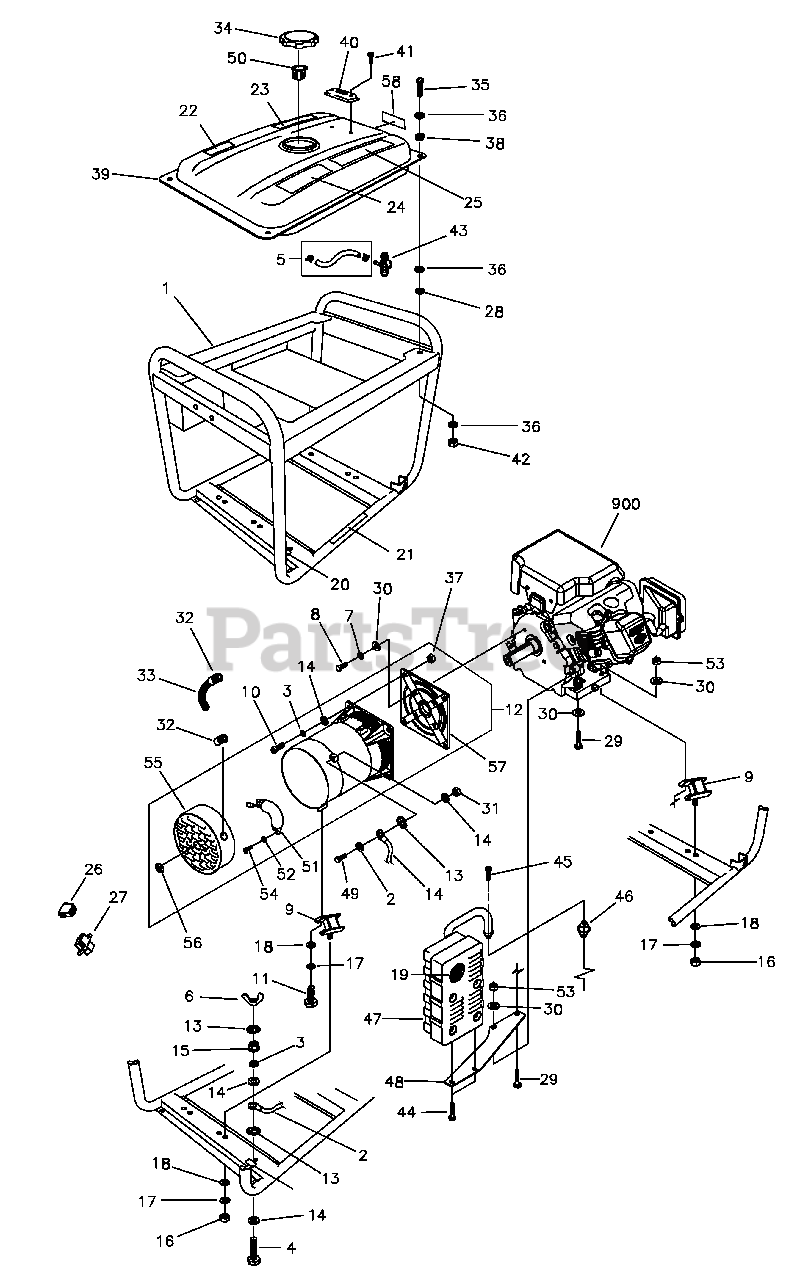

030372-0 - Briggs & Stratton 3,250 Watt Portable Generator Main Unit Parts Diagram

3,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 205612GS

Cradle

Note: Includes Items 20 & 21

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 203694GS

Wire, Ground

$4.49

$

Usually ships in 2-12 days

0

3

-----

Washer, Lock, M8 Zinc Plated

Note: (Purchase locally)

$

$

Not available

4

-----

Hex Bolt, M8 x 30, Zinc Plated

Note: (Purchase locally)

$

$

Not available

5

Briggs & Stratton 791745

Kit, Fuel Line

Note: Cut to fit

$10.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 204748GS

Wing Nut

$3.49

$

Usually ships in 2-12 days

0

7

-----

Washer, Lock M8

Note: (Purchase locally)

$

$

Not available

8

-----

HHCS, 5/16 - 24

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton 204735GS

Absorber, Vibration

$

$

Not available

10

-----

SHCS, M8 x 30

Note: (Purchase locally)

$

$

Not available

11

-----

HHCS

Note: (Purchase locally)

$

$

Not available

12

Briggs & Stratton 204772GS

Assy, Alt

$576.99

$

Usually ships in 2-12 days

0

13

-----

Washer, M8, Zinc Plated

Note: (Purchase locally)

$

$

Not available

14

-----

Washer, Flat, M8 x 16

Note: (Purchase locally)

$

$

Not available

15

-----

Hex Nut, M8, Zinc Plated

Note: (Purchase locally)

$

$

Not available

16

-----

Nut, M10

Note: (Purchase locally)

$

$

Not available

17

-----

Washer, Lock, M10 Blk Zinc Plated

Note: (Purchase locally)

$

$

Not available

18

-----

Washer, Flat, M10

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 200310GS

Decal, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 202997GS

Decal, Warning CO

$13.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 194984GS

Decal, Warning Fuel

$17.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 188333GS

Decal, Warning Fuel Fill

$23.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 94480GS

Decal, Fuel Instructions

$17.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 204740GS

Wire End Seat

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 204741GS

Wire End Seat, White

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 204736GS

Pad, Plastic

$2.99

$

Usually ships in 2-12 days

0

29

-----

HHCS, M8 x 35

Note: (Purchase locally)

$

$

Not available

30

-----

Washer, Flat, M8 x 16

Note: (Purchase locally)

$

$

Not available

31

-----

Nut, Nylon M8, Zinc Plated

Note: (Purchase locally)

$

$

Not available

32

Briggs & Stratton 204737GS

Quick Connector

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 204738GS

Tube

$8.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 204739GS

Cap, Fuel

$16.99

$

Usually ships in 2-12 days

0

35

-----

Screw, M6 x 30

Note: (Purchase locally)

$

$

Not available

36

-----

Washer, Flat, M6 x 24

Note: (Purchase locally)

$

$

Not available

37

-----

Nut, M8

Note: (Purchase locally)

$

$

Not available

38

Briggs & Stratton 204749GS

Grommet, Tank

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 205614GS

Assy, Tank, Fuel

Note: Includes Items 22, 23, 24, 25 & 58

$269.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 204744GS

Gauge, Fuel

$13.99

$

Usually ships in 2-12 days

0

41

-----

Screw, M5 x 10

Note: (Purchase locally)

$

$

Not available

42

-----

Nut, Nylon, M6

Note: (Purchase locally)

$

$

Not available

43

Briggs & Stratton 204743GS

Valve, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

-----

HHCS, M6 1.0 x 12 with LW

Note: (Purchase locally)

$

$

Not available

45

-----

SHCS, M6 - 1 x 20

Note: (Purchase locally)

$

$

Not available

46

Briggs & Stratton 697815

Gasket, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

47

Briggs & Stratton 188301GS

Muffler

$152.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 191785GS

Bracket, Muffler

$16.99

$

Usually ships in 2-12 days

0

49

-----

Screw, M8 x 25

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 204742GS

Filter

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 204774GS

Capacitor

$

$

Not available

52

Briggs & Stratton 204776GS

Washer, Capacitor

$3.49

$

Usually ships in 2-12 days

0

53

-----

Nut, Nylon, M8

Note: (Purchase locally)

$

$

Not available

54

Briggs & Stratton 204777GS

Screw, Capacitor

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 204775GS

Cover, Alt

$26.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 204773GS

Rubber

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 203705GS

Flange, Alt

$30.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197797GS

Decal, Fuel Shut Off

$8.99

$

Usually ships in 2-12 days

0

900

-----

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 204883GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 205613GS

Kit, Decals, Service

Note: Parts Not Illustrated

$8.49

$

Usually ships in 2-12 days

0
