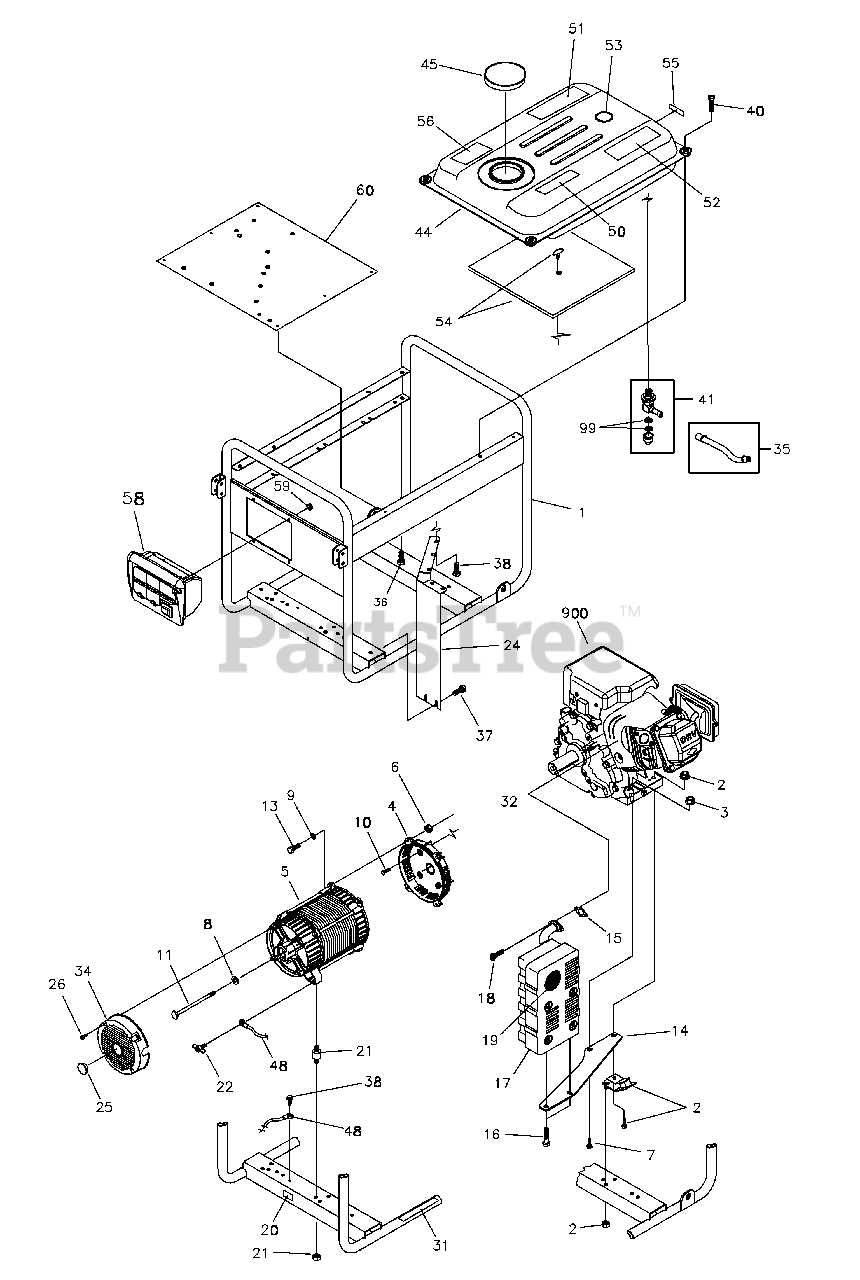

030369-0 - Husqvarna 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton N204097GS

Cradle

Note: (Includes Items 20 & 31)

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

Kit, Vibration Mount, 45°

$13.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 190220GS

Adapter, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

Assy., Alternator

$

$

Not available

6

-----

Nut, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 195398GS

Tphms, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

Washer, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274BGS

SBHC, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16 - 24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

13

-----

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

Bracket, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

Gasket, Exhaust

$7.99

$

In Stock, Qty 7

0

16

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

Muffler

$

$

Not available

18

Briggs & Stratton 204885GS

SHCS, M8 - 1.25 x 20

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

Assy., Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

Decal, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

Cover, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Hose, Fuel

Note: (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

Screw, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

Crimptite, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

Screw, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 197955GS

Taptite, M8 - 1.25 x 20

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

Valve, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 204851GS

Assy., Tank Fuel

Note: (Includes Items 41, 50, 51, 52, 53, 55 & 56)

$310.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 189135GS

Cap, Tank

$20.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

Decal, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

Decal, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

Decal, Instruction, Start

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192724GS

Gauge, Fuel

$

$

Not available

54

Briggs & Stratton 194448GS

Kit, Insulation w/Clip

$

$

Not available

55

Briggs & Stratton 197797GS

Decal, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

Decal, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197641GS

Assy., Control Panel

$

$

Not available

59

Briggs & Stratton 189164GS

Palnut, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 204594GS

Heatshield

$98.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

Kit, Fuel Repair Valve
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

-----

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 204839GS

Manual, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061GS

Bottle, Oil

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 204877GS

Kit, Decal Service

Note: Parts Not Illustrated

$

$

Currently unavailable
