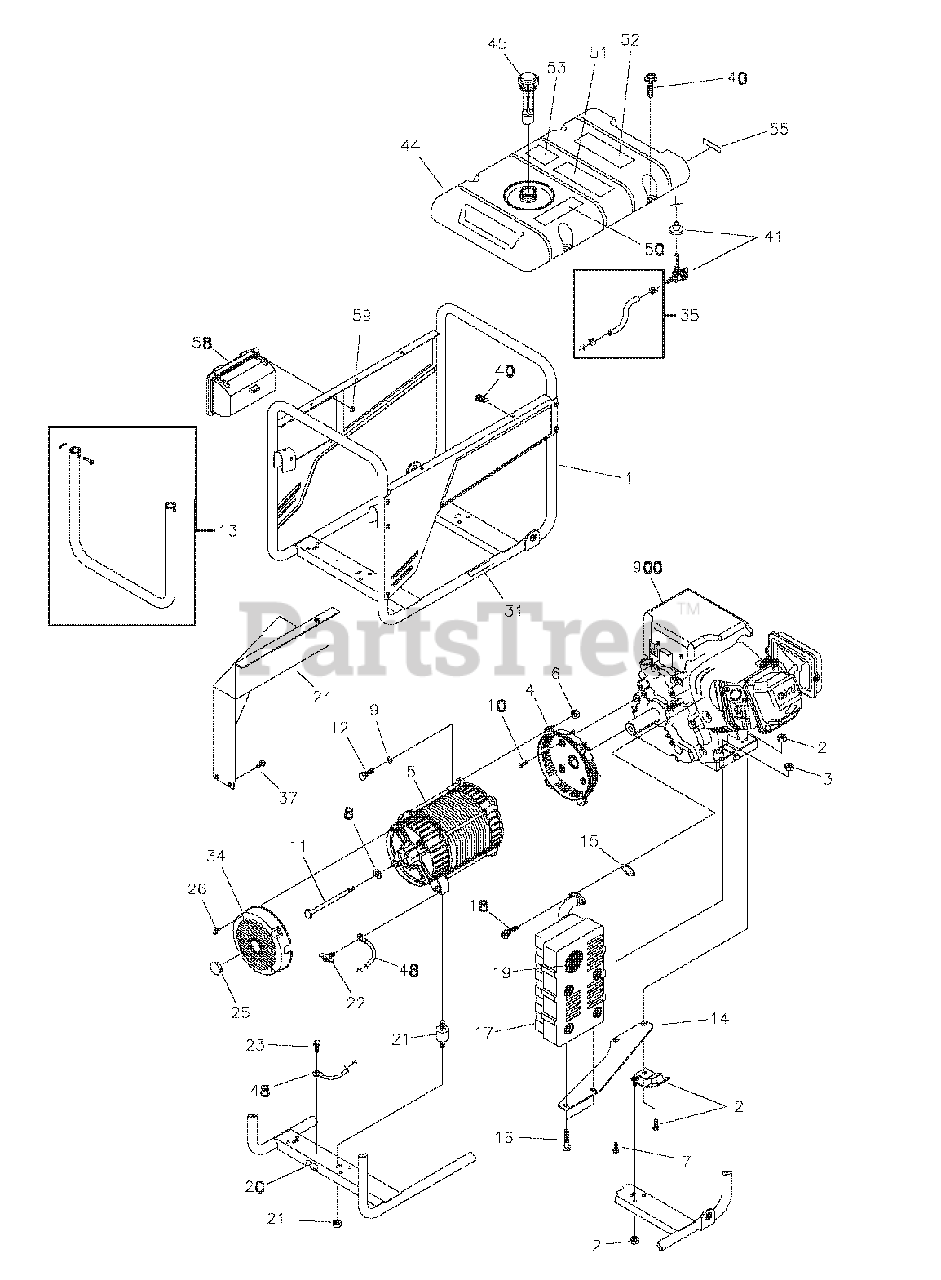

030361-0 - Briggs & Stratton 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 198163GS

ASSY, Cradle (Includes items 20 & 31)

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration, Mount, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator (see page 4)

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: Purchase locally

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Lock 5/16 - M8

Note: Purchase locally

$

$

Not available

10

SBHCS, 3/8-16 x 1.0 Lg

Note: Purchase locally

$

$

Not available

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: Purchase locally

$

$

Not available

13

Briggs & Stratton 198165GS

KIT, Handle

$67.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

HHCS, M6 - 1.0 x 12 w/LW

Note: Purchase locally

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

SCREW, 5/16 - 18 x 3/4"

Note: Purchase locally

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 197424GS

SHIELD, Heat

$121.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose, w/clamps (cut to fit)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

KIT, Fuel Tank Hardware w/U-Clips

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199284GS

U-CLIPS, (Optional Accessory)

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

ASSY., Tank, Fuel (Includes items 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, CO Warning

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 204073GS

ASSY, Control Panel

$201.99

$

Usually ships in 2-12 days

0

59

NUT, Palnut, 3/16"

Note: Purchase locally

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 204158GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202180GS

DECAL, Family, CA EVP

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203525GS

KIT, Decals

Note: Not Illustrated

$25.99

$

Usually ships in 2-12 days

0
