030360-0 - Troy-Bilt 5,000 Watt Portable Generator Main Unit (204051) Parts Diagram

5,000 Watt Portable Generator

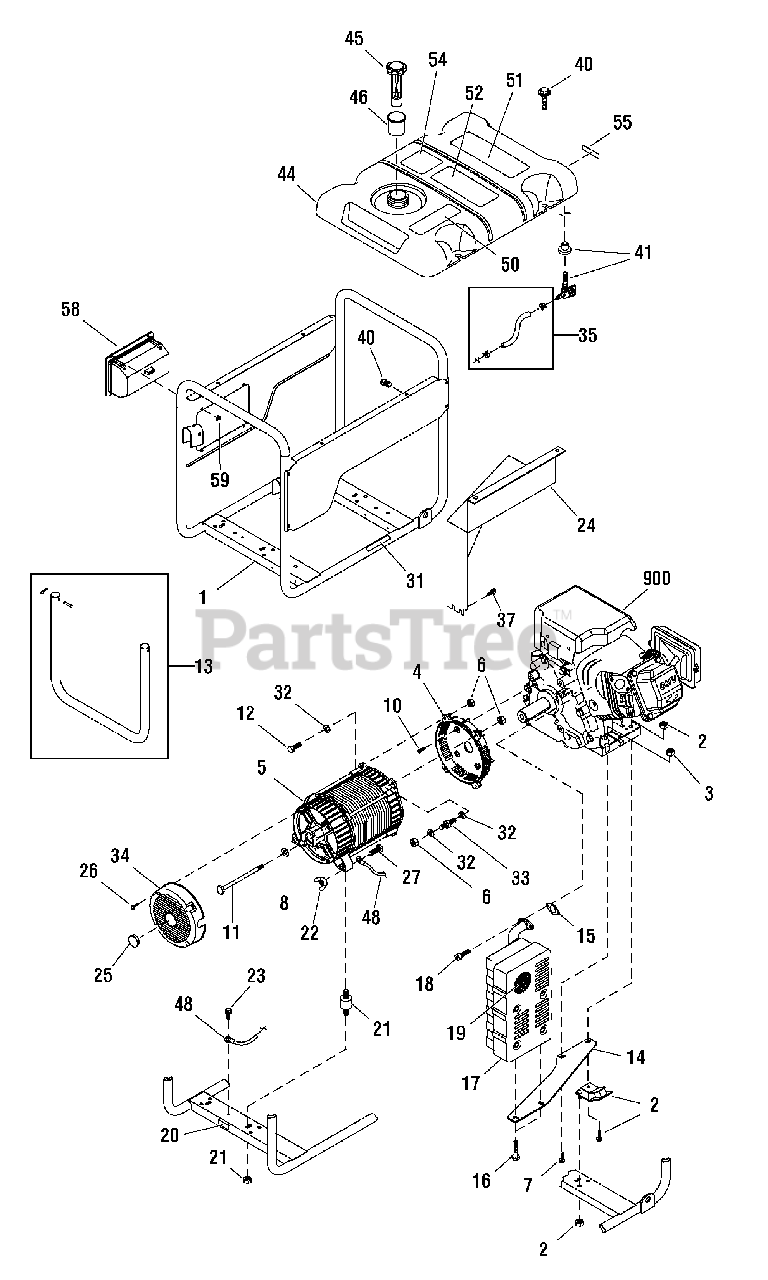

Main Unit (204051) Parts Diagram

  • Title

1

Briggs & Stratton 203473GS

CRADLE

Note: (Includes items 20 & 31)

$

$

Not available

2

Briggs & Stratton 194150GS

KIT, Vibration, Mount, 45°

$13.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

NUT, Hex M8 - 1.25

$

$

Not available

7

-----

TPHMS, M8 - 1.25 x 35

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

CAPSCREW, Hex Head, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

-----

CAPSCREW, Hex Head, M8 - 1.25 x 25

$

$

Not available

13

Briggs & Stratton 198763GS

KIT, Handle

$61.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

CAPSCREW, Hex Head, M6 - 1.0 x 12 w/LW

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

CAPSCREW, Socket Head, 15/16 - 18 x 3/4

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

SCREW

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 197424GS

SHIELD, Heat

$121.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, Taptite, M5-0.8 x 10t

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 207947GS

BOLT

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

32

-----

WASHER, Lock 5/16 - M8

$

$

Not available

33

Briggs & Stratton 187117GS

STUD, Double

$3.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose, w/Clamps

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

KIT, Hardware, Fuel Tank, w/U-Clips

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199284GS

U-CLIPS,

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

FUEL TANK ASSEMBLY

Note: (includes Items 41, 50, 51, 52, 54 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 195181GS

INSERT

$

$

Not available

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 202997GS

DECAL, CO Warning

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 310761GS

CONTROL PANEL ASSEMBLY

$148.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

NUT

$3.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 204034GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206775GS

CORD, Power

Note: (Not Illustrated)

$186.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202368GS

KIT, Decals, Service

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0
