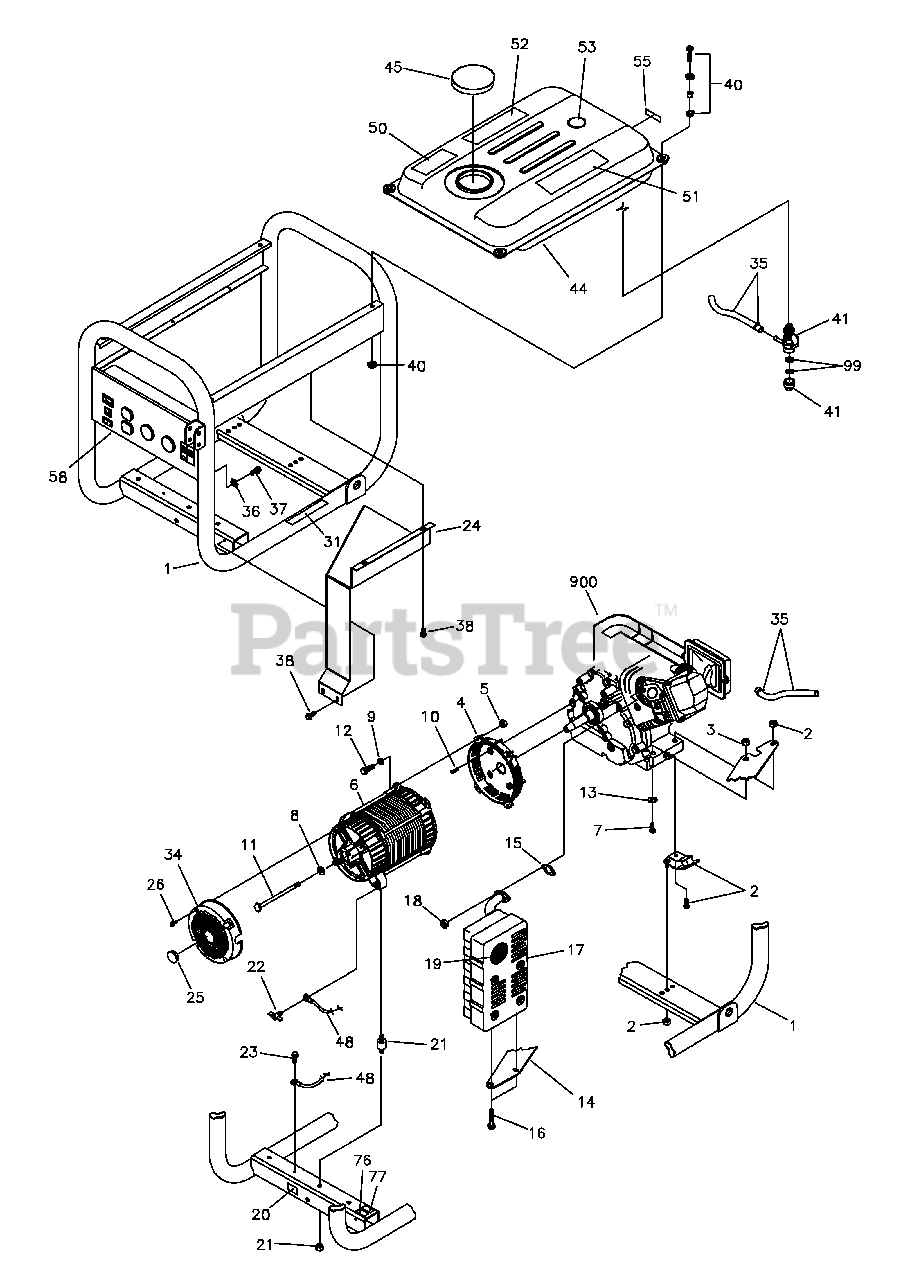

030342-0 - Briggs & Stratton 4,000 Watt Portable Generator Main Unit Parts Diagram

4,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B192658GS

Cradle

Note: Includes Items 20, 31, 76 & 77

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

Kit, Mount, Vibration, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 190220GS

Housing, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

-----

Nut, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

6

NSP

Assy, Alternator

Note: Alternator

$

$

Not available

7

-----

TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

Washer, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

-----

Washer, Lock 5/16 M8

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

Screw, 3/8-16 x 7/8

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 53122GS

HHCS, 5/16-24 x 6-1/2

$10.99

$

In Stock, only 1 left!

0

12

-----

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

13

-----

Washer, 5/16 Flat

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 193021GS

Bracket, Muffler

$36.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 710082

Gasket, Exhaust

$7.99

$

In Stock, only 1 left!

0

16

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 192898GS

Muffler

$

$

Not available

18

Briggs & Stratton 710090

Nut

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration Mount

$11.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

Screw, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton J193053GS

Shield, Heat

$110.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

Decal, Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

Cover, RBC, Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Fuel Hose

Note: Cut to Fit

$10.99

$

In Stock, Qty 20+

0

36

-----

Washer, M6 - 1/4 Int. Shakeproof

Note: (Purchase locally)

$

$

Not available

37

Briggs & Stratton B2153GS

Screw, #10 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

Screw, 12-24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194212GS

Kit, Fuel Tank Hardware

Note: Includes Qty of 4

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

Valve, Tank
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 195988GS

Assy., Tank, Fuel 4.5-Gallon

Note: Includes Items 41, 50, 51, 52, 53 & 55

$

$

Not available

45

Briggs & Stratton 189135GS

Cap, Fuel, Vented

$20.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 202997GS

Decal, CO Warning

$13.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194984GS

Decal, Danger

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

Decal, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189136GS

Gauge, Fuel

$18.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

Decal, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 195512GS

Assy, Control Panel

$

$

Not available

76

Briggs & Stratton 195459GS

Decal, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 195940GS

Decal, Ground French

$6.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

Kit, Fuel Repair Valve
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

-----

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 43483GS

Plug, 250V 20A, 4 Prong
(Superseded to 100522GS)

Note: Parts Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

Plug, 125V 30A, 3 Prong

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

Cable, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

Oil Bottle

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 203336GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203589GS

Kit, Decals Service

Note: Parts Not Illustrated

$

$

Currently unavailable
