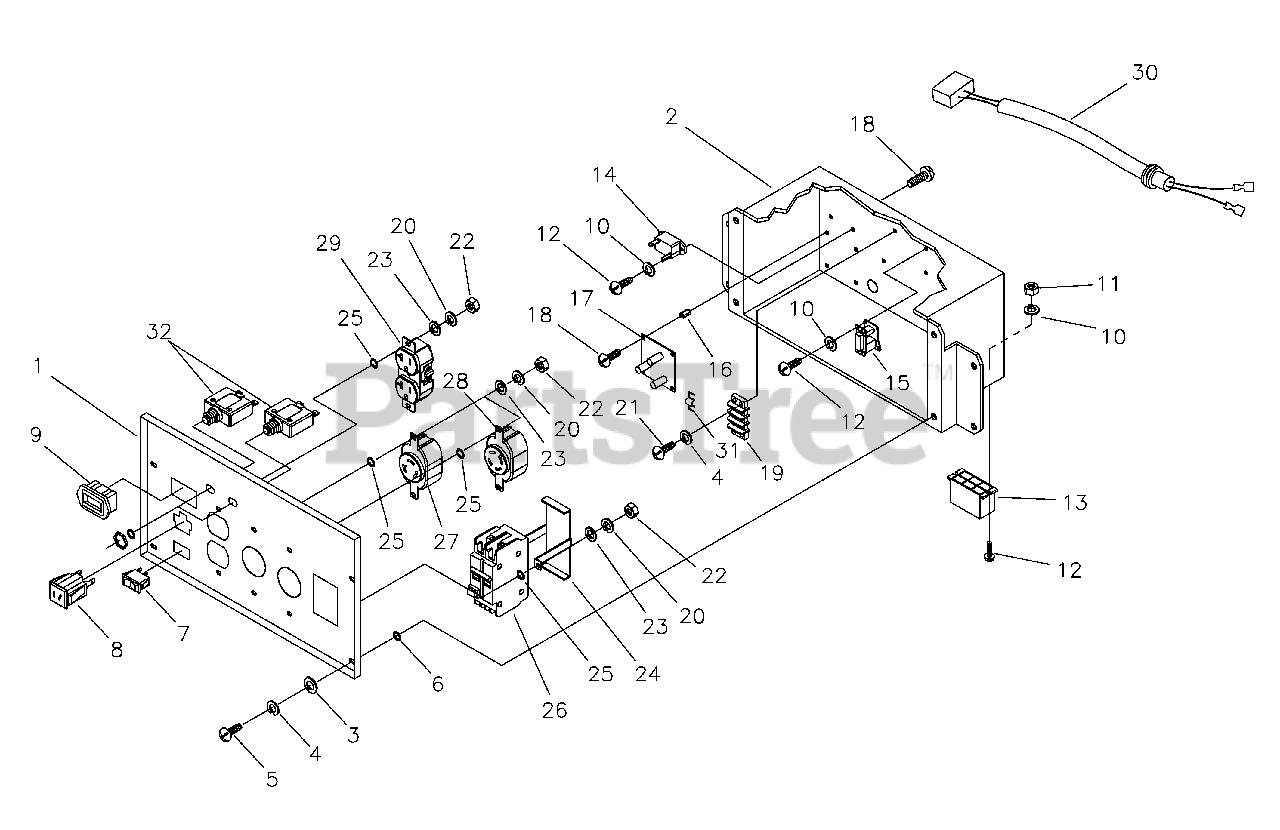

030339-0 - VOX 5,500 Watt Portable Generator Control Panel Parts Diagram

5,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B192833GS

Panel, Control

$251.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B192836GS

Box, Control Panel

$192.99

$

Usually ships in 2-12 days

0

3

Washer, Flat, #10 - M5

Note: (Purchase locally)

$

$

Not available

4

Lockwasher, M5

Note: (Purchase locally)

$

$

Not available

5

PPHMS, M5 - 0.8 x 12

Note: (Purchase locally)

$

$

Not available

6

Washer, M6 - 1/4, Int. Shakeproof

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 82538GS

Switch, Rocker

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90418GS

Outlet, 12VDC, Snap

$

$

Not available

9

Briggs & Stratton 202602GS

Hour Meter

$97.99

$

Usually ships in 2-12 days

0

10

Lockwasher, M3

Note: (Purchase locally)

$

$

Not available

11

NUT, M3 - 0.5

Note: (Purchase locally)

$

$

Not available

12

PHMS, M3 - 0.5 x 10

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 22694GS

Housing, Receptacle

$5.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 87962GS

Breaker, Circuit, 10A, 12V

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84028GS

Transformer, Idle Control

$47.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 64525GS

Standoff, Hex

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 193362GS

PCB, Idle Control

$164.99

$

Usually ships in 2-12 days

0

18

PHTS, #6-32 x 3/8

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 193077GS

Strip, Terminal

$21.99

$

Usually ships in 2-12 days

0

20

Lockwasher, M4

Note: (Purchase locally)

$

$

Not available

21

PPHMS, M5 - 0.8 x 20

Note: (Purchase locally)

$

$

Not available

22

NUT, M4 - 0.7

Note: (Purchase locally)

$

$

Not available

23

Washer, Flat, M4

Note: (Purchase locally)

$

$

Not available

24

Briggs & Stratton 192931GS

Bracket, GFCI Breaker

$46.99

$

Usually ships in 2-12 days

0

25

Washer, Shakeproof, Int. #8

Note: (Purchase locally)

$

$

Not available

26

Briggs & Stratton 192828DGS

Breaker, Circuit, GFCI, 30A

$215.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68868GS

Outlet, 120V, 30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 68759GS

Outlet, 120V, 20A, Duplex

$24.99

$

In Stock, only 4 left!

0

30

Briggs & Stratton 205018GS

Harness, Wire

$36.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 193095GS

Jumper, Terminal Block

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 202394GS

Breaker, Circuit, 20A w/Hardware

$33.99

$

In Stock, only 1 left!

0
