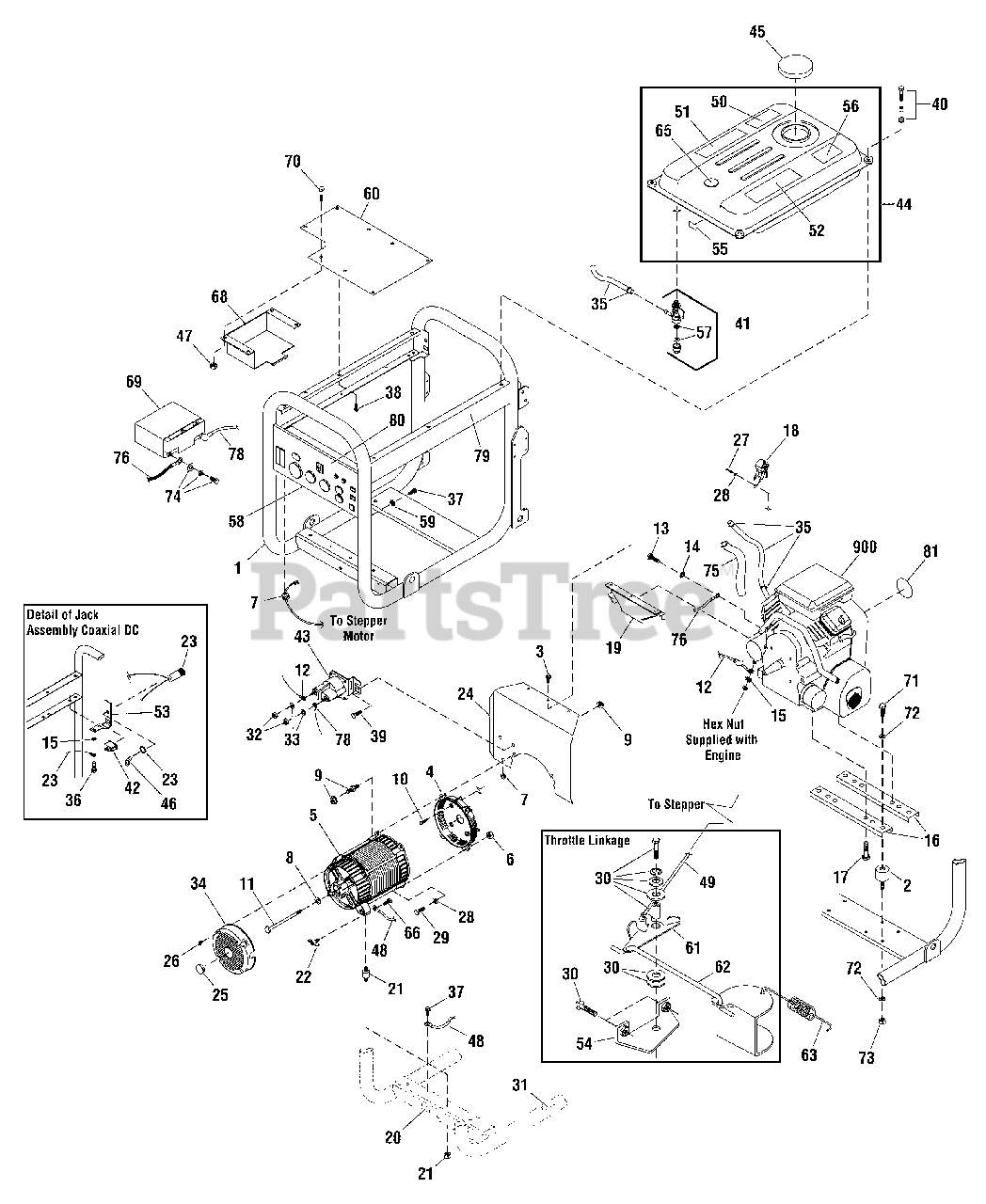

030338-0 - Briggs & Stratton 10,000 Watt Portable Generator Main Unit (204734) Parts Diagram

10,000 Watt Portable Generator

Main Unit (204734) Parts Diagram

  • Title

1

Briggs & Stratton 204637ZGS

CRADLE

Note: (Includes Items 20 & 31)

$713.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 38353GS

MOUNT, Vibration

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex, M8 - 1-1/4

$

$

Not available

7

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT, Hardware, Heatshield

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365DGS

SCREW

$29.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302SGS

WIRE

$22.99

$

Usually ships in 2-12 days

0

13

-----

* CAPSCREW, Hex Head, M8 - 1-1/4 x 16

$

$

Not available

14

-----

* WASHER, Shakeproof, EXT. 5/16

$

$

Not available

15

-----

* WASHER, Shakeproof, EXT. M6

$

$

Not available

16

Briggs & Stratton 77304ZGS

SUPPORT, Engine

$26.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195404GS

MOTOR, Stepper

$148.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 93074BRGS

SUPPORT, Heatshield

$45.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

MOUNT, Vibration

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 201348GS

JACK, Coaxial

$17.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194951GS

HEATSHIELD

$93.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

-----

* CAPSCREW, Hex Head, M8 - 1-1/4 x 20

$

$

Not available

28

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

29

-----

* CAPSCREW, Hex Head, M8 - 1-1/4 x 25

$

$

Not available

30

Briggs & Stratton 194543GS

KIT, Hardware, Throttle Linkage

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

-----

* NUT, 1/4-20

$

$

Not available

33

-----

* WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 90388GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

40

Briggs & Stratton 198221GS

KIT, Hardware, Fuel Tank

$8.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 310574GS

VALVE, Fuel

$10.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 87799GS

SWITCH, ON/OFF

$7.49

$

In Stock, Qty 10

0

43

Briggs & Stratton 691656

CONTACTOR, Start

$31.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 196035GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Fuel

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 192351GS

LUG

$2.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

NUT

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

LINK, Stepper Motor

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 200816GS

BRACKET

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 95349GS

PLATE, Adjustment

$7.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 204578GS

PANEL, Control

$993.99

$

Usually ships in 2-12 days

0

59

-----

* WASHER, Shakeproof, EXT #10

$

$

Not available

60

Briggs & Stratton 193512GS

SUPPORT, Battery Tray

$98.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

BRACKET

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

LINK, Bell Crank

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

SPRING

$

$

Not available

65

Briggs & Stratton 192724GS

GAUGE

$

$

Not available

66

-----

* CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

68

Briggs & Stratton 192985GS

TRAY, Battery

$81.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 3 left!

0

70

-----

* CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

71

-----

* CAPSCREW, Hex Head, 3/8-16 x 3/4

$

$

Not available

72

-----

* WASHER, Lock, 3/8

$

$

Not available

73

-----

* NUT, 3/8-16

$

$

Not available

74

Briggs & Stratton 315546GS

KIT, Hardware, Battery

$8.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 280623

TUBING, Fuel Line
(Superseded to 280866)

$

$

Not available

76

Briggs & Stratton 185939TGS

WIRE

$16.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302RGS

WIRE

$26.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 204722GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 204723GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 204730GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061GS

OIL

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, Qty 9

0

--

Briggs & Stratton 198800GS

DECAL, Float

Note: (Not Illustrated)

$7.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 197159GS

DECAL, Ignition

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 43438GS

PLUG, 120/240V TL30A

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100523GS

PLUG, 125V TL30A

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: (Not Illustrated)

$24.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 690661

SCREW

Note: (Not Illustrated)

$3.49

$

In Stock, Qty 9

0

--

Briggs & Stratton 392390

SPARK, Arrester
(Superseded to 794945)

Note: (Not Illustrated)

$53.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 692099

MUFFLER

Note: (Not Illustrated)

$184.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 691513

BRACKET

Note: (Not Illustrated)

$55.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 692056

SCREW

Note: (Not Illustrated)

$5.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 690898

CLAMP

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 692539

SCREW
(Superseded to 841233)

Note: (Not Illustrated)

$3.49

$

In Stock, Qty 20+

0
