030333-0 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

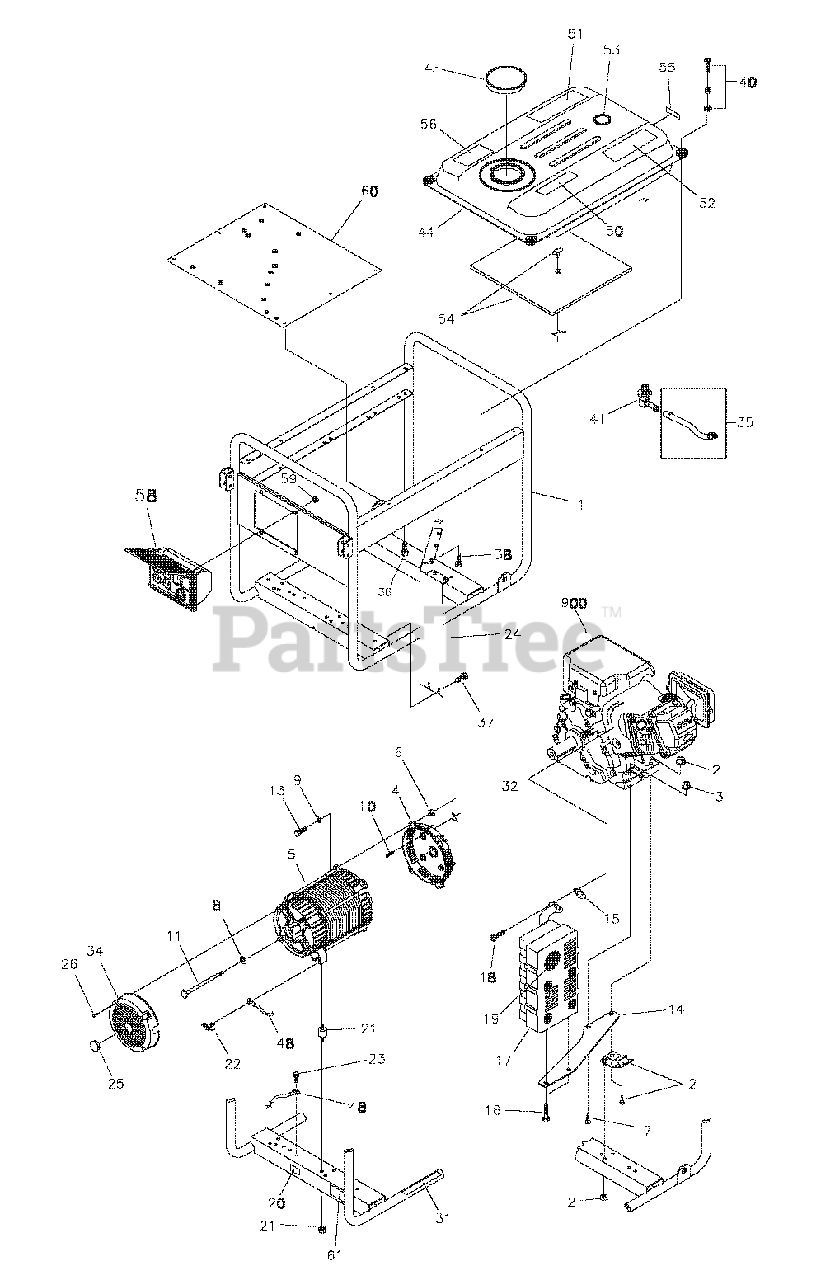

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M204097GS

KIT, Cradle

Note: (Includes Items 20, 31 & 61)

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR (see page 4)

$

$

Not available

6

-----

*NUT, Hex, M8-1-1/4

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW, Pan Head Torx, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

*WASHER, Lock, 5/16-M8

$

$

Not available

10

Briggs & Stratton 190274BGS

SCREW, 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGGS

CAPSCREW, Hex Head, 5/16-24 x 7.44

$26.99

$

Usually ships in 2-12 days

0

13

-----

*CAPSCREW, Hex Head, M8-1-1/4 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

*CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

SCREW, M8 -1.25 x 20

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT, Wing, M6-1

$7.49

$

Usually ships in 2-12 days

0

23

-----

*CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

24

Briggs & Stratton 194390GS

HEAT SHIELD

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW, Thread Forming, 12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 202954GS

ASSEMBLY, Fuel Tank

Note: (Includes Items 41, 50, 51, 52, 53, 55 & 56)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Tank

$20.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Warning, French

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Instruction, Start, French

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192724GS

GUAGE, Fuel

$

$

Not available

54

Briggs & Stratton 194448GS

KIT, Insulation w/Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 202530GS

ASSEMBLY, Control Panel

$

$

Not available

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 204594GS

HEAT SHIELD

$98.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 200311GS

DECAL, Neutral Bonded

$8.99

$

Usually ships in 2-12 days

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 203968GS

MANUAL, Operator’s

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: (Not Shown)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203665GS

KIT, Decal Service

Note: (Not Shown)

$

$

Currently unavailable
