030325-0 - Briggs & Stratton 5,550 Watt Portable Generator Main Unit Parts Diagram

5,550 Watt Portable Generator

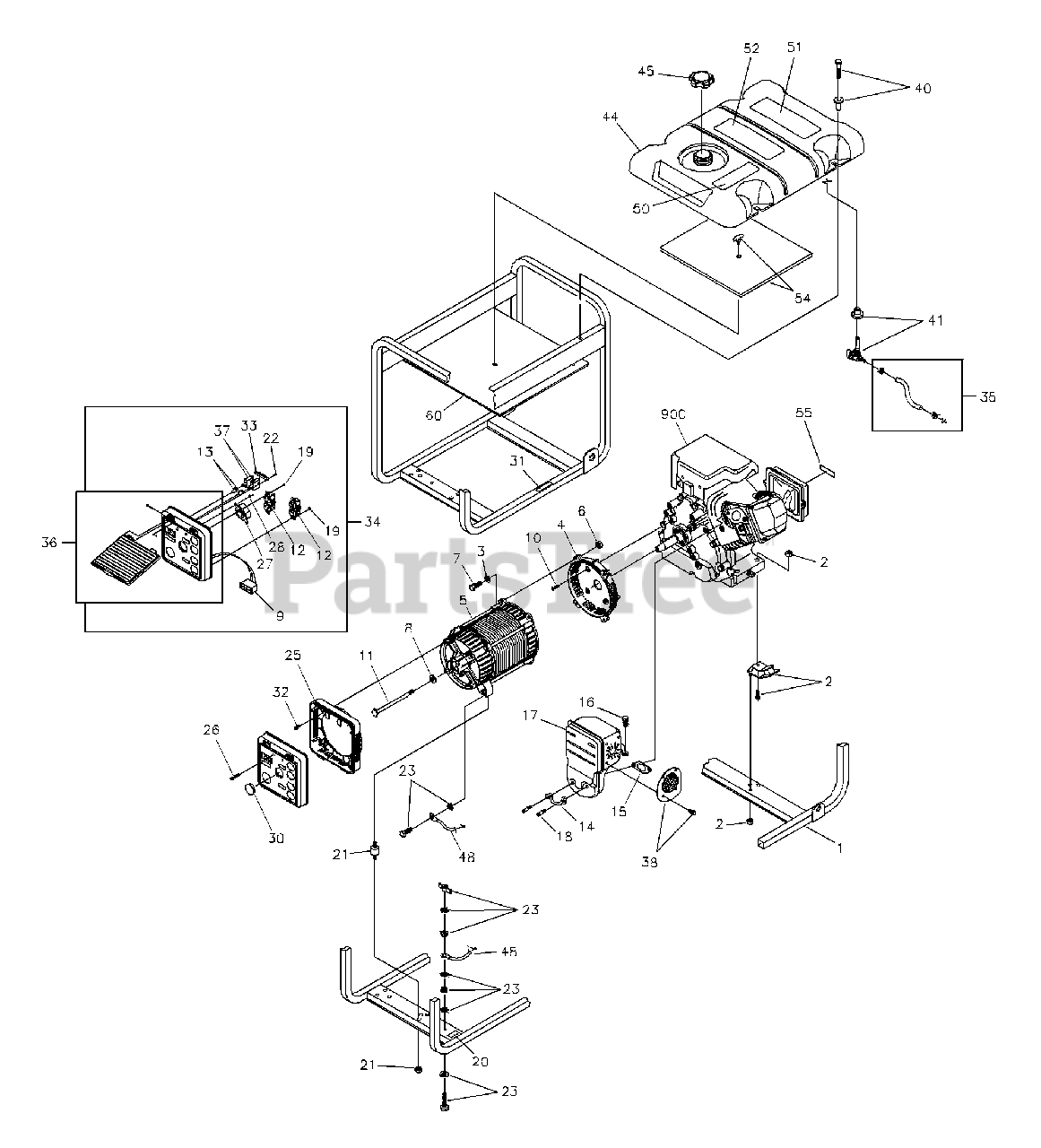

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton J193438GS

KIT, Cradle

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$13.99

$

In Stock, only 2 left!

0

3

-----

WASHER, Lock 5/16 - M8

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

-----

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

-----

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22695GS

HOUSING, Receptacle

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 68759GS

OUTLET, 120V, 20A

$24.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 695400

TAB, Locking

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697255

GASKET, Exhaust
(Superseded to 794818)

$8.49

$

In Stock, only 3 left!

0

16

Briggs & Stratton 695312

SCREW

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 697252

ASSY, Muffler
(Superseded to 794949)

$119.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 695399

SCREW, Shoulder

$20.99

$

In Stock, only 2 left!

0

19

-----

NUT, Pal, 5/32

Note: (Purchase locally)

$

$

Not available

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

-----

PPPHS, 3.5 x 18mm

Note: (Purchase locally)

$

$

Not available

23

Briggs & Stratton 194154GS

KIT, Grounding Hardware

$11.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191427GS

ADAPTER PANEL

$26.99

$

Usually ships in 2-12 days

0

26

-----

SCREW, M5 - 2.24 x 50

Note: (Purchase locally)

$

$

Not available

27

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

28

-----

NUT, Pal, 3/16

Note: (Purchase locally)

$

$

Not available

30

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 192023GS

ASSY, Control Panel

$114.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 194152GS

ASSY, Cover Panel

$46.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 8

0

38

Briggs & Stratton 392390

SPARK ARRESTER
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

Note: (Includes Qty of 4)

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 200883GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 200095GS

CAP, Fuel
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

48

Briggs & Stratton 186790EGS

WIRE, Ground

$15.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 197445GS

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-off

$9.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 193452GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 200784GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 188971GS

CORD, Ext.
(Superseded to 191895DGS)

Note: Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200882GS

KIT, Decal Srv

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

FUEL STABILIZER
(Superseded to 100126)

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0
