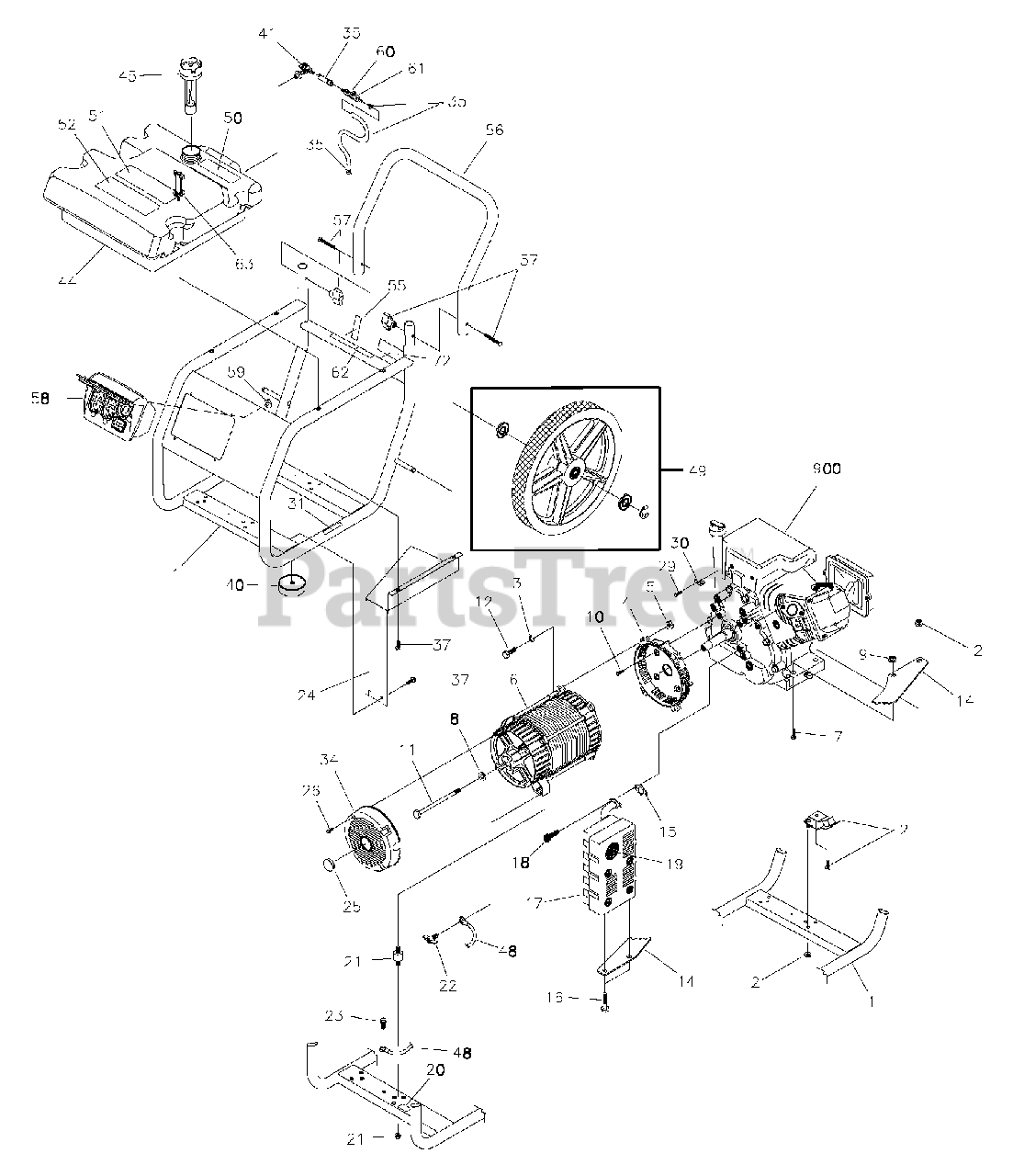

030324-0 - Briggs & Stratton 5,550 Watt Portable Generator Main Unit Parts Diagram

5,550 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton J197129GS

FRAME (Includes #20, 31, 40, 55, 62 & 72)

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount 45°

$13.99

$

Usually ships in 2-12 days

0

3

*

WASHER, M8 Lock

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

*

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

6

NSP

ASSY., Alternator (see page 5)

Note: (see "Alternator")

$

$

Not available

7

*

TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

*

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 7

0

16

*

HCS, M6 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

*

SHCS, 5/16 - 18 x 7/8"

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 86494GS

SCREW, Wing, M6 1 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 195094GS

SCREW, 10-16 x .68, Self Drill

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192793GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10 Taptite

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 94929GS

SCREW, Hex Wash HD

$6.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 226846

BRACKET, Oil Fill Tube

$

$

Currently unavailable

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 199838GS

KIT, Fuel Hose w/clamps (cut to fit)

$73.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192310GS

KIT, Vibe Mount

$9.99

$

In Stock, Qty 7

0

41

Briggs & Stratton 192980GS

KIT, Valve Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 196181GS

ASSY., Tank, Fuel (Includes #41, 50, 51 & 52)

Note: (includes items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 189420GS

CAP, Fuel Gauge

$47.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 203650GS

KIT, Wheel

$54.99

$

In Stock, Qty 7

0

900

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

900

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 20+

0

50

Briggs & Stratton 188333GS

DECAL, Fuel Tank

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton J194907GS

HANDLE

$107.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189456GS

KIT, Handle Fastening

$24.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197641GS

ASSY, Control Panel

$

$

Not available

59

*

NUT, Palnut 3/16"

Note: (Purchase locally)

$

$

Not available

60

Briggs & Stratton 189117GS

QUICK CONNECT, Fuel, 1/4 Barb

$41.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 192695GS

QUICK CONNECT, Fuel, 1/4 Barb

$38.99

$

In Stock, Qty 5

0

62

Briggs & Stratton 201079GS

DECAL, CO Warning

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 189114GS

KNOB, Fuel Tank Hold Down

$

$

Not available

72

Briggs & Stratton 192480GS

DECAL, Warning, Fuel Line Disconnect

$14.99

$

Usually ships in 2-12 days

0

900

§

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton BB3061GS

OIL BOTTLE

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 197474GS

CORDSET, Storm
(Superseded to 206775GS)

Note: Not Illustrated

$186.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton MS3430

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

900

Briggs & Stratton 199718GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 197581GS

TRAY, Overflow, Fuel

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 198419GS

KIT, Decals Service

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0
