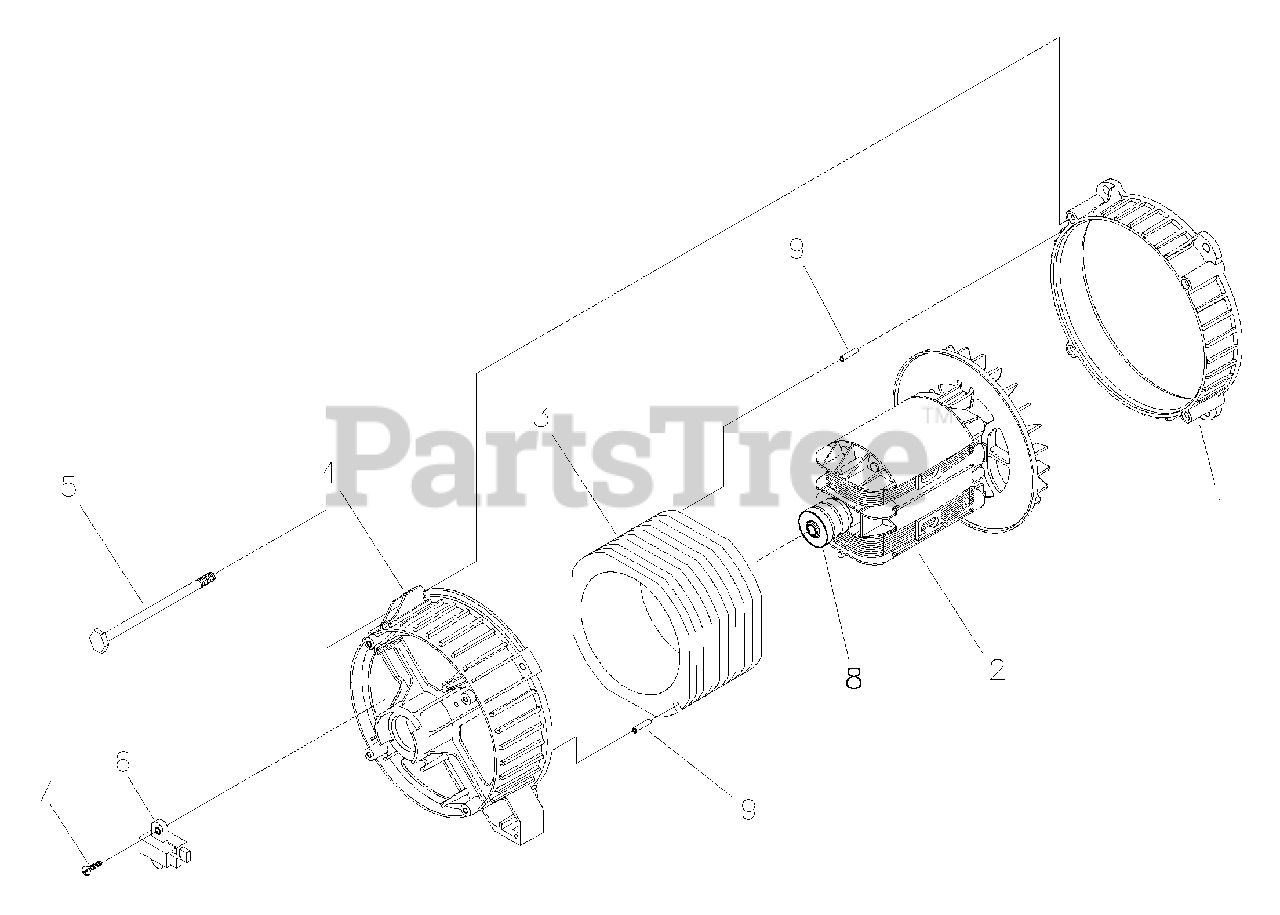

030319-0 - Briggs & Stratton 4,000 Watt Portable Generator Alternator Parts Diagram

4,000 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 199545GS

ROTOR

Note: (Includes Item 8)

$260.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 199546AGS

STATOR

$335.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, (with O-Ring, p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308GS

HHCS, M6 - 1.0 x 115 SEMS

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 91825GS

ASSY, Holder, Rectifier/Brush

$54.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0
