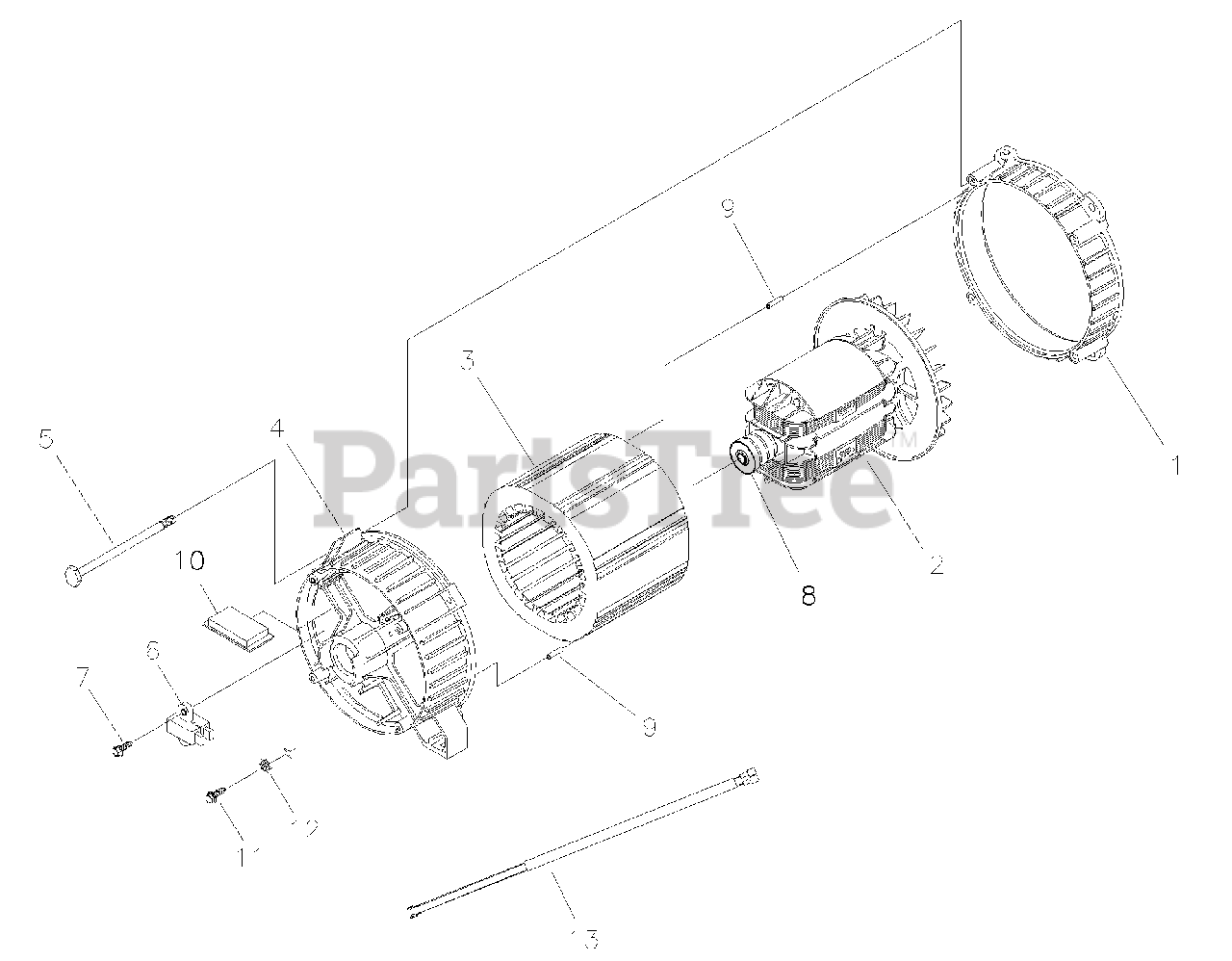

030299-1 - Craftsman 6,300 Watt Portable Generator Alternator Parts Diagram

6,300 Watt Portable Generator

Alternator Parts Diagram

  • Title
1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 191876GS

ASSY, Rotor (Includes Item 8)

$315.99

$

Usually ships in 2-12 days

0

$477.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, (with O-Ring, p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308HGS

HHC!:, M6 - 1.0 x 140!:EMS

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

ASSY, Holder, Brush

$23.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 189769GS

REGULATOR, Voltage, AVR
(Superseded to 205858GS)

$107.99

$

In Stock, Qty 20+

0

11

Briggs & Stratton 74908GS

SCREW, M5 - 0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23762GS

WASHER, Shakeproof, Ext. #10

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 199119GS

HARNESS, Monitor Load

$40.99

$

Usually ships in 2-12 days

0
