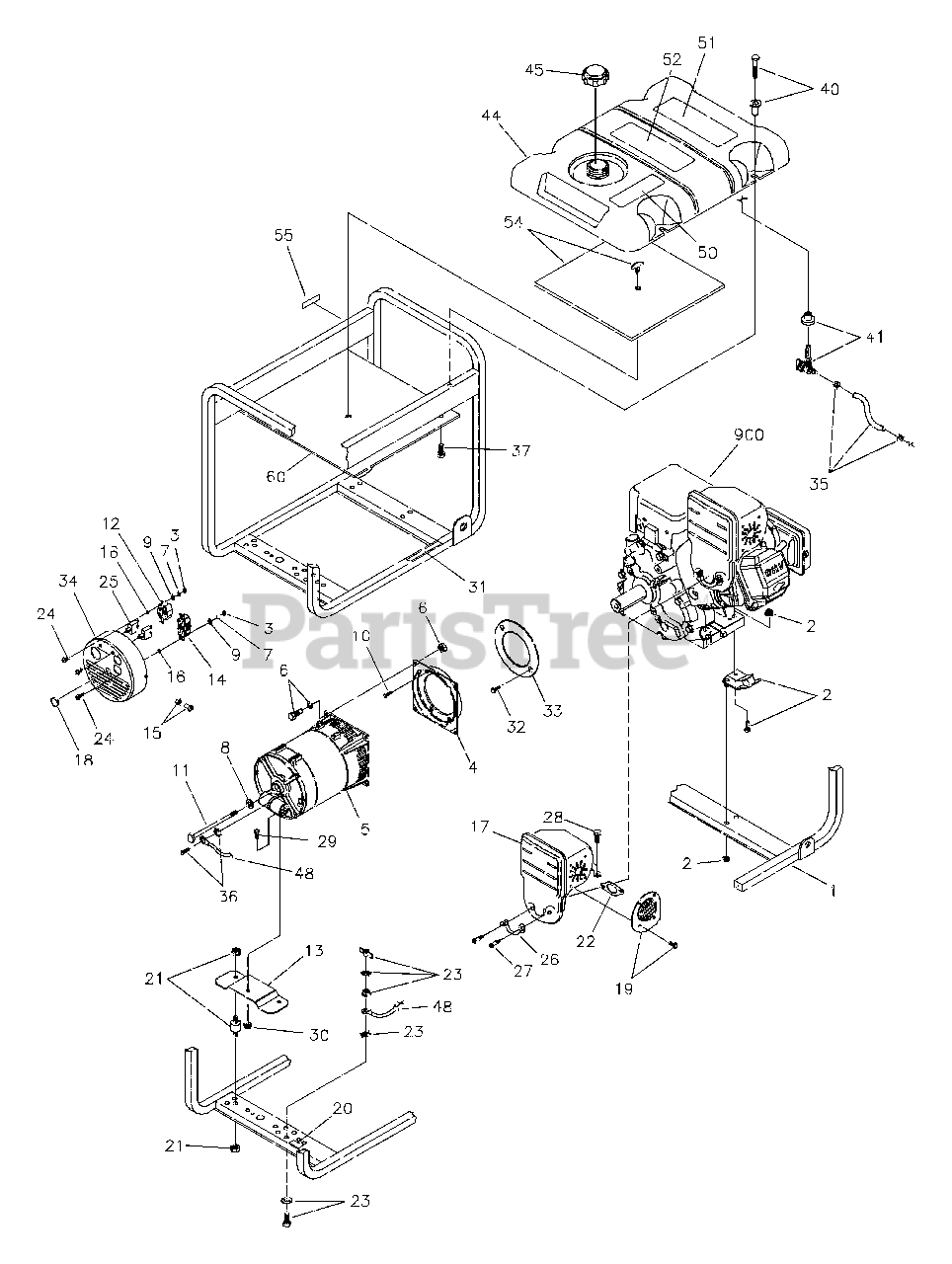

030255-0 - PowerBoss 5,550 Watt Portable Generator Main Unit Parts Diagram

5,550 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B198016GS

CRADLE

$194.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Mount,Vibration, 45°.

$13.99

$

In Stock, only 2 left!

0

3

NUT, M4 - 0.7

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 194364GS

ADAPTER, Engine

$70.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194583GS

KIT, Hardware Mounting, Alt

$19.99

$

Usually ships in 2-12 days

0

7

WASHER, #8 Lock

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, M4 Flat

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 3/4 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 194365GS

STUD, Securing

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B198017

SUPPORT, Alt.

$

$

Currently unavailable

14

Briggs & Stratton 68759GS

OUTLET, 120V, 20A

$24.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 194584GS

KIT, Hardware Terminal Box

$3.99

$

Usually ships in 2-12 days

0

16

WASHER, Shakeproof, Int. #8

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 697252

MUFFLER
(Superseded to 794949)

$119.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 194366GS

CAP

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 392390

SPARK ARRESTER, w/ Screws
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

KIT, Vibration

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 697255

GASKET, Exhaust
(Superseded to 794818)

$8.49

$

In Stock, only 3 left!

0

23

Briggs & Stratton 194154GS

KIT, Grounding Hardware

$11.99

$

Usually ships in 2-12 days

0

24

SCREW, PH M4 x 12

Note: (Purchase locally)

$

$

Not available

25

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 695400

TAB, Locking

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 695399

SCREW, Shoulder

$20.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 695312

SCREW

$3.99

$

Usually ships in 2-12 days

0

29

HHCS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

30

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

HHCS, 5/16" x 3/4" SEMS

Note: (Purchase locally)

$

$

Not available

33

Briggs & Stratton B4260GS

DISK,Air Blocker

$48.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 194587GS

TERMINAL BOX, with Hardware

$75.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194265GS

KIT, Fuel Hose w/ Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 194623GS

KIT, Grounding Hardware

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Hardware Fuel Tank

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 90878GS

CAP, Fuel

$

$

Not available

48

Briggs & Stratton 194622GS

WIRE, Ground Mount

$

$

Currently unavailable

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-off

$9.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 193452GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 198061GS

MANUAL, User's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine, B&S

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061GS

OIL BOTTLE

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 198386GS

KIT, Decal Service

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189208GS

FUEL STABILIZER

Note: Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 188971GS

CORD, Extension
(Superseded to 191895DGS)

Note: Not Illustrated

$231.99

$

Usually ships in 2-12 days

0
