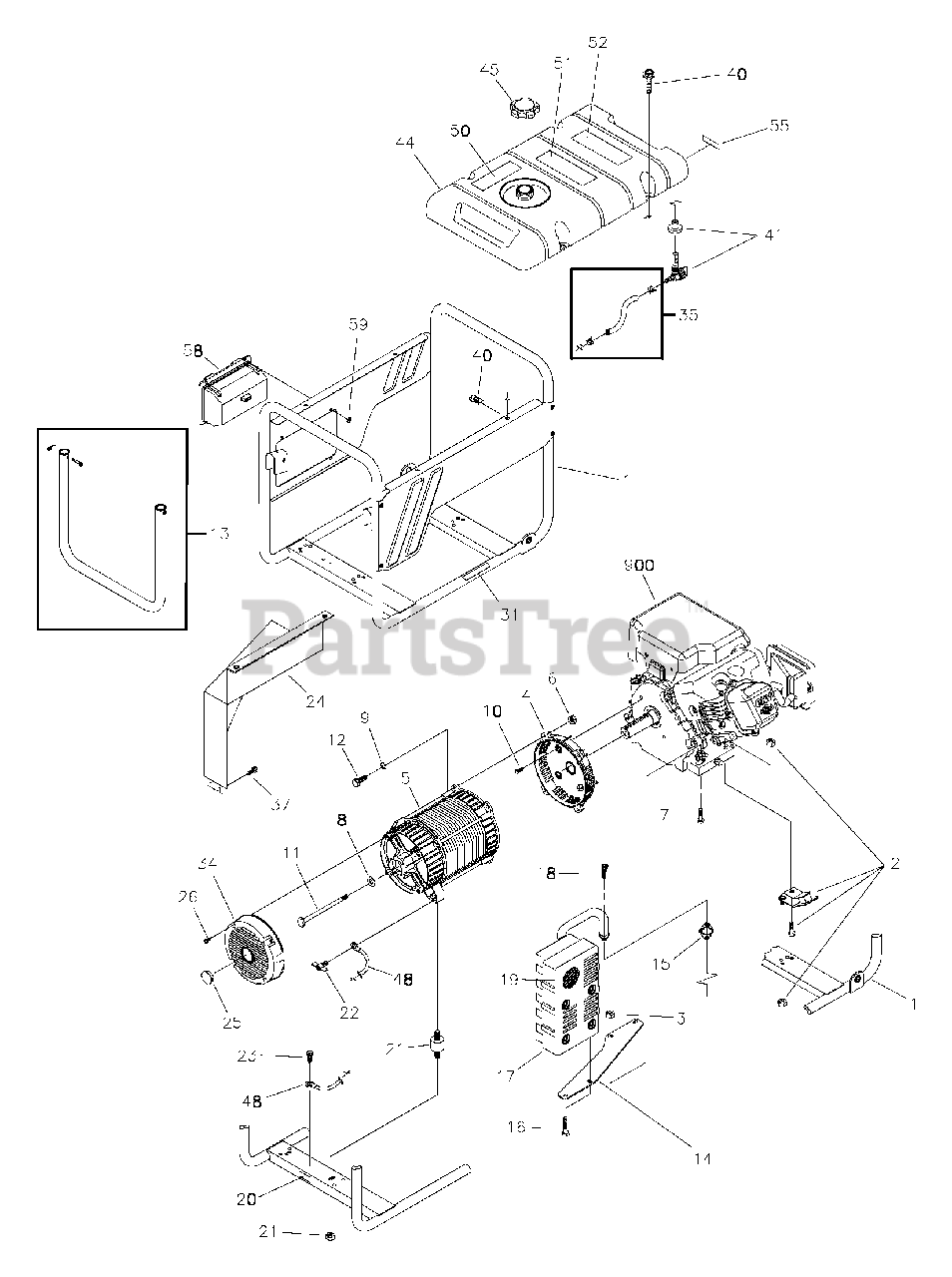

030248-1 - Troy-Bilt 3,550 Watt Portable Generator Main Unit (199041) Parts Diagram

3,550 Watt Portable Generator

Main Unit (199041) Parts Diagram

  • Title

1

Briggs & Stratton 197670GS

ASSY, Cradle

Note: (Includes Items 20 & 31)

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT,Vibration, Mount, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Lock 5/16 M8

Note: (Purchase locally)

$

$

Not available

10

HHCS, 5/16-24 x 3/4

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 194330GS

KIT, Handle

$49.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

16

HHCS, M6 - 1.0 x 12 w/LW

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

SHCS, M6 - 1.0 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 198037GS

SHIELD, Heat

$130.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10,Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194265GS

KIT, Fuel Hose, w/ Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

KIT, Fuel Tank Hrdwr w/U-Clips

$11.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199284GS

U-CLIPS,

Note: (Optional Accessory)

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT,Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 198226GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51, 52 & 55)

$

$

Not available

45

Briggs & Stratton 90878GS

CAP, Fuel

$

$

Not available

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197470GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

NUT, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 197584GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 197474GS

CORDSET, Storm
(Superseded to 206775GS)

Note: Not Illustrated

$186.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198225GS

KIT, Decals

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories Not Included

$3.49

$

In Stock, Qty 20+

0
