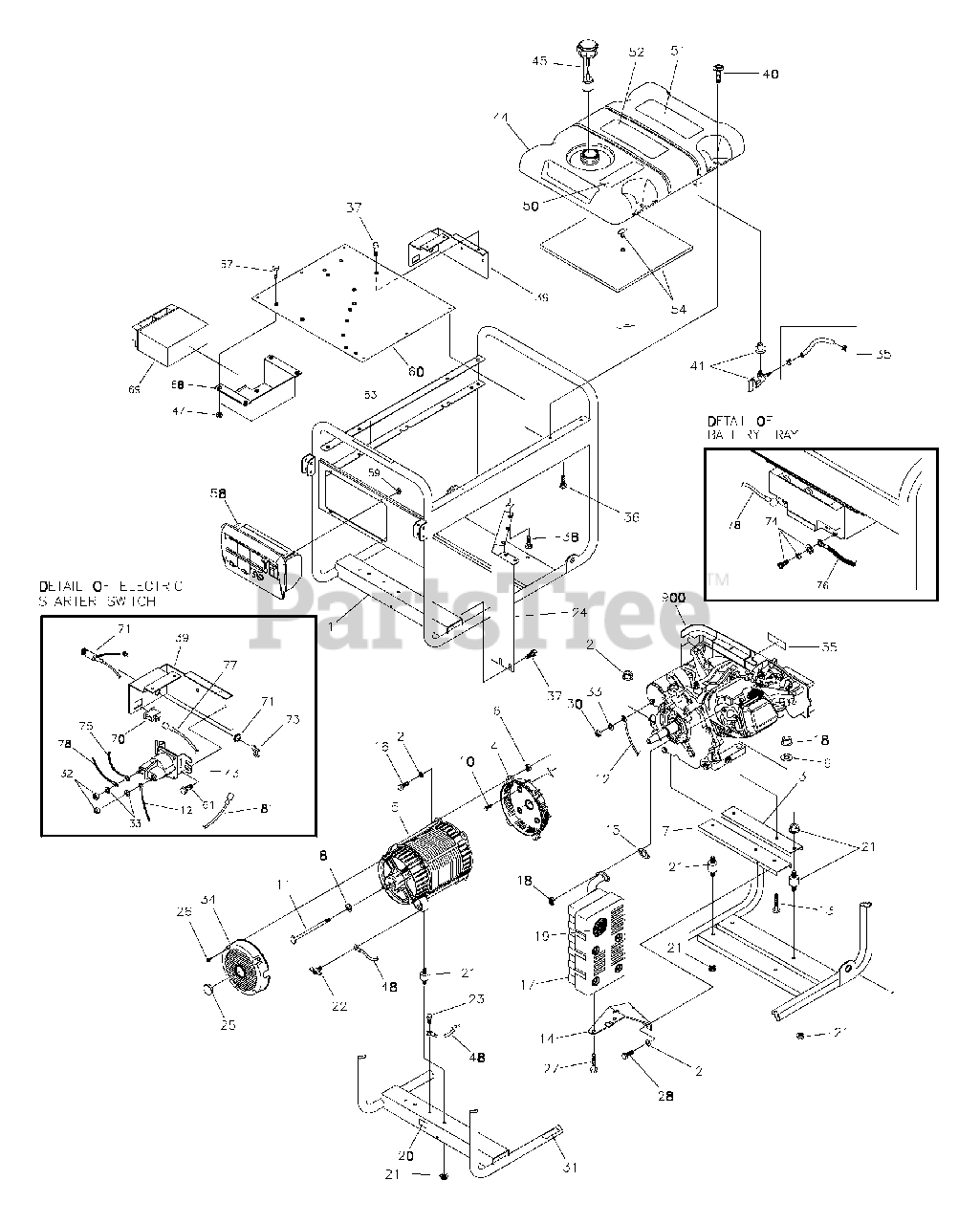

030247-1 - Troy-Bilt 8,000 Watt Portable Generator Main Unit (200870) Parts Diagram

8,000 Watt Portable Generator

Main Unit (200870) Parts Diagram

  • Title

1

Briggs & Stratton B198267GS

KIT, Cradle

$

$

Not available

2

WASHER, Lock 5/16 M8

Note: (Purchase locally)

$

$

Not available

3

Briggs & Stratton B92531GS

BRACKET, Support Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton B190723GS

BRACKET, Support Eng/Muffler

$36.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, 0.34 x 1 x 10

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHC, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 73068GS

HHCS, 5/16 - 24 x 8-7/8

$29.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302LGS

ASSY, Wire, #16, Red

$22.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 45

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 710250

GASKET, Exhaust

$8.49

$

In Stock, only 1 left!

0

16

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton B4206AGS

MUFFLER

$

$

Not available

18

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 198222GS

KIT, Vibration Mount

$18.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

ASSY, Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, M6-1.0 x 12

Note: (Purchase locally)

$

$

Not available

28

HHCS, 5/16 - 18 x 3/4

Note: (Purchase locally)

$

$

Not available

30

NUT, Hex M6 - 1.0

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

NUT, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

33

WASHER, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B196810GS

BRACKET, Starter

$35.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

ASSY, Tank Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Tank Fuel

$41.99

$

In Stock, Qty 20+

0

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

WASHER, Shakeproof, Ext

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 201079GS

DECAL, CO Warning

$14.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

57

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 198494GS

ASSY, Control Panel

Note: (see "Control Panel")

$282.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 195537GS

HEATSHEILD

$72.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4300GS

HHS, 1/4 - 20 x 1/2, Trilobular
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

BATTERY

$172.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 87799GS

SWITCH, Rocker On/Off

$7.49

$

In Stock, Qty 10

0

71

Briggs & Stratton 196626GS

ASSY, Jack, Coax, DC
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG, 1/4, #22/18

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 196627AGS

ASSY, Wire, #13, Red

$4.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

ASSY, Wire, #55 Blk

$

$

Not available

77

Briggs & Stratton 196627BGS

ASSY, Wire, #13B, Red

$4.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

ASSY, Wire, #13 Red

$22.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 196627EGS

ASSY, Wire, #0, Blk

$4.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 200869GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, Qty 9

0

Briggs & Stratton 199384GS

DECAL, Family, CA EVP

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191895DGS

SET, Cord, 30A

Note: Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198051GS

KIT, Decal Service

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 5041D

STABILIZER, Fuel

Note: Optional Accessories

$9.49

$

Usually ships in 2-12 days

0
