030244-01 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit (197933) Parts Diagram

8,000 Watt Portable Generator

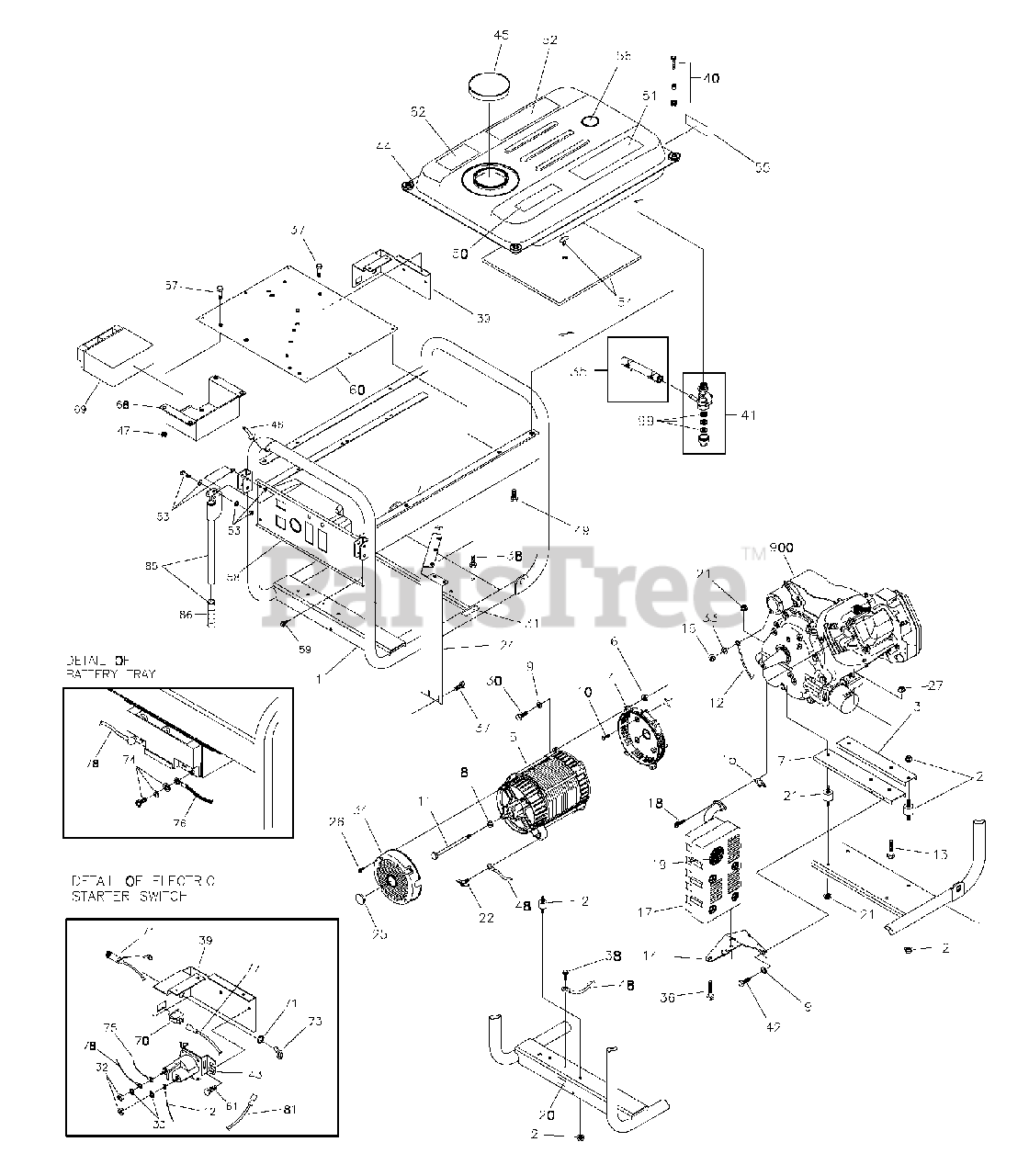

Main Unit (197933) Parts Diagram

  • Title

1

Briggs & Stratton B194898GS

KIT, Cradle

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194155GS

KIT,Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92531GS

BRACKET, Support Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

ADAPTER,Engine

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton ~NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Currently unavailable

6

NUT, Hex M8 - 1.25

Note: (Purchase Locally)

$

$

Not available

7

Briggs & Stratton B92731GS

BRACKET, Support Eng/Muffler

$23.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Lock M8

Note: (Purchase Locally)

$

$

Not available

10

Briggs & Stratton 190274BGS

SBHC, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47481GS

HHCS, 5/16 - 24 x 10.62

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302LGS

ASSY,Wire, #16, Red

$22.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 1.25 x 45

Note: (Purchase Locally)

$

$

Not available

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239GS

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

16

NUT, Hex M6 1.0

Note: (Purchase Locally)

$

$

Not available

17

Briggs & Stratton A7433GS

MUFFLER

$

$

Not available

18

SHCS, M8 - 1.25 x 20

Note: (Purchase Locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 198222GS

KIT,Vibration Mount

$18.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

ASSY, Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

30

HHCS,M8 - 1.25 x 25

Note: (Purchase Locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

NUT, 1/4 - 20

Note: (Purchase Locally)

$

$

Not available

33

WASHER, 1/4 Lock

Note: (Purchase Locally)

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

LINE, Fuel

$10.99

$

In Stock, Qty 20+

0

36

HHCS, M6 1.0 x 12

Note: (Purchase Locally)

$

$

Not available

37

Briggs & Stratton 56893GS

CRIMPTITE,10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B196810GS

BRACKET, Starter

$35.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 198221GS

KIT, Fuel Tank Hardware

$8.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 189133GS

VALVE, Fuel
(Superseded to 310573GS)

$11.99

$

In Stock, Qty 14

0

42

HHCS,5/16 - 18 x 3/4

Note: (Purchase Locally)

$

$

Not available

43

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 198224GS

ASSY,Tank Fuel
(Superseded to 200377GS)

Note: (Includes Items 41, 50, 51, 52 & 55)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP,Tank Fuel

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$

$

Not available

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 192376GS

SCREW, 12-24 x 1/2,Thread Forming

$3.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 192724GS

GAUGE, Fuel

$

$

Not available

57

HHCS,M6 - 1.0 x 12

Note: (Purchase Locally)

$

$

Not available

58

Briggs & Stratton 198238GS

ASSY, Control Panel

Note: (see "Control Panel")

$277.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 198611GS

PPHS, 1/4 - 20 x 0.5

$3.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 195537GS

HEATSHEILD

$72.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4300GS

HHS, 1/4 - 20 x 1/2,Trilobular
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

BATTERY

$172.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 87799GS

SWITCH,Rocker On/Off

$7.49

$

In Stock, Qty 10

0

71

Briggs & Stratton 196626GS

ASSY, Jack, Coax, DC
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG, 1/4, #22/18

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 196627AGS

ASSY,Wire, #13, Red

$4.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

ASSY,Wire, #55 Blk

$

$

Not available

77

Briggs & Stratton 196627BGS

ASSY,Wire, #13B, Red

$4.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

ASSY,Wire, #13 Red

$22.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 196627EGS

ASSY,Wire, #0, Blk

$4.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

$39.99

$

In Stock, Qty 5

0

86

Briggs & Stratton 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 199825GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 195236GS

FUSE (5 Pack)

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 195237GS

CAP, Fuse (4 Pack)

Note: Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191895DGS

SET, Cord

Note: Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 199383GS

DECAL, Family, CA EVP

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198220GS

KIT, Decal Srv

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0
