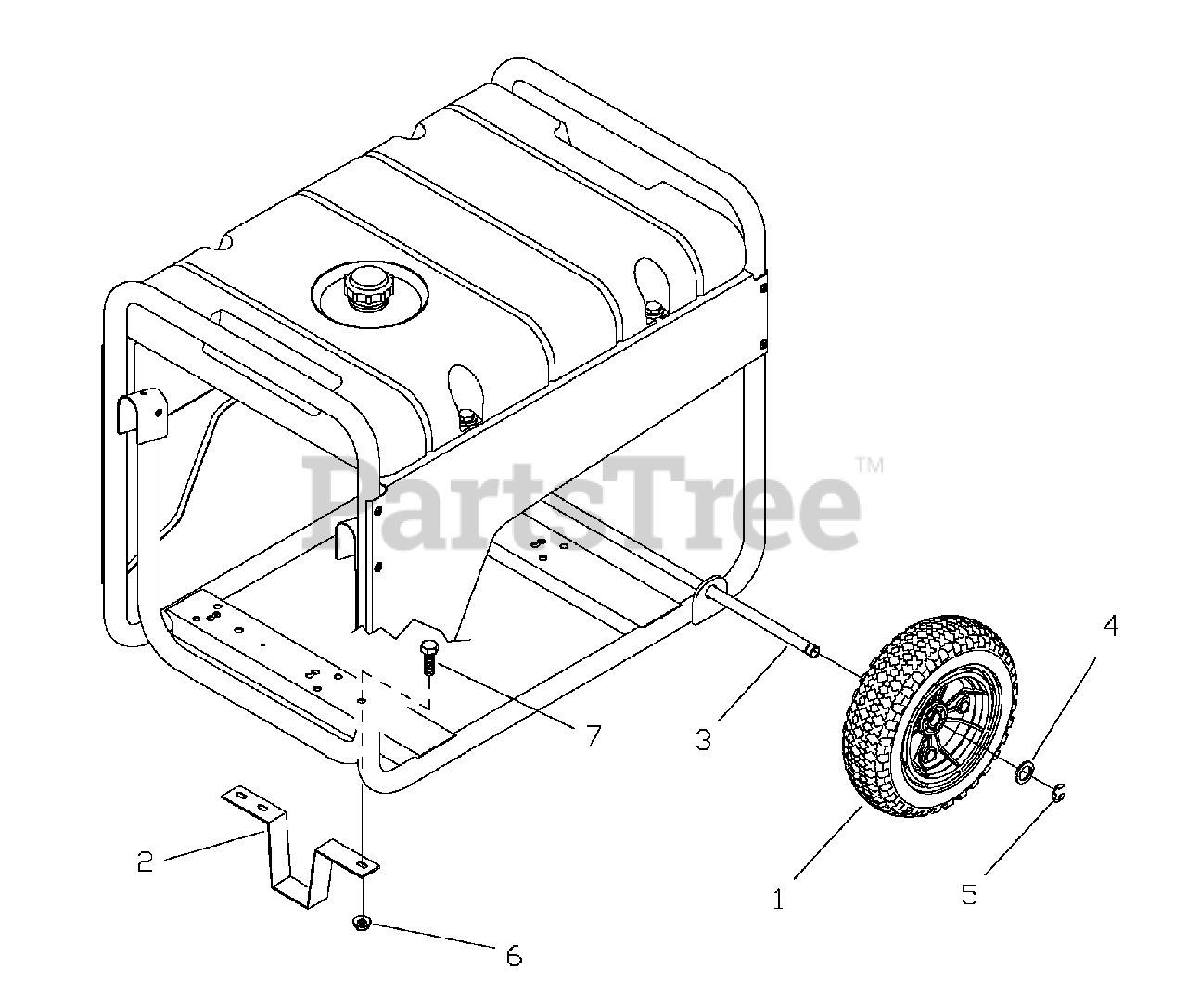

030243-2 - Craftsman 5,600 Watt Portable Generator Wheel Kit (197317) Parts Diagram

5,600 Watt Portable Generator

Wheel Kit (197317) Parts Diagram

  • Title

1

Briggs & Stratton 196517GS

WHEEL
(Superseded to 209322GS)

Note: Roue

$57.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B1764GS

SUPPORT, Wheel Kit

Note: Support, Assemblage Ds Roues

$

$

Not available

3

Briggs & Stratton 191267HGS

AXLE

Note: Essieu

$

$

Not available

4

*

WASHER, 5/8"

Note: Rondelle, 5/8" (Purchase Locally)

$

$

Not available

5

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

Note: Anneau EN E

$4.99

$

In Stock, Qty 15

0

6

Briggs & Stratton 67989GS

NUT, M8 - Flange Serrated

Note: Ecrou, M8 - A Embase Cannele

$3.49

$

In Stock, Qty 9

0

7

*

HHCS, M8 - 1.25 x 16

Note: HHCS, M8 - 1.25 x 16 (Purchase Locally)

$

$

Not available

--

Briggs & Stratton 197594GS

SUBKIT, Hardware

Note: Parts Not Illustrated Subkit, Materiel Articles Non Illustres

$4.49

$

Usually ships in 2-12 days

0
