030243-2 - Craftsman 5,600 Watt Portable Generator Main Unit (208860) Parts Diagram

5,600 Watt Portable Generator

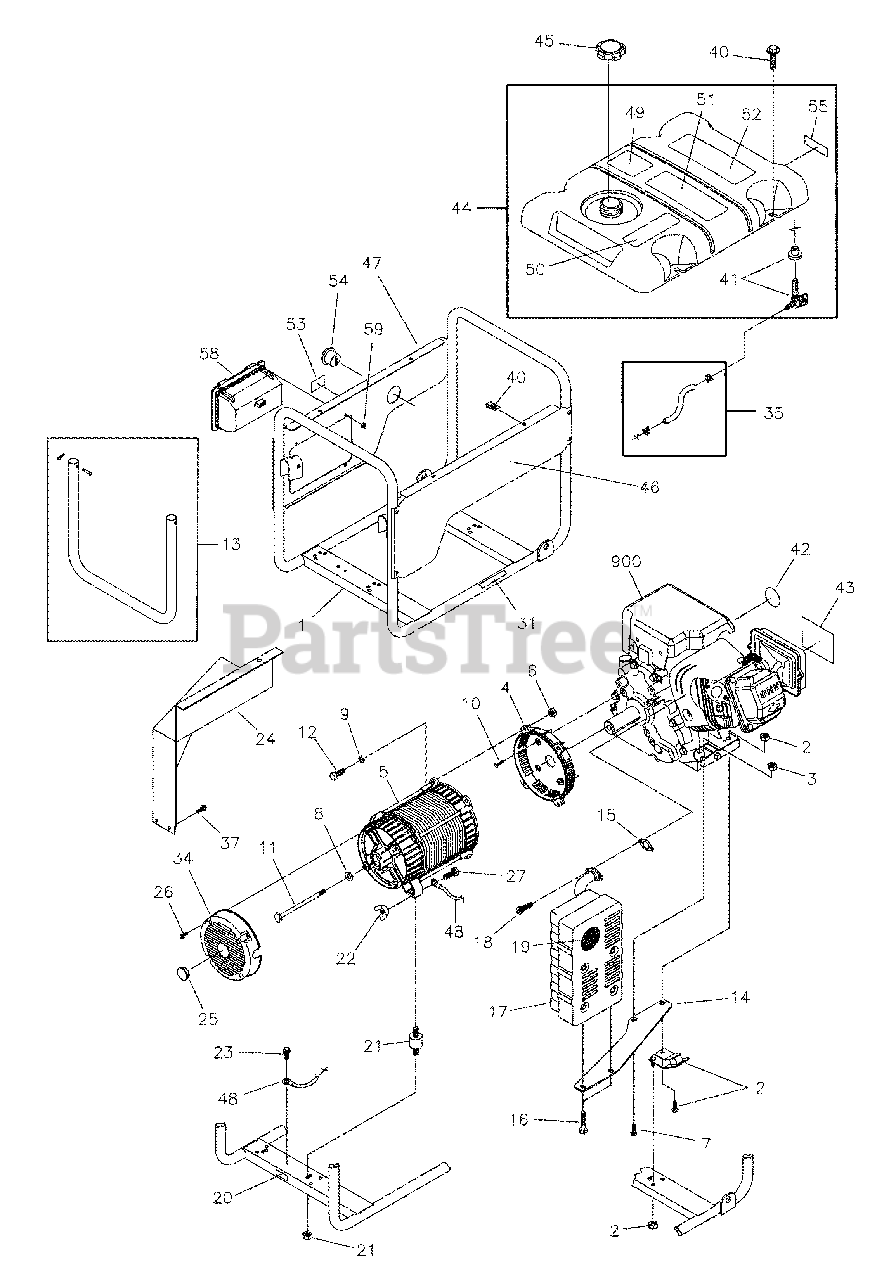

Main Unit (208860) Parts Diagram

  • Title

1

Briggs & Stratton 201885GS

Assy, Cradle

Note: (Includes Items 20, 31 & 53) Ensemble, Berceau Inclut Les Articles 20, 31 & 53

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration, Mount, 45°

Note: Ensemble, Montant Antivibratile, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

Note: Ecrou, M8 a Embase Cannelee

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

Housing, Engine Adapter

Note: BATI, Adaptateur De Moteur

$43.99

$

Usually ships in 2-12 days

0

5

NSP

Assy, Alternator

Note: Alternator Ensemble, Alt Voir Page 27

$

$

Not available

6

*

Nut, Hex M8 - 1.25

Note: Ecrou, Hexagonaux M8 - 1.25 (Purchase locally)

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

Note: TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

Washer, M8 Flat

Note: Rondelle, M8 Plate

$3.49

$

Usually ships in 2-12 days

0

9

*

Washer, Lock 5/16 - M8

Note: Rondelle, Blocage 5/16" - M8 (Purchase locally)

$

$

Not available

10

*

SBHCS, 3/8-16 x 1.0 Lg.

Note: SBHCS, 3/8-16 x 1.0 L. (Purchase locally)

$

$

Not available

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

Note: HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

*

HHCS, M8 - 1.25 x 25

Note: HHCS, M8 - 1.25 x 25 (Purchase locally)

$

$

Not available

13

Briggs & Stratton 198763GS

Kit, Handle

Note: Ensemble, Poignee

$61.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

Bracket, Muffler

Note: Support, Silencieux

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

Gasket, Exhaust

Note: Joint D'Etancheite, Echappement

$7.99

$

In Stock, Qty 8

0

16

*

HHCS, M6 - 1.0 x 12 w/LW

Note: HHCS, M6 - 1.0 x 12 a/LW (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

Muffler

Note: Silencieux

$

$

Not available

18

*

Screw, 5/16 - 18 x 7/8"

Note: VIS, 5/16 - 18 x 7/8" (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

Note: Ecran, Pare-etincelles

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground, Green

Note: Decalque, Mise a La Terre, Vert

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration Mount

Note: Ensemble, Montant Antivibratile

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT

Note: ECROU

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2153GS

Screw, 12 - 14 x 7/8, Self Drill

Note: VIS, 12 - 14 x 7/8", autoperceuse

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 197424GS

Shield, Heat

Note: Ecran, Thermique

$121.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

Note: Tete

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Screw, M5-0.8 x 10, Taptite

Note: VIS, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

27

*

CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

31

Briggs & Stratton 200310GS

Decal, Exhaust Warning

Note: Decalque, avertissement d'echappement

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

Cover,Bearing Carrier with Cap

Note: Couvercle, support de rondelle de butee avec bouchon

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Fuel Hose

Note: cut to fit Ensemble, tuyau de carburant couper selon les besoins

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 56893GS

Crimptite, 10-24 x 1/2

Note: Crimptite, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

Kit, Fuel Tank Hrdwr w/U-Clips

Note: Ensemble, quincaillerie de reservoir d'essence a/attaches en U

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199284GS

U-Clips,

Note: Optional Accessory Attaches EN U, accessoire optionnel

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

Kit, Valve, Fuel Tank

Note: Ensemble, Soupape, Reservoir d'essence

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 200658GS

DECAL

Note: (DÉCALQUE)

$8.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 198509GS

DECAL

Note: (DÉCALQUE)

$12.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 200814GS

Assy, Tank, Fuel

Note: Includes Items 41, 50, 51, 52 & 55 Ensemble, Reservoir, Essence Inclut Les Articles 41, 50, 51, 52 & 55

$

$

Not available

45

Briggs & Stratton 198912GS

Fuel Cap, Fresh Start ™

Note: Bouchon De Reservoir, Fresh Start™

$

$

Not available

46

Briggs & Stratton 198506GS

DECAL

Note: (DÉCALQUE)

$57.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 198507GS

DECAL

Note: (DÉCALQUE)

$17.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

Wire, Ground

Note: Fil, mise a la terre

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

Decal, Gas Fill

Note: Decalque, Remplissage d'essence

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

Decal, Warning, French

Note: Decalque, Avertissement, francais

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

Decal, Start Instructions, French

Note: Decalque, Directives De Demarrage, Francais

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 200311GS

Decal, Neutral Bonded

Note: Decalque, Neutre Raccorde

$8.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 196908GS

Load Monitor

Note: Moniteur De Charge

$192.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Shut-Off, Fuel

Note: Decalque, Arret De Carburant

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 202529GS

Assy, Control Panel

Note: Control Panel ENSEMBLE, tableau de commande voir page 26

$217.99

$

Usually ships in 2-12 days

0

59

*

Nut, Palnut, 3/16"

Note: Ecrou, Autofileteur, 3/16" (Purchase locally)

$

$

Not available

900

Briggs & Stratton 204312-0171-B1

Engine

Note: Moteur

$

$

Currently unavailable

--

Briggs & Stratton 208859GS

Manual, Operator's

Note: Manuel, utilisation Parts Not Illustrated Articles non illustres

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061GS

Bottle, Oil
(Superseded to BB3061GS)

Note: Bouteille, Huile Parts Not Illustrated Articles non illustres

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 5097D

Cartridge, Fresh Fuel

Note: Cartouche, essence fraiche Parts Not Illustrated Articles non illustres

$

$

Not available

--

Briggs & Stratton 206775GS

CORD, Power

Note: Cordon, Storm Parts Not Illustrated Articles non illustres

$186.99

$

Usually ships in 2-12 days

0
