030242-0 - Briggs & Stratton 6,200 Watt Portable Generator Main Unit (196819) Parts Diagram

6,200 Watt Portable Generator

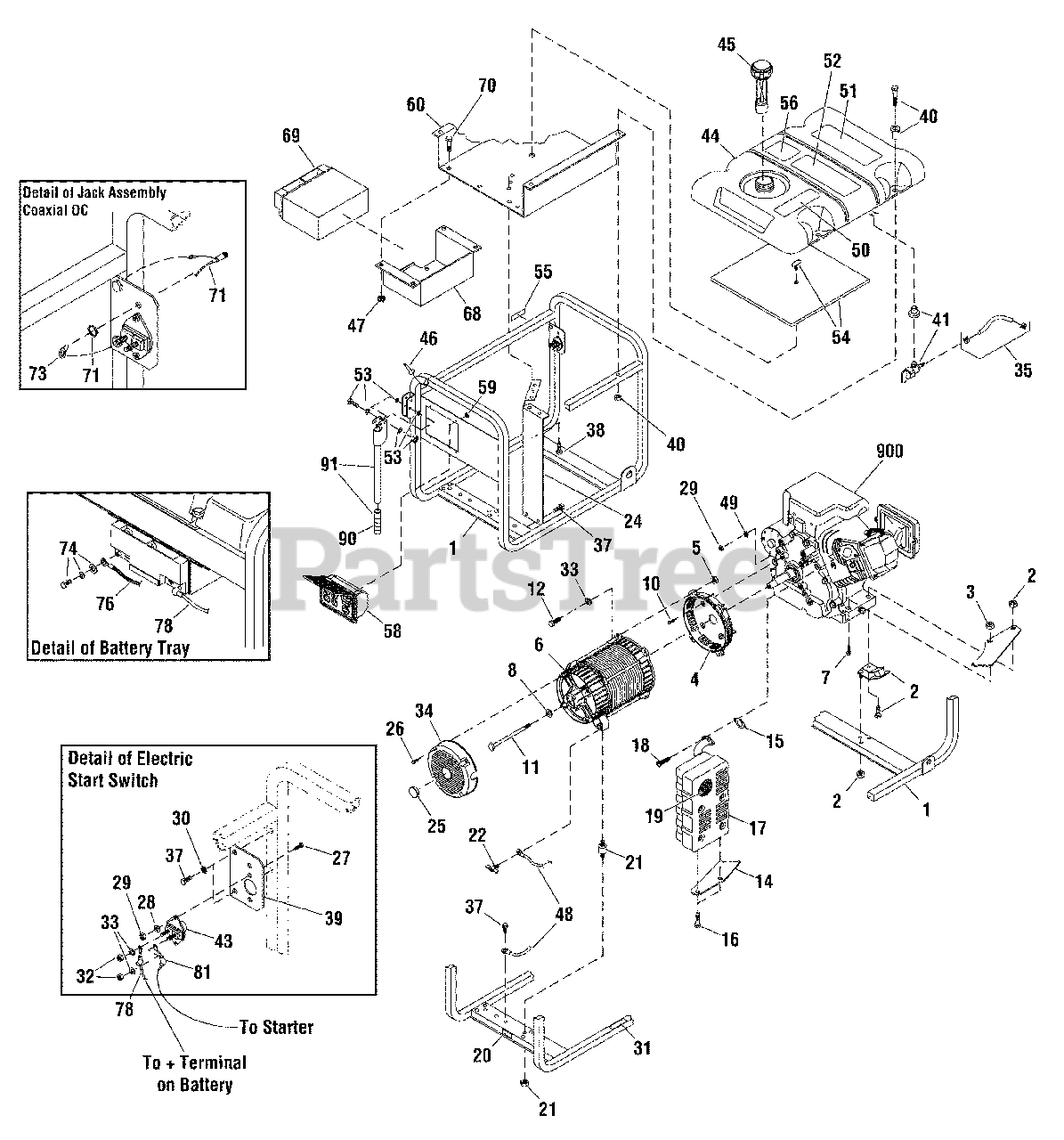

Main Unit (196819) Parts Diagram

  • Title

1

Briggs & Stratton 197464BNGS

CRADLE

Note: Includes Items 20, 31 & 55

$565.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

MOUNT, Vibration

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 18

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$46.99

$

Usually ships in 2-12 days

0

5

-----

* NUT, Hex, M8-1.25

$

$

Not available

6

-----

ALTERNATOR

Note: Alternator

$

$

Not available

7

-----

* TPHMS, M8-1.25 x 35

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274DGS

CAPSCREW, 3/8-16 x 7/8

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

CAPSCREW, Hex Head, 5/16-24 x 7.44

$18.99

$

Usually ships in 2-12 days

0

12

-----

* CAPSCREW, Hex Head, M8 - 1.25 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$8.49

$

In Stock, only 2 left!

0

16

-----

* CAPSCREW, Hex Head, M6-1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

SCREW

$

$

Not available

19

Briggs & Stratton 83083GS

ARRESTOR, Spark

$9.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

MOUNT, Vibration

$12.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 86494GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$91.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE

$3.49

$

Usually ships in 2-12 days

0

27

-----

* CAPSCREW, Hex Head, 1/4 - 20 x 3/4

$

$

Not available

28

-----

* WASHER, Lock, 1/4

$

$

Not available

29

-----

* NUT, 1/4-20

$

$

Not available

30

-----

* WASHER, Shakeproof, Ext. #10

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

32

-----

* NUT, 5/16-24

$

$

Not available

33

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, Rear Bearing

$14.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut To Fit)

$11.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton B2153GS

SCREW, Self Drill, 12-14 x 7/8

$4.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 188987GS

BRACKET

$

$

Not available

40

Briggs & Stratton 195477GS

KIT, Hardware, Fuel Tank

Note: Includes Qty 4

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Fuel Valve

$18.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 77282GS

SWITCH, Starter

$81.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 194217GS

TANK, Fuel

Note: (Includes Items 41, 50, 51, 52 & 56)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$43.99

$

In Stock, Qty 11

0

46

Briggs & Stratton B4135GS

PIN

$

$

Not available

47

Briggs & Stratton 77395GS

* NUT, Flange Lock, M6

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE

$

$

Not available

49

-----

* WASHER, Shakeproof, M6

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL

$25.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 189235GS

DECAL

$20.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 194799GS

DECAL

$12.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 194034GS

KIT, Hardware, Handle

$11.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

INSULATION

$

$

Not available

55

Briggs & Stratton 197798GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191757GS

PANEL, Control

$

$

Not available

59

Briggs & Stratton 189164GS

NUT, Palnut, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 194389GS

HEAT SHIELD
(Superseded to 208564GS)

$141.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$66.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$145.99

$

In Stock, only 2 left!

0

70

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

71

Briggs & Stratton 192531GS

JACK, Coaxial

$

$

Not available

73

Briggs & Stratton 58359GS

LUG

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$9.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

WIRE

$

$

Not available

78

Briggs & Stratton 189302CGS

WIRE

$

$

Not available

81

Briggs & Stratton 189302GGS

WIRE

$

$

Not available

90

Briggs & Stratton 198669GS

GRIP, Handle

$9.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton B193200GS

HANDLE

$42.99

$

In Stock, only 4 left!

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton MS3430

MANUAL, Engine, B&S

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 197523GS

MANUAL, Operator's

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton BB3061GS

OIL

Note: (Not Illustrated)

$15.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 43438GS

PLUG, 120/240V, TL30

Note: (Not Illustrated)

$27.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202180GS

DECAL, Family, ca evap

Note: (Not Illustrated)

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 197787GS

KIT, Decals

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0
