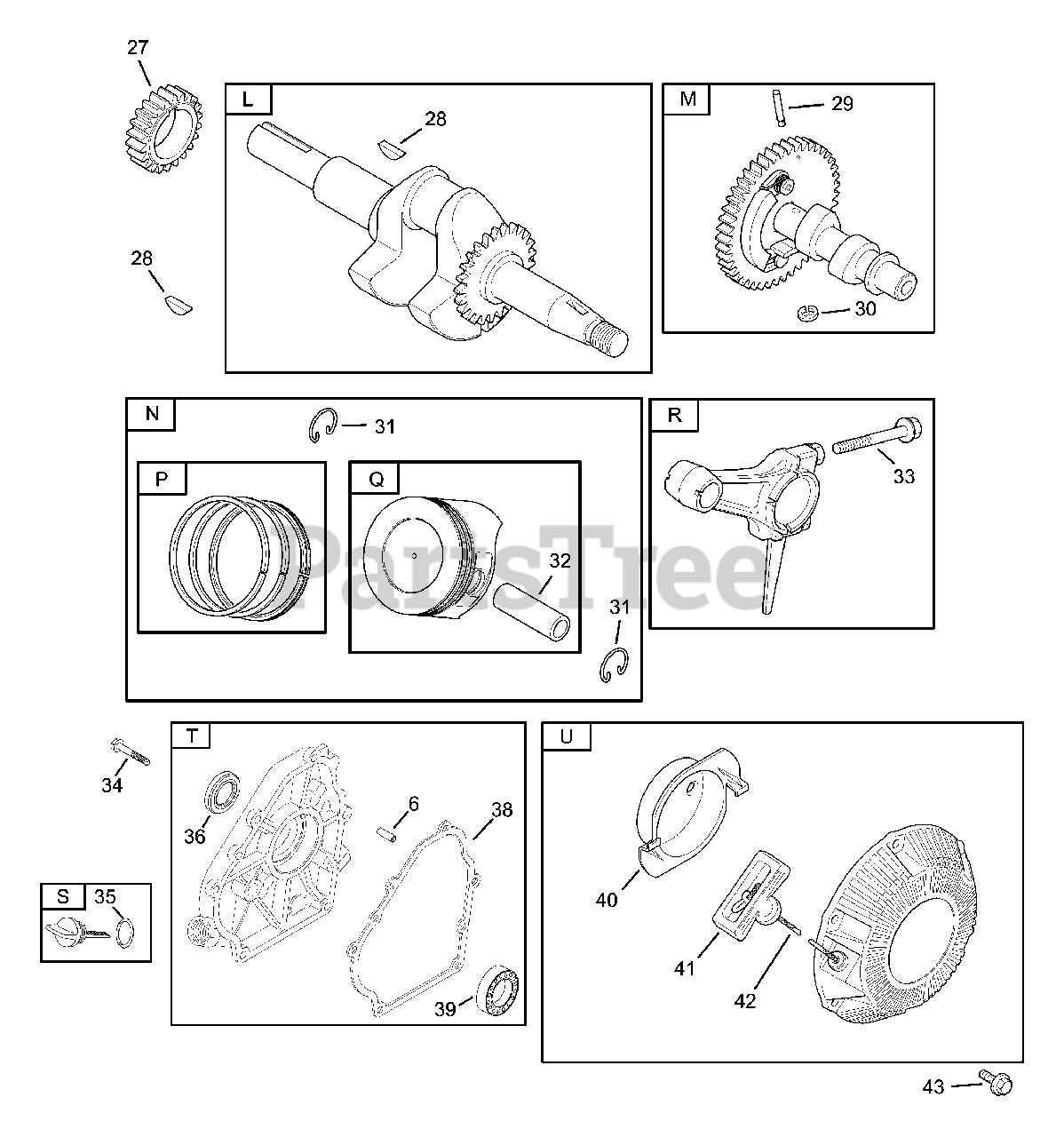

030239-0 - Briggs & Stratton 2,000 Watt Portable Generator Engine (Part 2) Parts Diagram

2,000 Watt Portable Generator

Engine (Part 2) Parts Diagram

  • Title

6

Briggs & Stratton 710005

PIN-LOCATING

$5.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 711754

JET-MAIN

$17.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 711708

GEAR-TIMING

$

$

Currently unavailable

28

Briggs & Stratton 710037

KEY-WOODRUFF

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 711730

PIN-SHAFT

$5.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 710548

RETAINER-E RING

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 711494

LOCK - PISTON PIN

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 711733

PIN - PISTON

$11.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 710041

SCREW

$6.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 710032

SCREW

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 711521

SEAL - O RING

$5.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 197987GS

SEAL-OIL

$20.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 711752

GASKET-CRANKCASE

Note: Included in Gasket Set "V"

$9.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 711175

BEARING-BALL

$26.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 711758

CUP-FLYWHEEL

$26.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 711539

ROPE - STARTER

$10.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 710976

SCREW

$3.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 198004GS

CRANKSHAFT

Note: (Incl 28)

$

$

Currently unavailable

M

Briggs & Stratton 198005GS

CAMSHAFT

Note: (Incl 29, 30)

$

$

Currently unavailable

N

Briggs & Stratton 716061

PISTON ASSY

Note: (STD, Incl P, Q, 31)

$81.99

$

Usually ships in 2-12 days

0

P

Briggs & Stratton 715060

RING SET-STD

$40.99

$

Usually ships in 2-12 days

0

Q

Briggs & Stratton 716061

PISTON ASSY

Note: (STD, Incl 32)

$81.99

$

Usually ships in 2-12 days

0

R

Briggs & Stratton 716059

ROD-CONNECTING-STD

Note: (Incl 33)

$73.99

$

Usually ships in 2-12 days

0

S

Briggs & Stratton 187474GS

DIPSTICK

Note: (Incl 35)

$26.99

$

Usually ships in 2-12 days

0

T

Briggs & Stratton 198007GS

COVER-CRANKCASE

Note: (Incl 6, 36, 38, 39)

$

$

Currently unavailable

U

Briggs & Stratton 716068

STARTER - REWIND

Note: (Incl 40, 41, 42)

$80.99

$

Usually ships in 2-12 days

0
