030236-0 - Briggs & Stratton 3,450 Watt Portable Generator, CSA Compliant Main Unit (200204) Parts Diagram

3,450 Watt Portable Generator, CSA Compliant

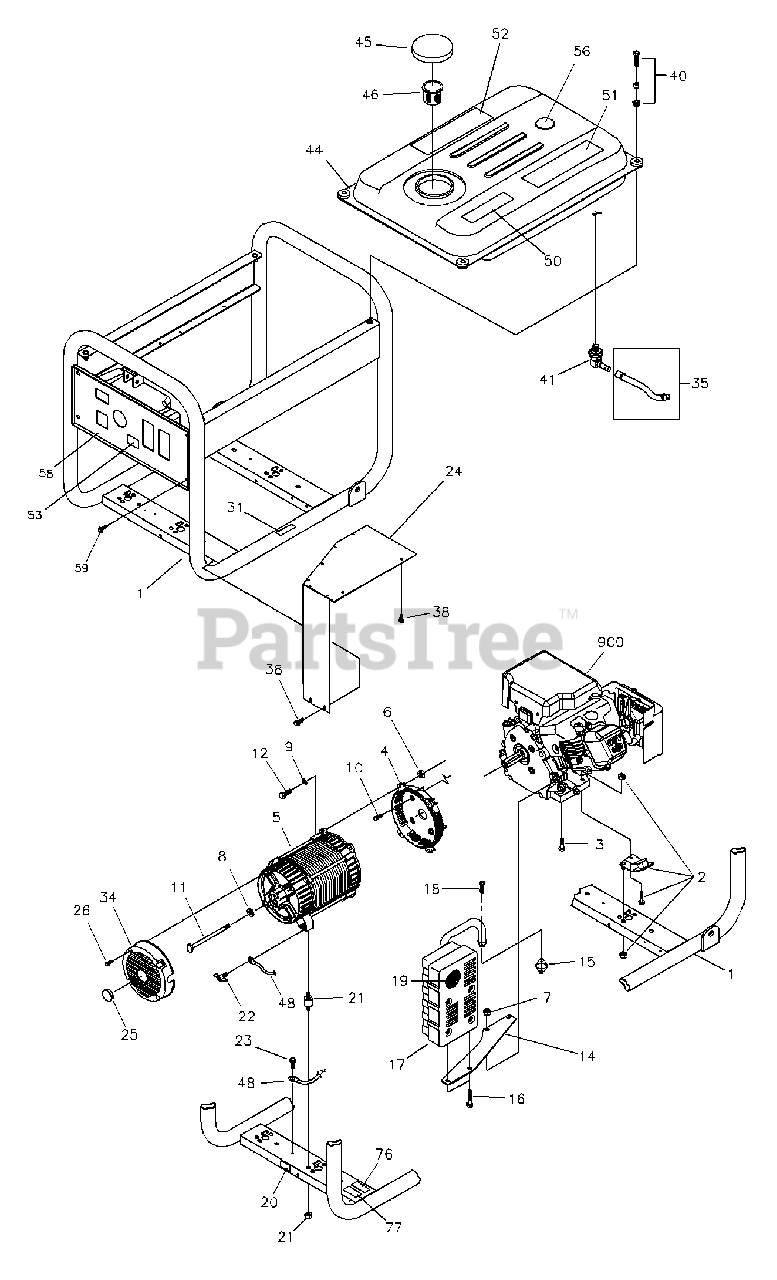

Main Unit (200204) Parts Diagram

  • Title

1

Briggs & Stratton B198124GS

KIT, Cradle

$

$

Not available

2

Briggs & Stratton 194150GS

KIT, Vibration Mount

$13.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 186058AGS

ADAPTER, Engine

$30.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Lock 5/16 - M8

Note: (Purchase locally)

$

$

Not available

10

HHCS, 5/16 -24 x 3/4, Sems

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 24823GS

HHCS, 5/16 - 24 x 7-7/8"

$18.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

16

HHCS, M6 - 1.0 x 12 w/ LW

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 40945GS

SHCS, M6 - 1.0 x 20

$3.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 198218GS

ASSY,Heat Shield

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE,M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL,Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Line, (cut to fit)

$10.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 56893GS

CRIMPTITE,10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 197618GS

KIT,Fuel Tank Hardware

$17.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 195590GS

FITTING, Elbow Tank
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 200539GS

ASSY,Tank Fuel

Note: (Includes Items 41,50, 51 & 52)

$266.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 189135GS

CAP,Tank Fuel

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 197499GS

STRAINER,Tank Fuel

$7.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL,Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 200311GS

DECAL, Neutral Bonded

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 189136GS

GAUGE, Fuel

$18.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 198235GS

ASSY, Control Panel

Note: (see "Control Panel")

$336.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 198611GS

PPHS, 1/4 - 20 x 0.5

$3.49

$

In Stock, only 1 left!

0

76

Briggs & Stratton 195940GS

DECAL, Neutral Grnd, Frnch

$6.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 195459GS

DECAL, Grnd, Neutral

$6.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 200203GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 198536GS

HARNESS,Wire

Note: Not Illustrated

$38.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199383GS

DECAL, Family, CA, EVP

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 189714GS

SET, Cord

Note: Not Illustrated

$158.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198674GS

KIT, Decals Srv

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0
