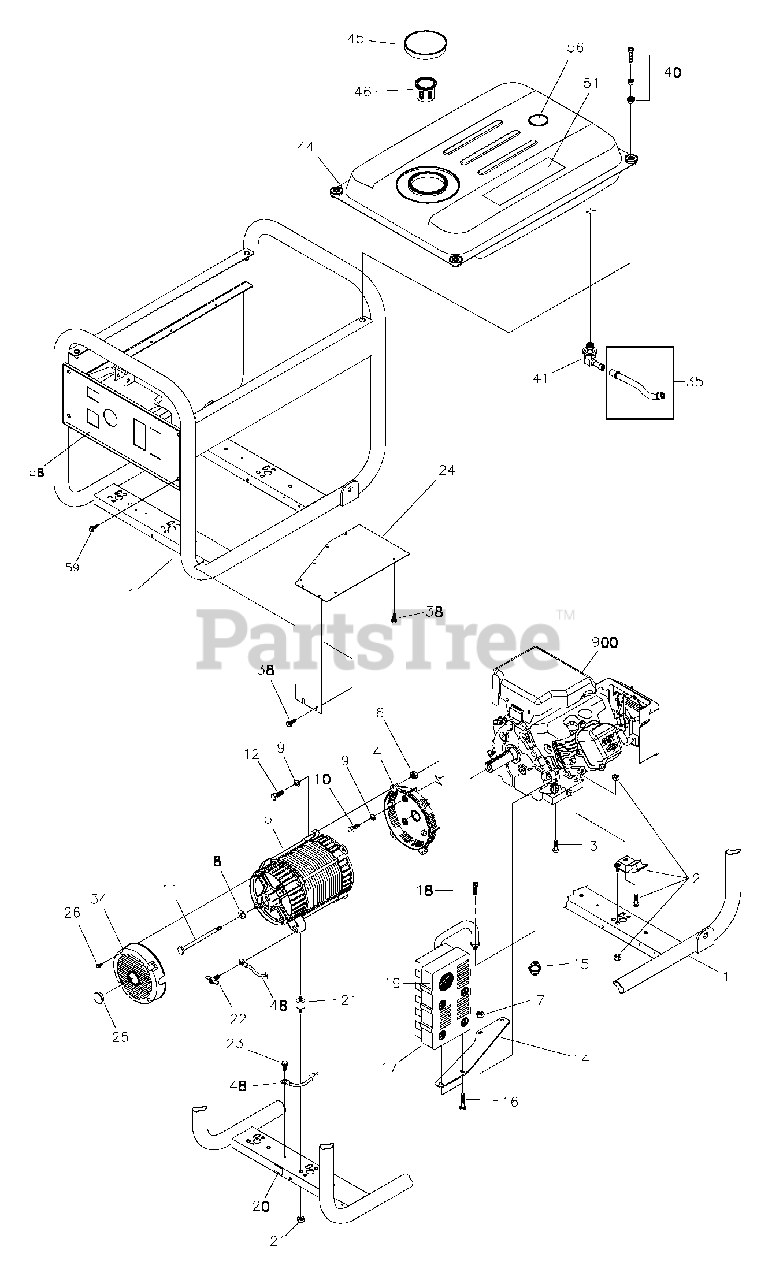

030231-0 - Briggs & Stratton 3,600 Watt Portable Generator Main Unit (199493) Parts Diagram

3,600 Watt Portable Generator

Main Unit (199493) Parts Diagram

  • Title

1

Briggs & Stratton B198491GS

KIT, Cradle
(Superseded to B198124GS)

$

$

Not available

2

Briggs & Stratton 194150GS

KIT, Vibration Mount

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 186058AGS

ADAPTER, Engine

$30.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Lock 5/16 - M8

Note: (Purchase locally)

$

$

Not available

10

HHCS, M8 - 1.25 x 7-7/8

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 24823GS

HHCS, 5/16 - 24 x 7-7/8"

$18.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

16

HHCS, M6 - 1.0 x 12 w/ LW

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 40945GS

SHCS, M6 - 1.0 x 20

$3.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 197601GS

ASSY, Heat Shield

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 197618GS

KIT, Fuel Tank Hardware

$17.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 195590GS

FITTING, Elbow Tank
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 197620GS

ASSY,Tank Fuel

Note: (Includes Items 41, 45, 46, 51 & 56)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP,Tank Fuel

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 197499GS

STRAINER,Tank Fuel

$7.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 197157GS

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 189136GS

GAUGE, Fuel

$18.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 198235GS

ASSY, Control Panel

Note: (see "Control Panel")

$336.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 198611GS

PPHS, 1/4 - 20 x 0.5

$3.49

$

In Stock, only 1 left!

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 199454GS

MANUAL, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6737

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Not available

Briggs & Stratton 43483GS

PLUG, 250V, 20A
(Superseded to 100522GS)

Note: Parts Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200172GS

KIT, Decals Srv

Note: Parts Not Illustrated

$25.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0
