030231-0 - Briggs & Stratton 3,600 Watt Portable Generator Alternator (198252) Parts Diagram

3,600 Watt Portable Generator

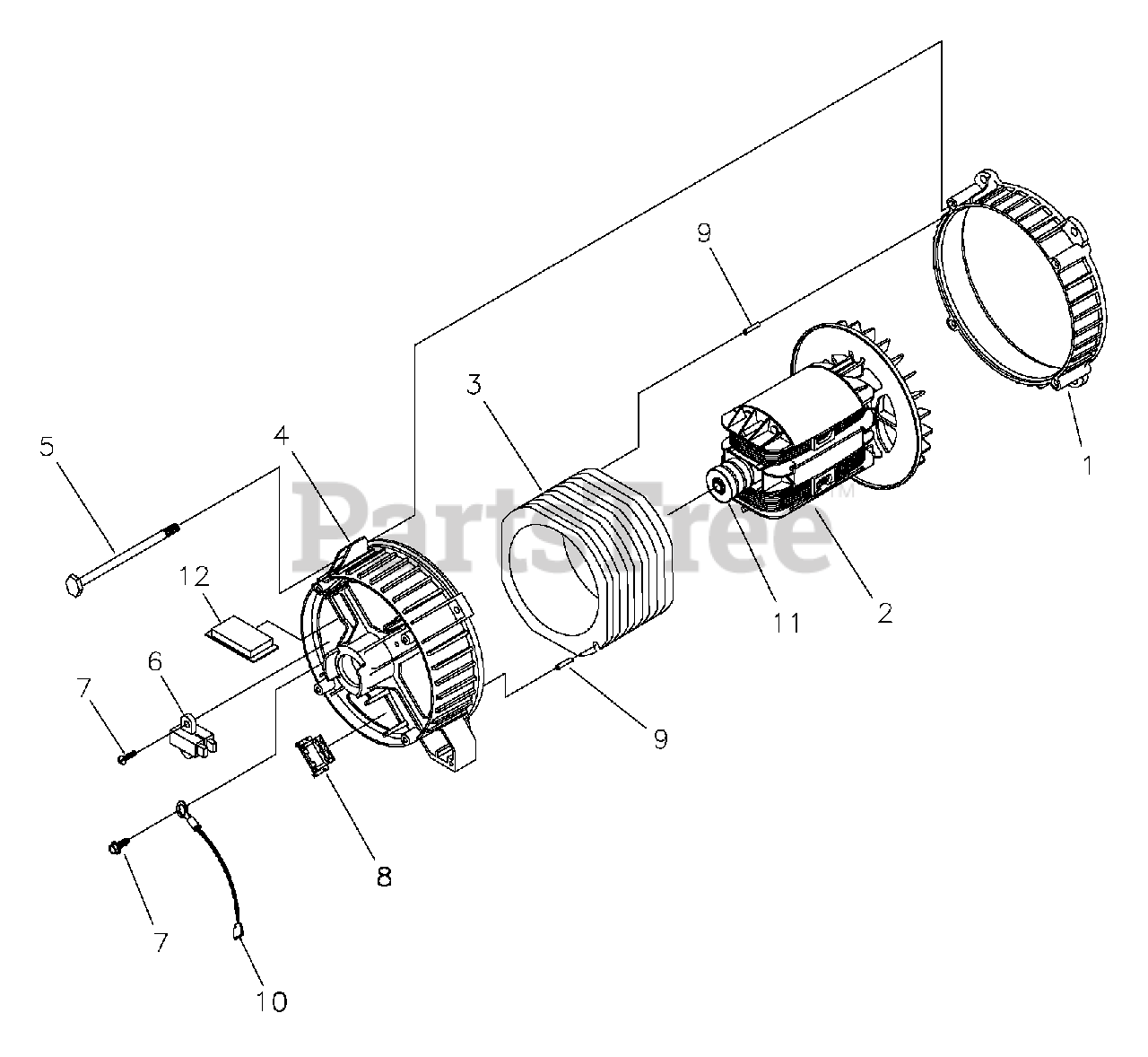

Alternator (198252) Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 198501GS

ASSY, Rotor

Note: (Includes Item 11)

$

$

Not available

3

Briggs & Stratton 198500AGS

STATOR

$409.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 193336GS

RBC, (with O-Ring p/n 189197GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308GS

HHCS, M6 - 1.0 x 115 SEMS

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

ASSY, Holder, Brush

$23.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22694GS

RECEPTACLE, 6 pin

$5.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193428AGS

ASSY,Wire, Ground

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189769GS

BOARD, Circuit, System Control, Micro
(Superseded to 205858GS)

$107.99

$

In Stock, Qty 18

0

Briggs & Stratton 189197GS

O-Ring

$3.99

$

Usually ships in 2-12 days

0
