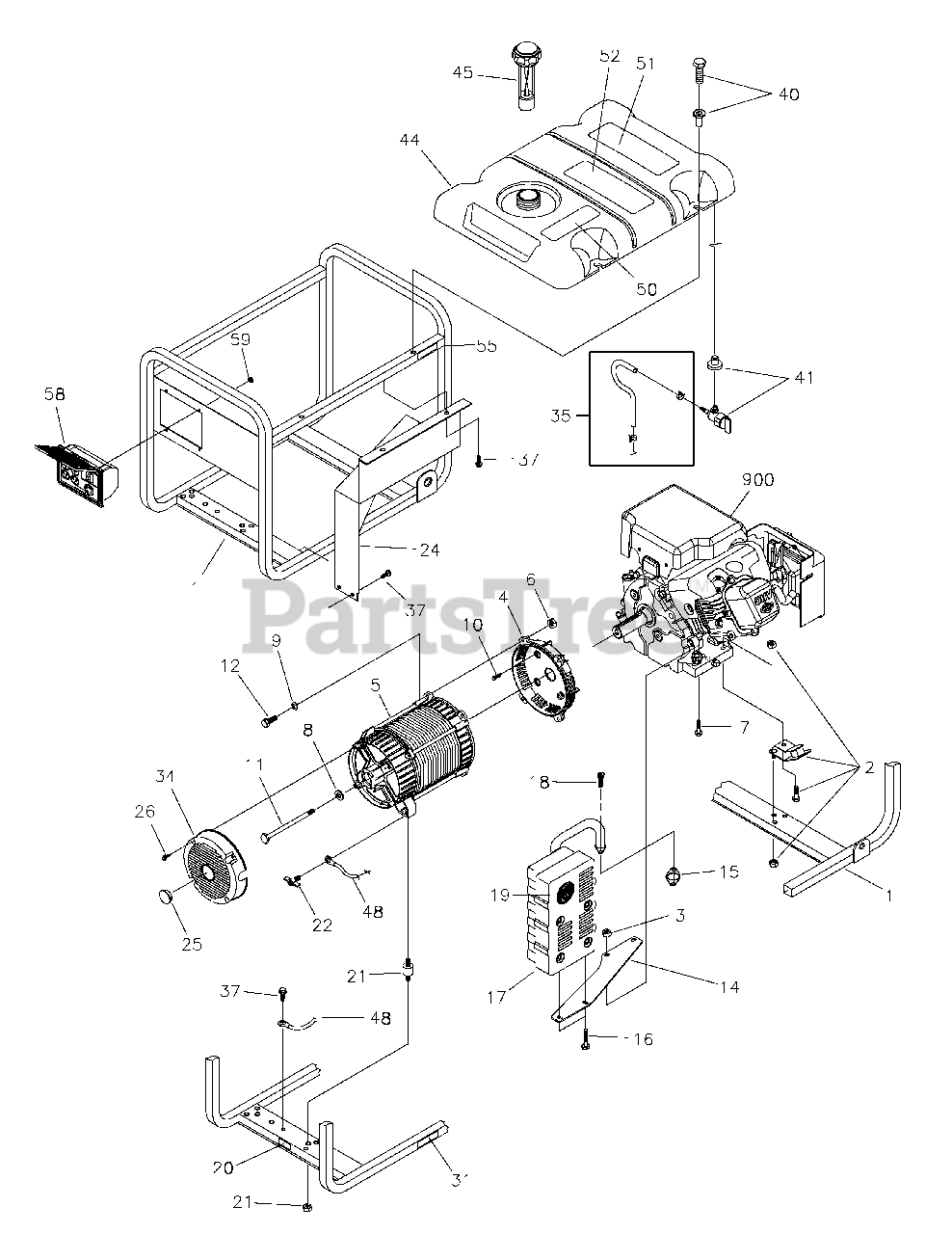

030218-0 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit (196755) Parts Diagram

3,500 Watt Portable Generator

Main Unit (196755) Parts Diagram

  • Title

1

Briggs & Stratton M194779GS

Kit, Cradle

Note: (Includes 20, 31 & 55)

$341.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

Mount, Vibration

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 186058AGS

Housing, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

NSP

Assy, Alternator

Note: See Alternator

$

$

Not available

6

Nut, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Washer, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

10

HHCS, 5/16-24 x 3/4, Sems

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 24823GS

HHCS, 5/16-24 x 7-7/8"

$18.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

13

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 191785GS

Bracket, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

Gasket, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

17

Briggs & Stratton 188301GS

Muffler

$152.99

$

Usually ships in 2-12 days

0

18

SHCS, M6 - 1.0 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration Mount

$11.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 191790GS

Shield, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

Decal, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

Cover, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 195207GS

Kit, Hose Formed

$

$

Not available

37

Briggs & Stratton B2153GS

HHCS, 12 - 14 x 7/8" Self Driller

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

Kit, Fuel Tank Hardware

Note: (Includes Qty 4)

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

Kit, Valve, Tank Fuel Service

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 197553GS

Assy., Tank, Fuel

Note: (Includes Items 41, 50, 51, 52)

$

$

Not available

45

Briggs & Stratton B4363GS

Gauge, Fuel

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 191437GS

Decal, Fuel Level

$17.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 197157GS

Decal, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

Decal, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 196796GS

Assy, Control Panel

$148.99

$

Usually ships in 2-12 days

0

59

Nut, Palnut

Note: (Purchase locally)

$

$

Not available

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 196382GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 43483GS

Plug, 250V, 20Amp
(Superseded to 100522GS)

Note: Parts Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 197554GS

Kit, Decals Service

Note: Parts Not Illustrated

$51.99

$

Usually ships in 2-12 days

0
