030213-0 - Briggs & Stratton ProMax 2,800 Watt Portable Generator Main Unit (196825) Parts Diagram

ProMax 2,800 Watt Portable Generator

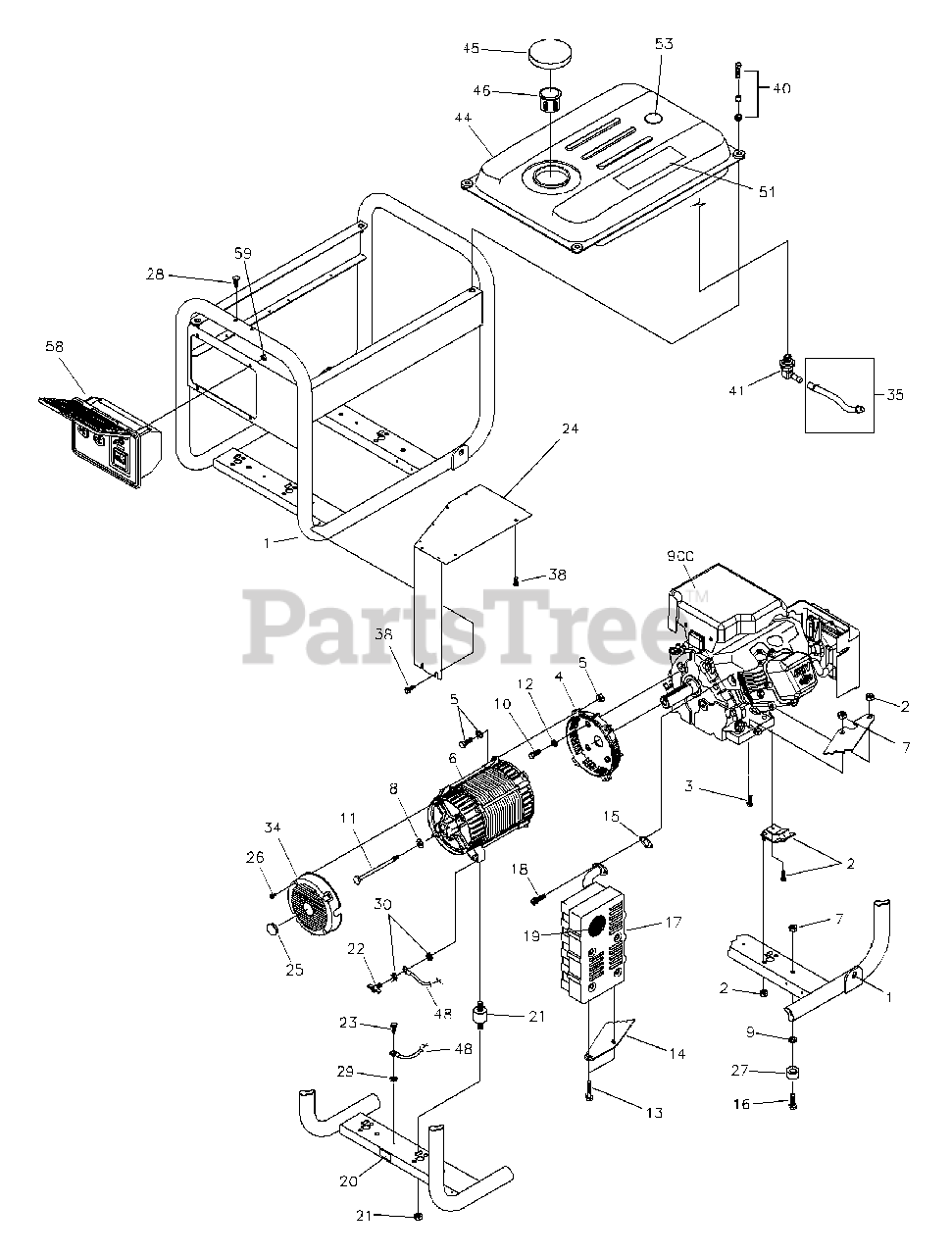

Main Unit (196825) Parts Diagram

  • Title

1

Briggs & Stratton B196749GS

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 197567GS

KIT, Mount,Vibartion 45°

$13.99

$

Usually ships in 2-12 days

0

3

PPHMS, M8 - 1.25 x 35

Note: Purchase Locally

$

$

Not available

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194151GS

KIT, Hrdwr, Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

6

NSP

ASSY,Alternator

Note: See Alternator"

$

$

Not available

7

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 193588GS

SPACER

$5.99

$

Usually ships in 2-12 days

0

10

HHCS, M8 - 1.25 x 20

Note: Purchase Locally

$

$

Not available

11

Briggs & Stratton 99383GS

HHCS, 5/16-24 x 7-3/8

$16.99

$

In Stock, only 1 left!

0

12

WASHER, Lock, M8 5/16

Note: Purchase Locally

$

$

Not available

13

Briggs & Stratton 66476GS

HHCS, M6 - 1.0 x 12 w/ LW

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

16

HHCS, M8 - 1.25 x 30

Note: Purchase Locally

$

$

Not available

17

Briggs & Stratton 88301GS

MUFFLER

$

$

Currently unavailable

18

SHCS, M6 - 1.0 x 20

Note: Purchase Locally

$

$

Not available

19

Briggs & Stratton 3083GS

SCREEN, Spark Arrest

$

$

Currently unavailable

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 197601GS

SHIELD, Heat

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 87841GS

MOUNT,Vibration

$3.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton B1797GS

CLIP,Tree

$3.99

$

In Stock, only 1 left!

0

29

WASHER, Shakeproof Ext. #10

Note: Purchase Locally

$

$

Not available

30

WASHER, Shakeproof Ext. M6 - 1/4

Note: Purchase Locally

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 197619GS

KIT, Fuel Hose w/ Clamps

$13.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 197618GS

KIT, Fuel Tank Hardware

$17.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 195590GS

FITTING, Elbow Tank
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 197620GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 45, 46, 51 & 53)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Fuel,Vented

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 197499GS

STRAINER,Tank Fuel

$7.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 197157GS

DECAL,Warning

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189136GS

GAUGE, Fuel

$18.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 195782GS

ASSY, Control Panel

Note: See "Control Panel"

$

$

Currently unavailable

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS6737

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 196761GS

MANUAL, Owners, CHN

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 196978GS

MANUAL, Owners, English

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197621GS

KIT, Decals Service

Note: Not Illustrated

$47.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 190356GS

HARNESS,Wire, Power Gen

Note: Not Illustrated

$41.99

$

Usually ships in 2-12 days

0
