030212-0 - Briggs & Stratton ProMax 2,500 Watt Portable Generator Main Unit (196966) Parts Diagram

ProMax 2,500 Watt Portable Generator

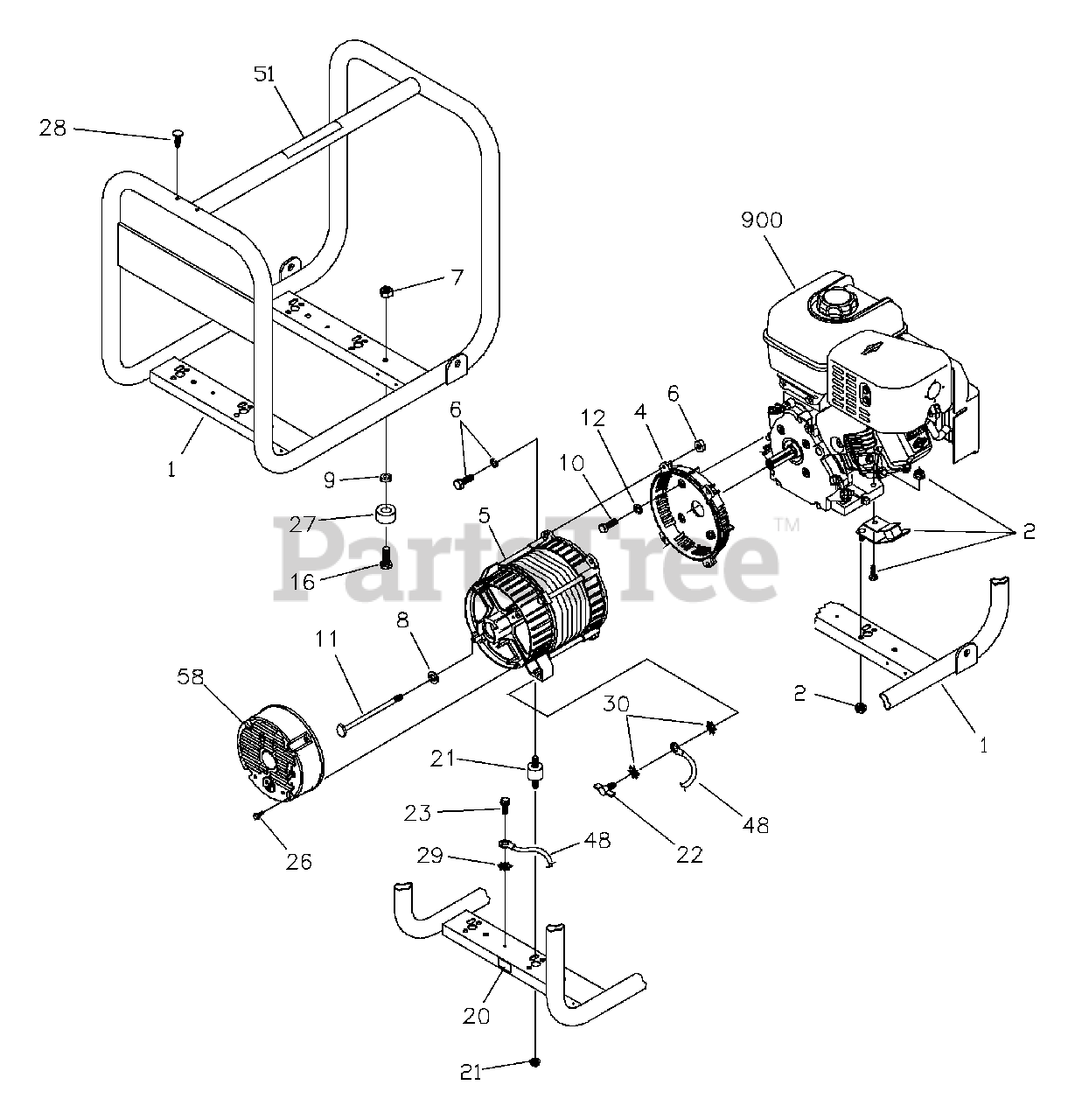

Main Unit (196966) Parts Diagram

  • Title

1

Briggs & Stratton B196757GS

ASSY, Cradle

$

$

Currently unavailable

2

Briggs & Stratton 197567GS

KIT,Vibration Mount

$13.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adaptor

$30.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: See Alternator

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 193588GS

SPACER

$5.99

$

Usually ships in 2-12 days

0

10

HHCS, M8 - 1.25 x 20

Note: Purchase Locally

$

$

Not available

11

Briggs & Stratton 187365GGS

HHCS, 5/16" - 24 x 6.85

$

$

Currently unavailable

12

WASHER, Lock, 5/16 - M8

Note: Purchase Locally

$

$

Not available

16

HHCS, M8 - 1.25 x 30

Note: Purchase Locally

$

$

Not available

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 66849AGS

TAPTITE, M5 .8 x 20mm

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 87841GS

MOUNT,Vibration

$3.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton B1797GS

CLIP,Tree

$3.99

$

In Stock, only 1 left!

0

29

WASHER, Shakeproof, Ext. #10

Note: Purchase Locally

$

$

Not available

30

WASHER, Shakeproof Ext. M6 - 1/4

Note: Purchase Locally

$

$

Not available

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 197157GS

DECAL,Warning

$17.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 195780GS

ASSY, Control Panel

Note: See "Control Panel"

$

$

Currently unavailable

900

ENGINE Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 196761GS

MANUAL, Owners, CHN

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 196978GS

MANUAL, Owners, English

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6737

MANUAL, Engine, B&S

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 197604GS

KIT, Decal Srv

Note: Not Illustrated

$27.99

$

Usually ships in 2-12 days

0
