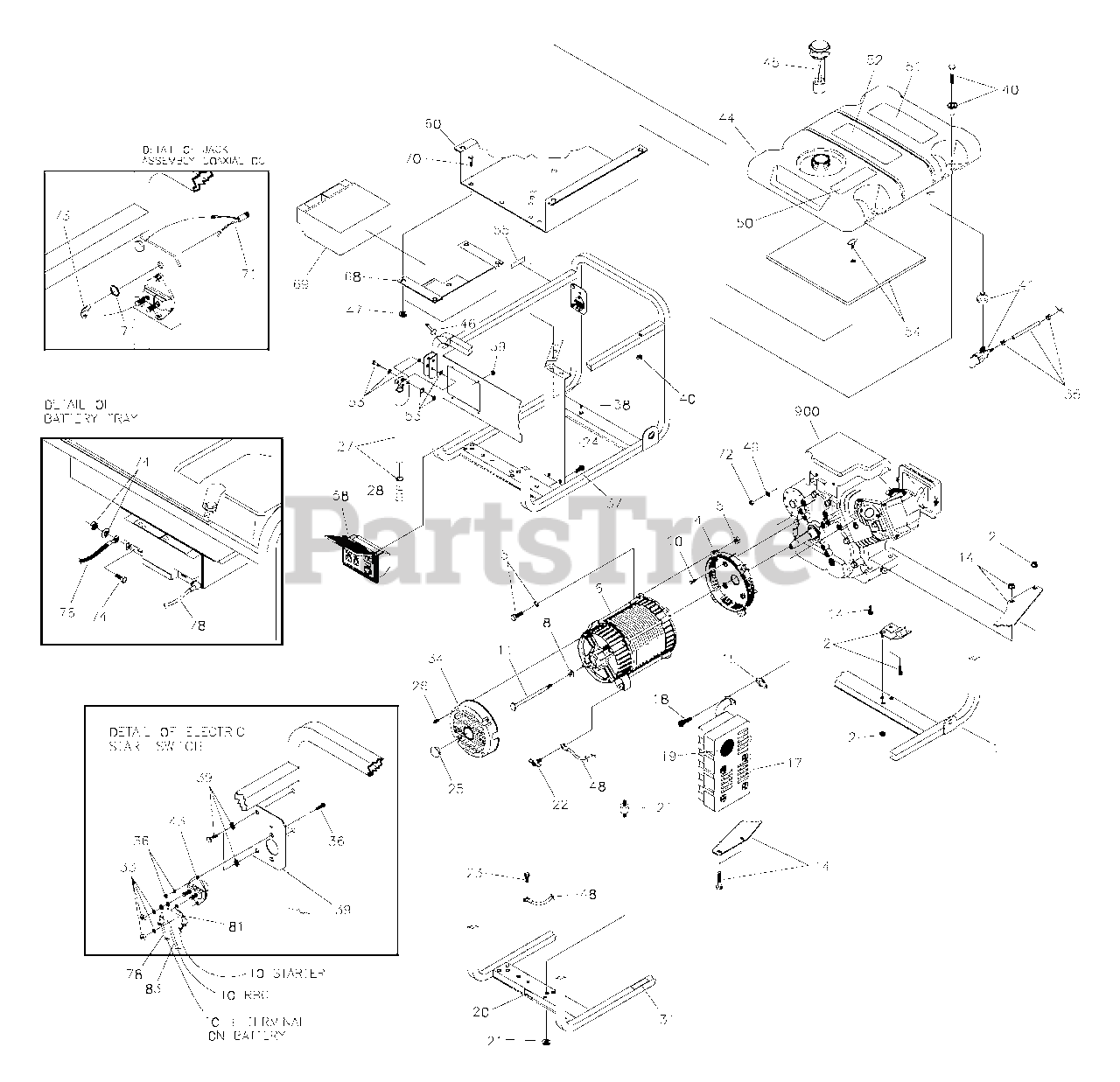

030211-0 - Briggs & Stratton 6,200 Watt Portable Generator Main Unit (195532) Parts Diagram

6,200 Watt Portable Generator

Main Unit (195532) Parts Diagram

  • Title

1

Briggs & Stratton M190305GS

CRADLE
(Superseded to 197464BNGS)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT,Vibration Mount, 45°.

$13.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194151GS

KIT, Adptr, Hdwr Mounting

$22.99

$

Usually ships in 2-12 days

0

6

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194729GS

KIT, Muffler & Brct Hardware

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

SCREW, 5/16 - 18 x 3/4"

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration, Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4 Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B193200GS

ASSY, Handle

Note: (Includes Item 28)

$39.99

$

In Stock, Qty 5

0

28

Briggs & Stratton 189718GS

GRIP, Handle
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194441GS

KIT, Contact Starter Hardware

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194265GS

KIT, Fuel Hose, with Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 194440GS

KIT, Starter Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 194439GS

KIT, Mounting Plate Switch

$11.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 195477GS

KIT, Hardware Tank Fuel

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve,Tank

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

In Stock, only 2 left!

0

44

Briggs & Stratton 194217GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton B4135GS

PIN, with Lanyard

$

$

Not available

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

-----

WASHER, M6 Shakeproof

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Handle Fold-down Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191435GS

DECAL, Fuel Shut-off

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191757GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

-----

NUT, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

60

Briggs & Stratton 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 2 left!

0

70

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

71

Briggs & Stratton 192531GS

ASSY, Jack, DC

$

$

Not available

72

-----

NUT, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

73

Briggs & Stratton 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

ASSY,Wire, #55

$

$

Not available

78

Briggs & Stratton 189302CGS

ASSY,Wire, #13

$

$

Not available

81

Briggs & Stratton 189302GGS

ASSY,Wire, #16

$18.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 192355GS

ASSY,Wire, #13

$32.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 195529GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, Qty 5

0

Briggs & Stratton 195578GS

KIT, Decals Service

Note: Not Illustrated

$89.99

$

Usually ships in 2-12 days

0
