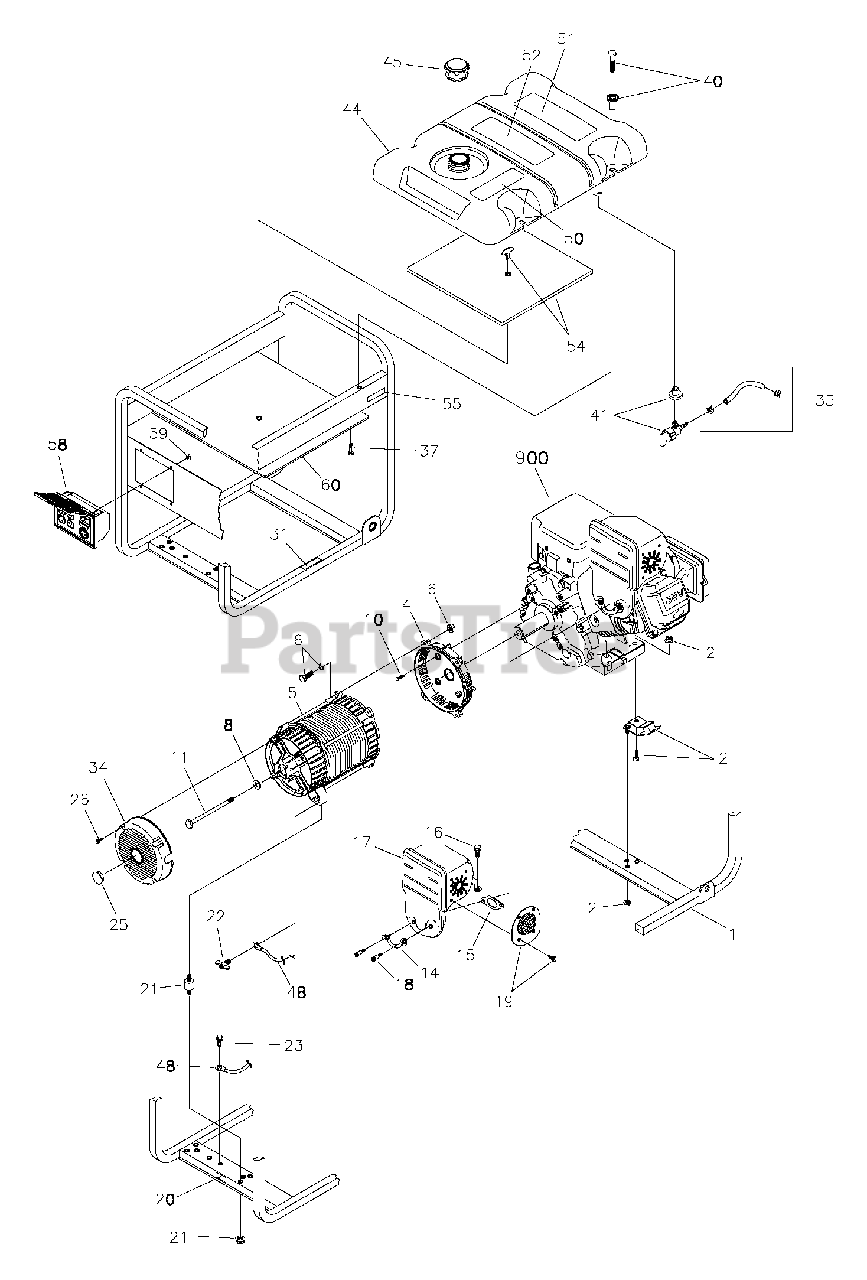

030209-0 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (195562) Parts Diagram

5,500 Watt Portable Generator

Main Unit (195562) Parts Diagram

  • Title

1

Briggs & Stratton M195451GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT,Vibration Mount 45°.

$13.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7-7/16

$17.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 695400

TAB, Locking

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697255

GASKET, Exhaust
(Superseded to 794818)

$8.49

$

In Stock, only 4 left!

0

16

Briggs & Stratton 695312

SCREW

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 697252

MUFFLER
(Superseded to 794949)

$119.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 695399

SCREW, Shoulder

$20.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 392390

SPARK ARRESTER, with Screw
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW,Wing, M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10,Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194265GS

KIT, Fuel Hose w/ Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve,Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 90878GS

CAP, Fuel

$

$

Not available

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191435GS

DECAL, Fuel Shut-off

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 190355GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

-----

NUT, Palnut, 3/16"

Note: (Obtain locally)

$

$

Not available

60

Briggs & Stratton 193452GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195447GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 195574GS

KIT, Decals, Service

Note: Not Illustrated

$31.99

$

Usually ships in 2-12 days

0
