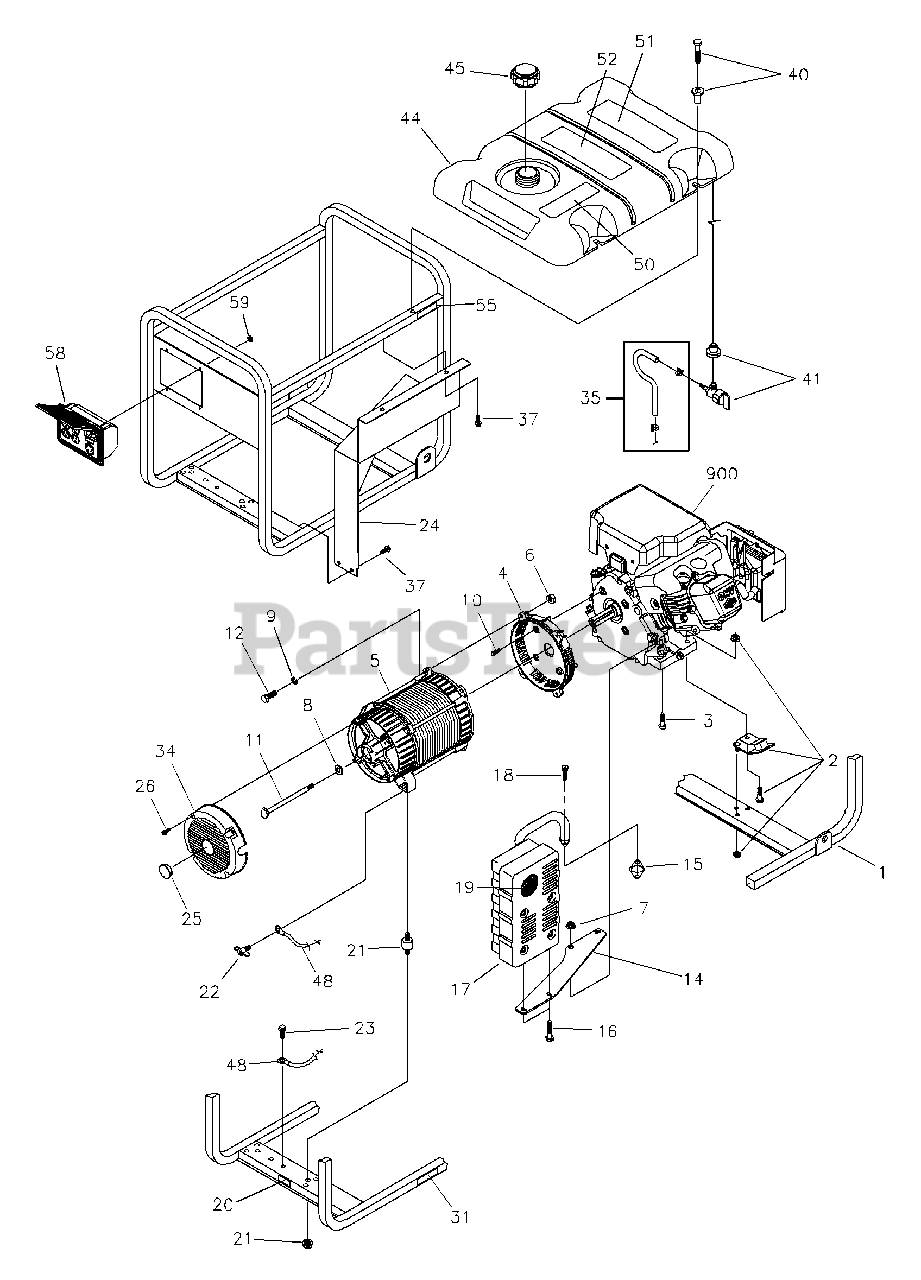

030208-1 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit (199471) Parts Diagram

3,500 Watt Portable Generator

Main Unit (199471) Parts Diagram

  • Title

1

Briggs & Stratton M194779GS

CRADLE

$341.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount

$13.99

$

Usually ships in 2-12 days

0

3

-----

TPHMS, M8 1.25 x 35

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

-----

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

-----

WASHER, Lock M8

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 86307GS

HHCS, 5/16-24 x 3/4, SEMS

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 24823GS

HHCS, 5/16-24 x 7-7/8" Lg

$18.99

$

Usually ships in 2-12 days

0

12

-----

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

16

-----

HHCS, M6 1.0 x 12 with LW

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

-----

SHCS, M6 - 1.0 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 191790GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10 Lg.

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 195207GS

KIT, Fuel Hose with Clamp

$

$

Not available

37

Briggs & Stratton B2153GS

HHCS, 12 - 14 x 7/8" Self Driller

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

Note: (Includes Qty of 4)

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve,Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193645GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 200095GS

CAP, Fuel
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191743AGS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

-----

NUT, Palut, 3/16"

Note: (Purchase locally)

$

$

Not available

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 199051GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS3430

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton BB3061GS

OIL BOTTLE

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195576GS

KIT, Decals, Service

Note: Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199384GS

DECAL, Family, CA EVP, 2006

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0
