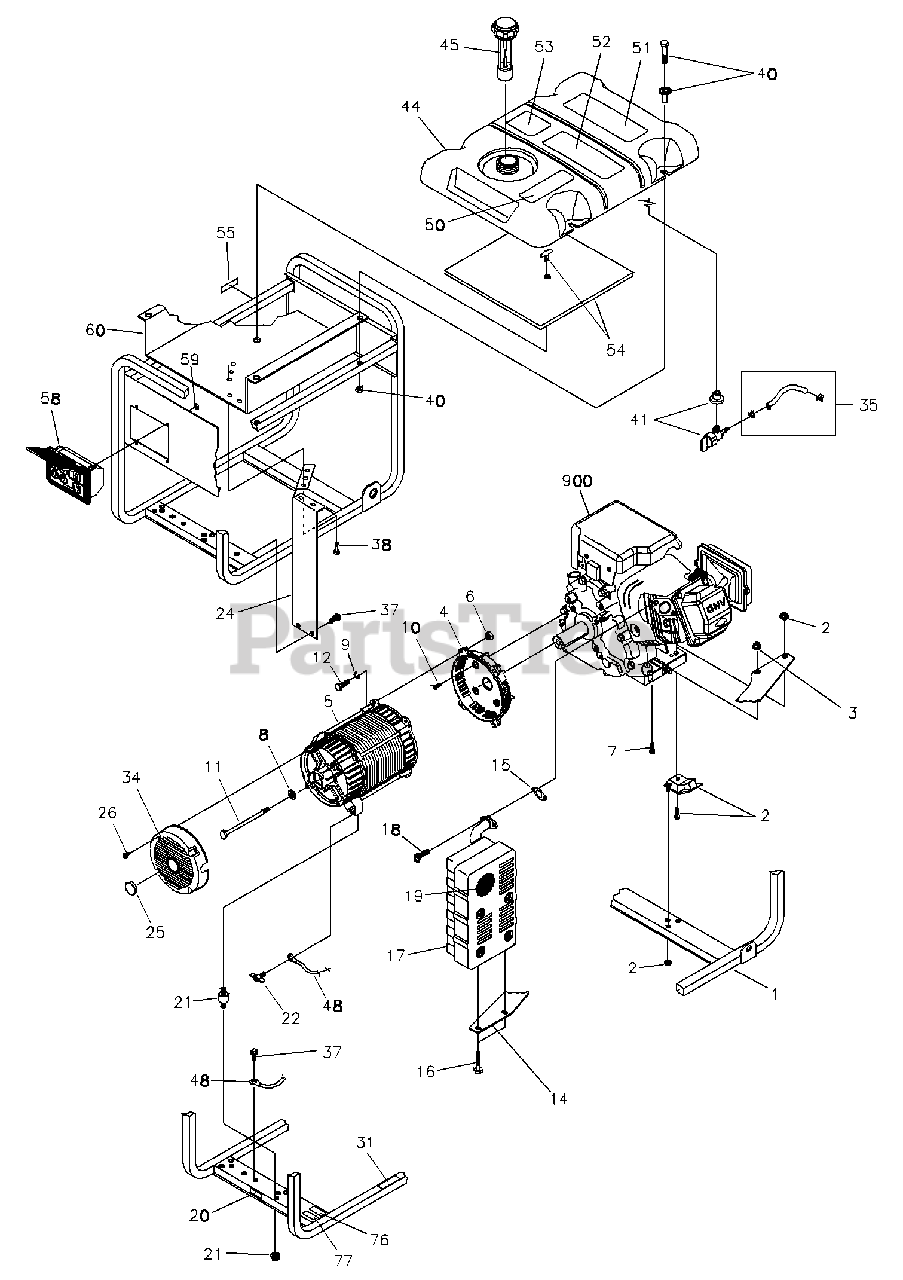

030206-0 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (196850) Parts Diagram

5,500 Watt Portable Generator

Main Unit (196850) Parts Diagram

  • Title

1

Briggs & Stratton M196923GS

CRADLE (Includes #’s 20, 31, 55, 76 and 77)

$184.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator (see page 5)

$

$

Not available

6

-----

NUT, Hex M8 - 1.25

Note: Purchase locally

$

$

Not available

7

-----

TPHMS, M8 - 1.25 x 35

Note: Purchase locally

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

WASHER, 5/16 - M8 Lock

Note: Purchase locally

$

$

Not available

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7-7/16

$17.99

$

Usually ships in 2-12 days

0

12

-----

HHCS, M8 - 1.25 x 25

Note: Purchase locally

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

HHCS, M6 - 1.0 x 12 w/W

Note: Purchase locally

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 201522GS

SHCS, 5/16 - 18 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Line (cut to fit)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 195477GS

KIT, Fuel Tank Hardware (Includes Qty of 4)

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve, Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 197303GS

ASSY., Tank, Fuel 7-Gallon (Includes #’s 41, 50, 51, 52 & 53)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Warning CO

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-off

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 202530GS

ASSY, Control Panel

$

$

Not available

59

Briggs & Stratton 189164GS

NUT, Palnut, 3/16"

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 195940GS

DECAL, Neutral Ground, French

$6.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 195459GS

DECAL, Ground Neutral

$6.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Parts Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196849GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS3790

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Not available

Briggs & Stratton 202180GS

DECAL, Family, CA, EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197301GS

KIT, Decals, Service

Note: Parts Not Illustrated

$52.99

$

Usually ships in 2-12 days
