030 (216-030-100) - Cub Cadet Front-Tine Tiller (1986) Chain Case Assembly Parts Diagram

Front-Tine Tiller

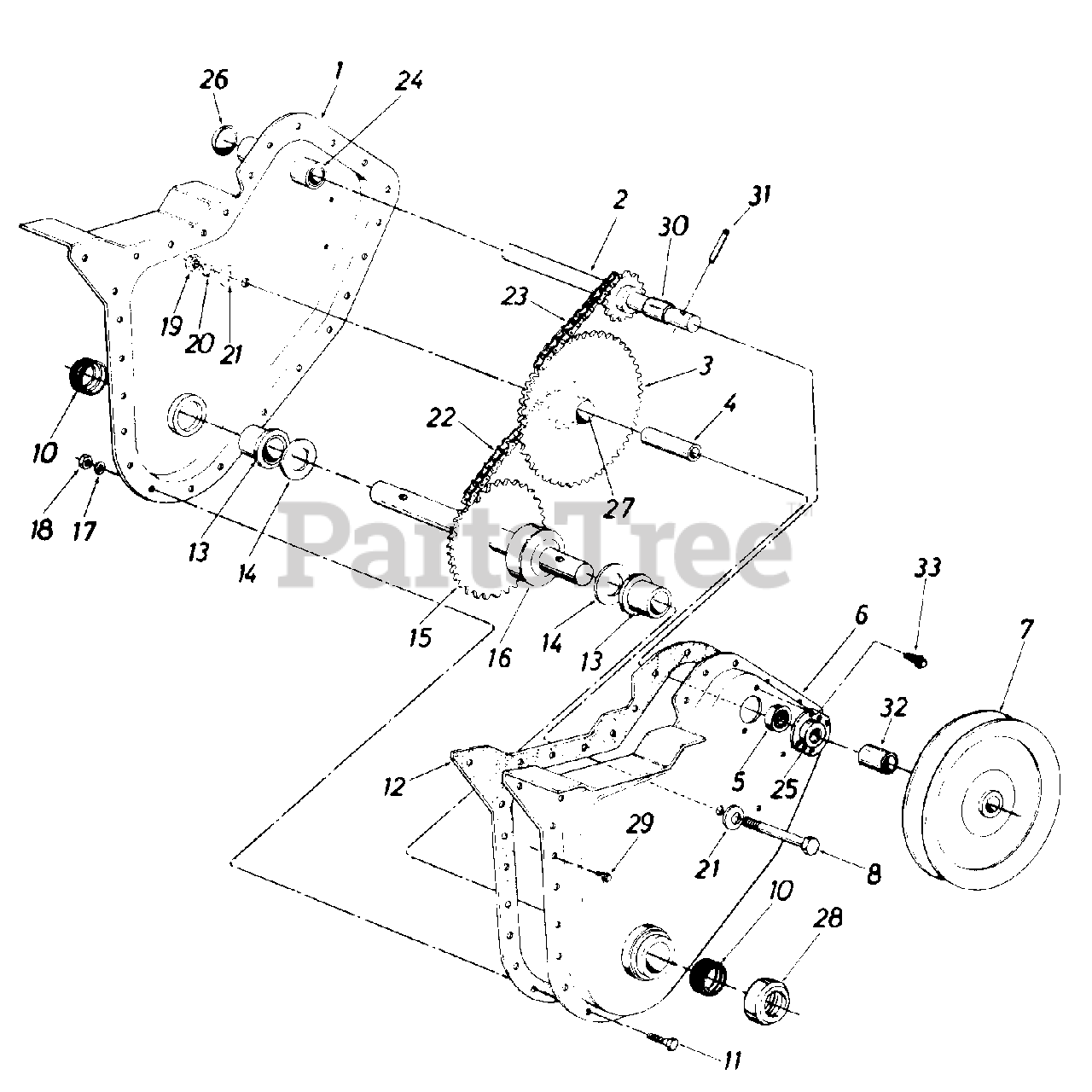

Chain Case Assembly Parts Diagram

  • Title

1

Cub Cadet 04926

Chain Case Ass'y.-R.H.

Note: Color Code 499

$

$

Currently unavailable

2

Cub Cadet 04756

Input Shaft Ass'y.

$

$

Not available

3

Cub Cadet 04757

Hub and Sprocket Ass'y.
(Superseded to 04757A)

$

$

Not available

4

Cub Cadet 750-0351

Bearing Inner Race

$

$

Not available

5

Cub Cadet 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

6

Cub Cadet 15863

Chain Case Ass'y.-L.H.
(Superseded to 686-0087-0637)

Note: Color Code 499

$

$

Not available

7

Cub Cadet 756-0287

Pulley-Chain Case 5 1/2 x 1/2

$

$

Not available

8

Cub Cadet 710-0369

Hex Bolt 3/8-24 x 2.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 721-0157

Seal

$

$

Not available

11

Cub Cadet 710-0195

Hex Bolt 1/4-28 x .625" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

13

Cub Cadet 741-0227

Flange Brg. .879 I.D.

$11.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0265

Fl-Wash. .88 I.D. x 1.50 O.D. x .030

$

$

Not available

15

Cub Cadet 04920

Tine Shaft Ass'y.

$

$

Not available

16

Cub Cadet 750-0354

Spacer 7/8" I.D. x 2.0" O.D. x.68" Lg.
(Superseded to 750-0354A)

$

$

Not available

17

Cub Cadet 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.*

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

20

Cub Cadet 736-0169

L-Wash. 318" I.D.*

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0219

Bell-Wash. .406 I.D. x 1.130 O.D
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0215

Chain #420-.50" Pitch x 38 Links

$

$

Not available

23

Cub Cadet 713-0216

Chain #35-.375" Pitch x 50 Links

$

$

Not available

24

Cub Cadet 748-0154

Bearing .62" I.D. x .813 O.D. x 1.31

$

$

Not available

25

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

26

Cub Cadet 726-0164

Expansion Plug 13/16" Dia.

$

$

Not available

27

Cub Cadet 741-0228

Bearing

$

$

Not available

28

Cub Cadet 731-0486

Dust Cap

$

$

Not available

29

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-2O x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0471

Spacer .630" I.D. x .77" O.D. x.38" Lg.

$

$

Not available

31

Cub Cadet 715-0114

Spring Pin Spiral 1/4" Dia. x 1-1/2 " Lg.

$9.49

$

In Stock, Qty 20+

0

32

Cub Cadet 750-0550

Spacer .647 x 1.25

$

$

Not available

33

Cub Cadet 710-0653

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0
