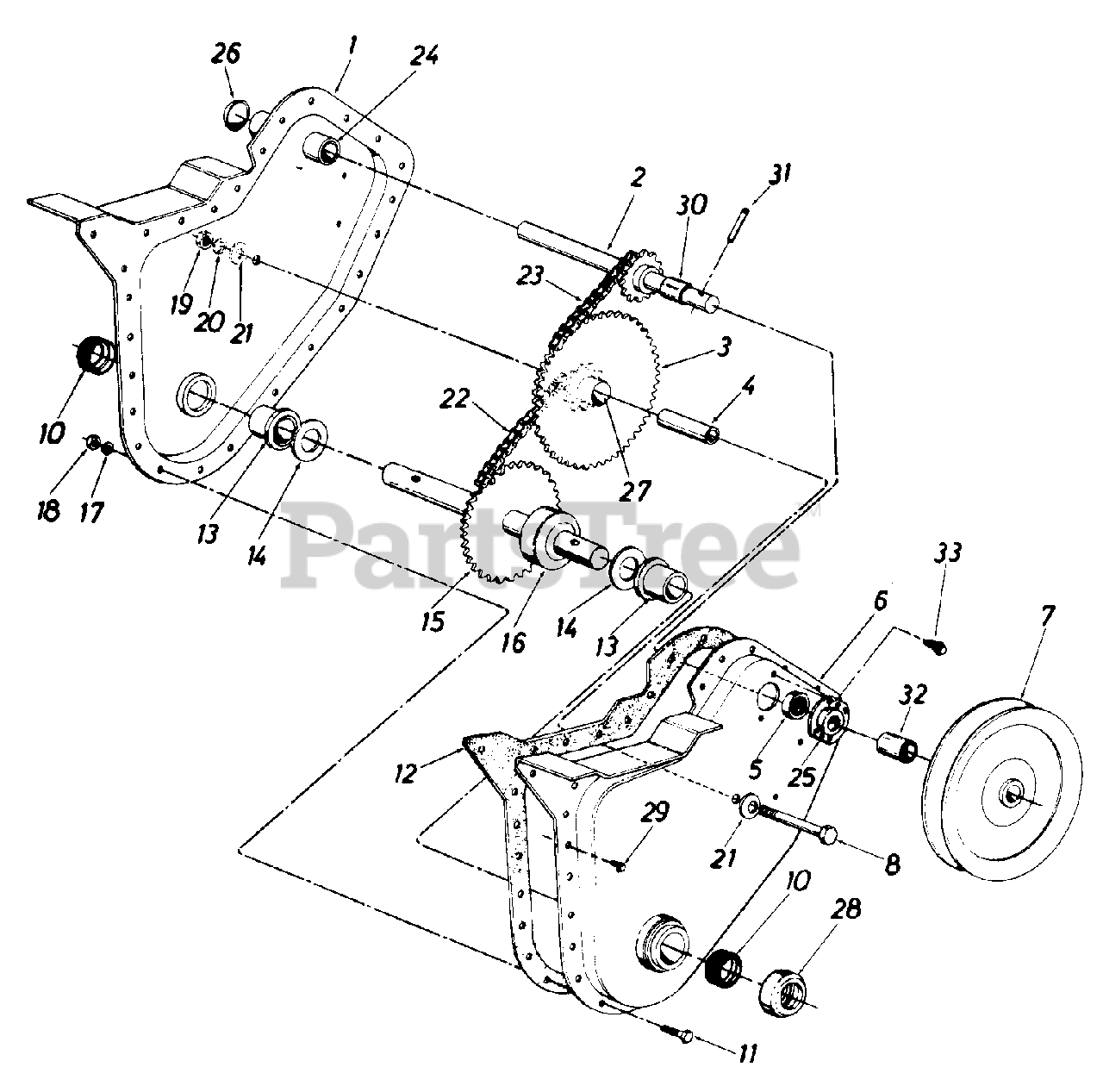

030 (215-030-100) - Cub Cadet Front-Tine Tiller (1985) Chain Case Assembly Parts Diagram

Front-Tine Tiller

Chain Case Assembly Parts Diagram

  • Title
1

Cub Cadet 04926

HOUSING-CHAIN-CASE RH

Note: Color Code 499

$

$

Currently unavailable

2

Cub Cadet 04756

SHAFT ASSY-INPUT

$

$

Not available

3

Cub Cadet 04757

SPROCKET & HUB ASSY
(Superseded to 04757A)

$

$

Not available

4

Cub Cadet 750-0351

BEARING-INNER RACE

$

$

Not available

5

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

6

Cub Cadet 15863

CHAIN CASE HSG-LH
(Superseded to 686-0087-0637)

Note: Color Code 499

$

$

Not available

$

$

Not available

8

Cub Cadet 710-0369

SCREW-HEX 3/8-24 X 2.50

$6.49

$

Usually ships in 3-6 days

0

$

$

Not available

11

Cub Cadet 710-0195

SCREW-HEX 1/4-28 X .62
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 721-0156

GASKET
(Superseded to 921-0156A)

$

$

Not available

13

Cub Cadet 741-0227

BEARING-FLANGE

$11.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0265

WASHER-FL-.88 X 1.50 X .030

$

$

Not available

15

Cub Cadet 04920

SHAFT ASSY-TINE

$

$

Not available

16

Cub Cadet 750-0354

SPACER
(Superseded to 750-0354A)

$

$

Not available

17

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

20

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0215

#420 CHAIN 1/2 PITCH X 38 LINKS

$

$

Not available

23

Cub Cadet 713-0216

#35 CHAIN 3/8 PITCH X 50 LINKS

$

$

Not available

24

$

$

Not available

25

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

26

Cub Cadet 726-0164

PLUG-EXPANSION

$

$

Not available

27

Cub Cadet 741-0228

BEARING-SLEEVE

$

$

Not available

28

$

$

Not available

29

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

30

$

$

Not available

31

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4X1.5 HEAVY DT

$9.49

$

In Stock, Qty 20+

0

32

$

$

Not available

33

Cub Cadet 710-0653

SCREW-TAP 1/4-20 X .38

$4.49

$

In Stock, Qty 7

0
