030 (212-030-100) - Cub Cadet Front-Tine Tiller (1982) Chain Case Assembly 04936 Parts Diagram

Front-Tine Tiller

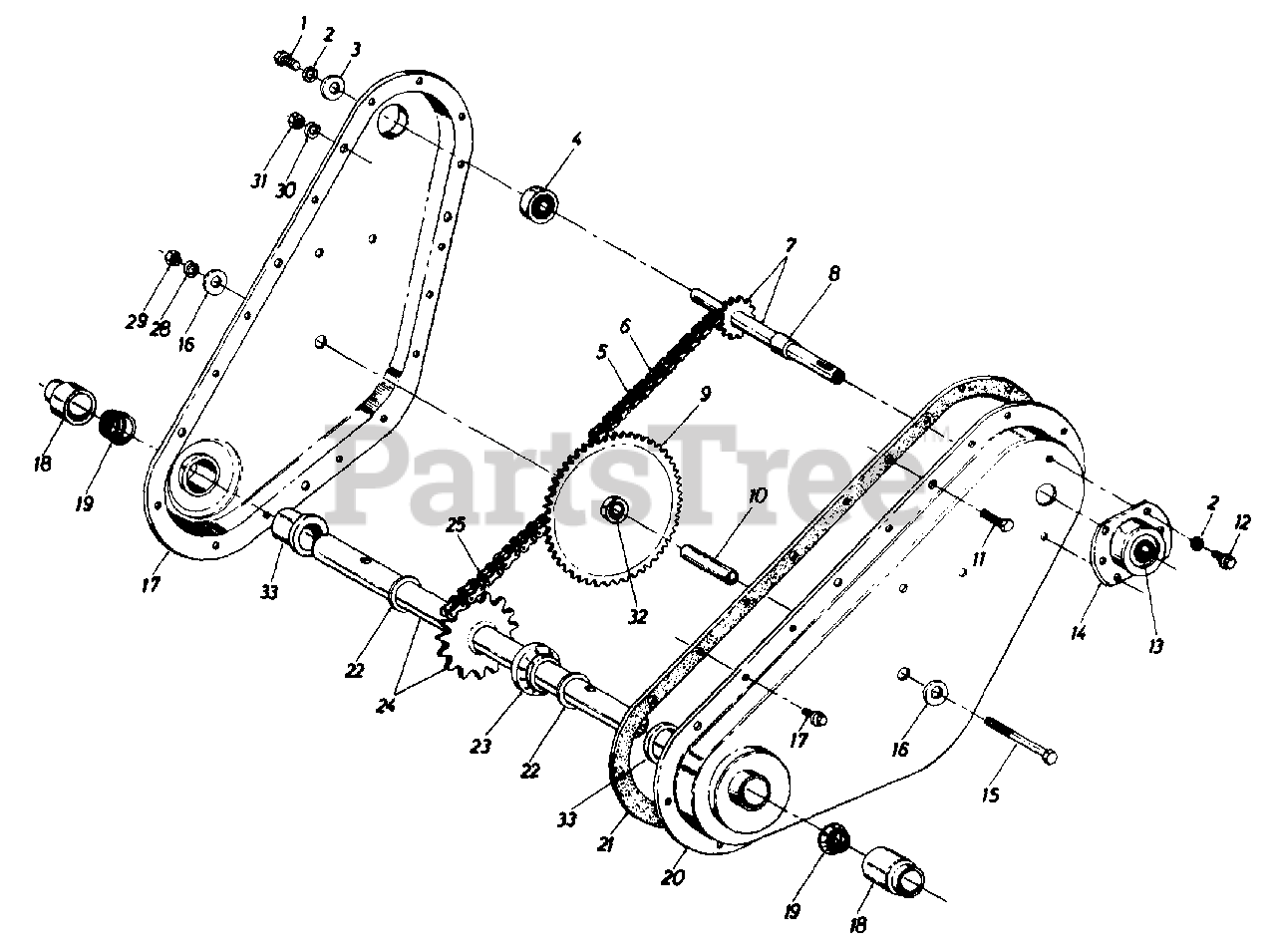

Chain Case Assembly 04936 Parts Diagram

  • Title

1

Cub Cadet 710-0513

Hex L-Scr. 1/4-28 x .625" Lg.
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

2

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 736-0176

Fl-Wash. .25" I.D. x .93" O.D. x .125" Thk.

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 741-0155

Bearing .62" I.D. x 1.38" O.D. x .437" Thk.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

5

Cub Cadet 713-0258

#35 Chain 3/8" Pitch x 70 Links - Endless

$

$

Not available

6

Cub Cadet 713-0139

Master Link
(Superseded to 913-0139)

$

$

Not available

7

Cub Cadet 04956

Input Shaft Assembly

$

$

Not available

8

Cub Cadet 750-0471

Spacer

$

$

Not available

9

Cub Cadet 04957

Sprocket Assembly

Note: (Includes Ref. No. 32)

$

$

Currently unavailable

10

Cub Cadet 750-0275

Sprocket Hub Tubing 3/8" I.D. x 5/8" O.D. x 1.9" Lg.

$

$

Not available

11

Cub Cadet 710-0118

Hex Scr. 5/16-18 x .625" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 741-0155

Bearing .625" I.D. x 1.38" O.D. x .437" Thk.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

14

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

15

Cub Cadet 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.

$

$

Not available

16

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D. x 1.25" O.D. x .100 Thk.

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-0487

Dust Cap
(Superseded to 931-0487)

$11.99

$

In Stock, only 3 left!

0

19

Cub Cadet 721-0175

Seal

$9.99

$

In Stock, Qty 6

0

20

Cub Cadet 04937

Tiller Housing - L.H.

$

$

Currently unavailable

21

Cub Cadet 721-0170

Gasket
(Superseded to 721P0170)

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0163

Thrust Wash. 1.00" I.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 750-0314

Step Spacer

$

$

Not available

24

Cub Cadet 04946

Tine Shaft Assembly

$

$

Not available

25

Cub Cadet 713-0259

#50 Chain 5/8" Pitch x 38 Links - Endless

$

$

Not available

?27

Cub Cadet 04938

Tiller Housing - R.H.

$

$

Currently unavailable

28

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0711

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 741-0304

Bearing

Note: (For Service Only - Must be Press Fit)

$

$

Not available

33

Cub Cadet 731-0374

Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

Cub Cadet 737-0133

Plastilube #0 14 Oz
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
