03-08EP01 (E-81) - Toro Rear-Engine Riding Mower (1983) BODY, SHEET METAL AND COVERS Parts Diagram

Rear-Engine Riding Mower

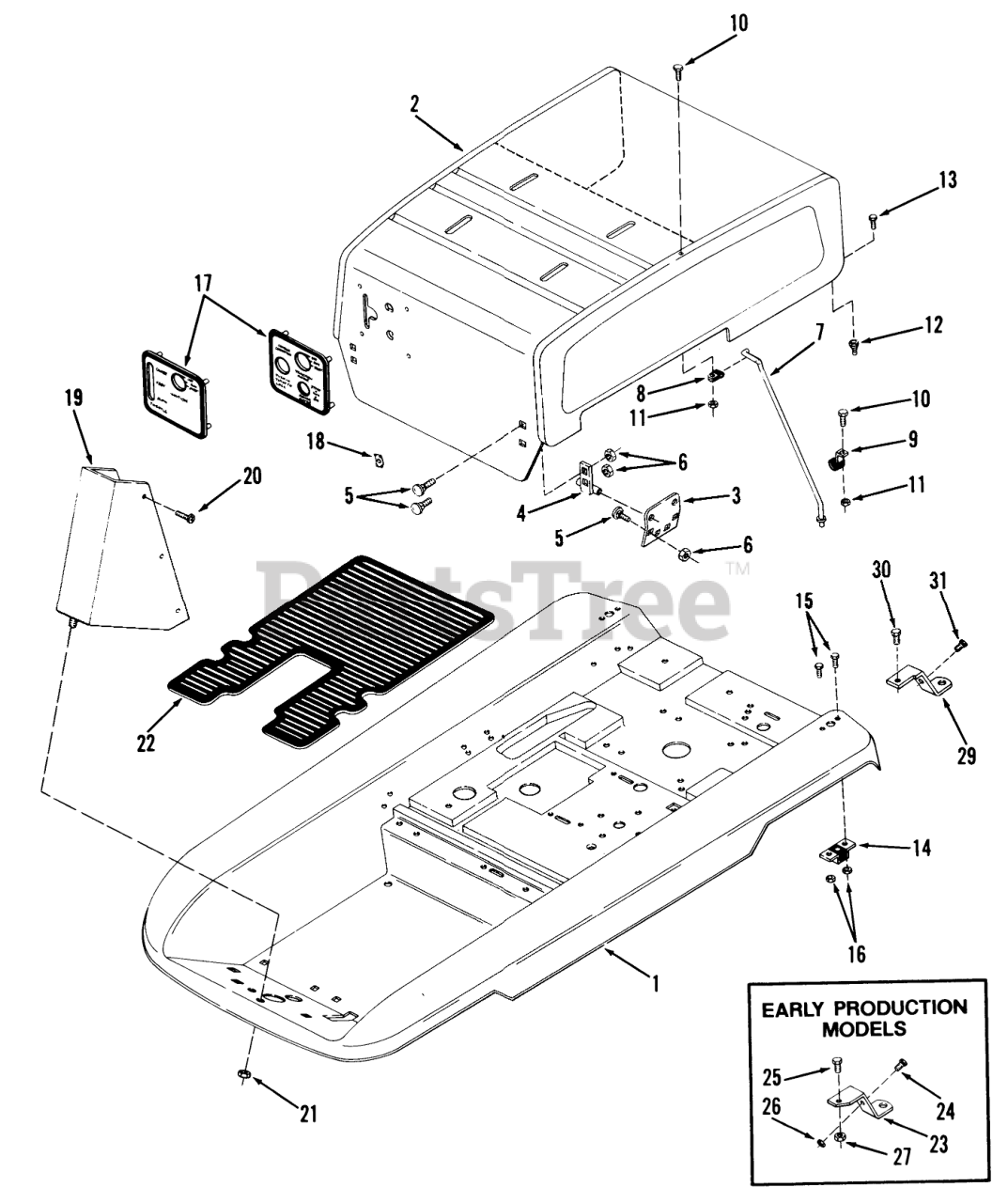

BODY, SHEET METAL AND COVERS Parts Diagram

  • Title
1

$

$

Not available

2

$

$

Not available

3

Toro 106958

BRACKET R

$

$

Not available

4

Toro 106956

Seat Pivot

$

$

Not available

5

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 106915

ROD-HOOD SUPPORT

$

$

Not available

8

$

$

Not available

9

Toro 106912

Clip-Hood Support Rod Rear
(Superseded to 108216)

$

$

Not available

10

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 107012

Ball Stud

$

$

Not available

13

$

$

Not available

14

Toro 107013

Stud Latch

$

$

Not available

15

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

16

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

17

Toro 106961

Control Panel

$

$

Not available

18

Toro 7721

SPEED NUT

$1.99

$

Usually ships in 3-6 days

0

19

Toro 5824

Shroud
(Superseded to 108858)

$

$

Not available

20

Toro 910834

Screw 1/4-20 X 3/8-Early Production Models Only

$

$

Not available

20

Toro 911684

Screw-Hex HD Slotted

$

$

Not available

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

22

Toro 106978

Floor Mat
(Superseded to 109001)

$

$

Not available

23

Toro 104320

Hitch Bar

$

$

Not available

24

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

25

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

27

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

28

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

29

Toro 107764

Drawbar Hitch

$

$

Not available

30

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

31

Toro 908030

Bolt, 3/8-16 x 1/2

$

$

Not available

17

Toro 106992

PANEL-GAS CONTROL

$

$

Not available

2

$

$

Not available

17

Toro 106960

Control Panel

$

$

Not available
