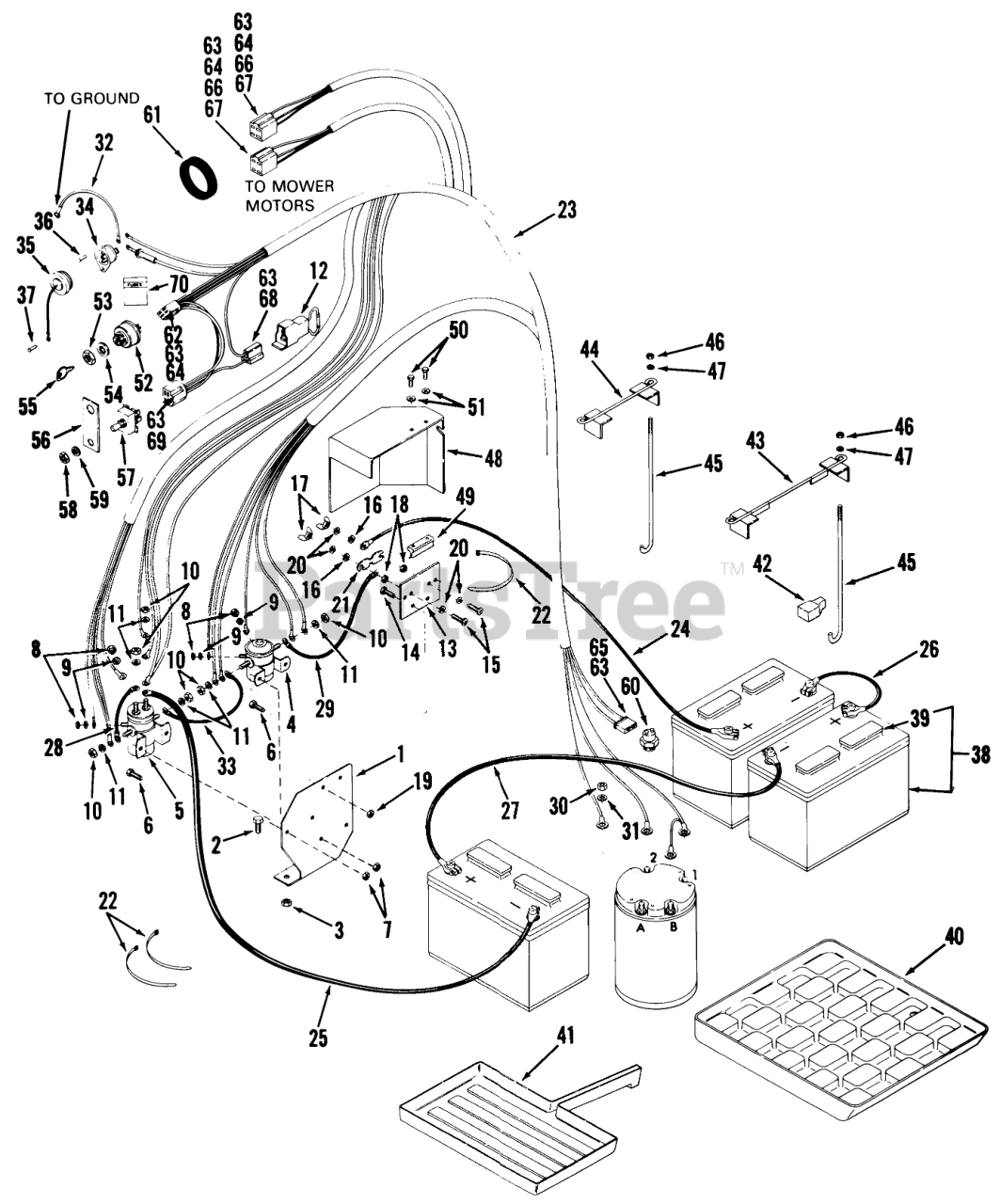

03-08EP01 (E-81) - Toro Rear-Engine Riding Mower (1982) ELECTRICAL SYSTEM - BATTERY POWERED (CONT-D) Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL SYSTEM - BATTERY POWERED (CONT-D) Parts Diagram

  • Title

36

Toro 923786

RIVET
(Superseded to 3269-24)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$2.99

$

In Stock, Qty 12

0

37

Toro 923787

RIVET
(Superseded to 3269-13)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$0.99

$

In Stock, only 2 left!

0

38

Toro 107111

Battery

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

39

Toro 107167

Battery Cap

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Currently unavailable

40

Toro 107159

Battery Tray-Rear

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

41

Toro 523322

TRAY BATTERY FRONT OBS

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

42

Toro 516333

Terminal Cover
(Superseded to 107383)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

43

Toro 104274

Hold Down Assembly

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

44

Toro 102877

Assy-Hold Down

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

45

Toro 104276

HOOK

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

46

Toro 915111

Nut
(Superseded to 3217-5)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$0.99

$

In Stock, Qty 8

0

47

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$0.99

$

In Stock, Qty 20+

0

48

Toro 107160

Cover-Component Mounting Plate

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

49

Toro 107240

Speed Nut/Clip Bracket

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

50

Toro 910764

Screw 6-32 X 1/2

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Currently unavailable

51

Toro 920003

WASHER

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

52

Toro 104270

SWITCH-IGNITION

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$99.99

$

Usually ships in 3-6 days

0

53

Toro 7261

Nut
(Superseded to 88-2130)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

54

Toro 920159

Lockwasher 9/16 I.D.

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

55

Toro 7262

Key-EL
(Superseded to 62-7770)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$4.99

$

In Stock, only 2 left!

0

56

Toro 107406

Back-Up Plate-Ignition Switch

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

57

Toro 104271

PTO Switch

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

58

Toro 104327

Nut, 1/2-27

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

59

Toro 920158

Lockwasher 1/2 Int. Tooth

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

60

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$61.99

$

Usually ships in 3-6 days

0

61

Toro 104248

GROMMET

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$11.99

$

Usually ships in 3-6 days

0

62

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$5.99

$

In Stock, only 2 left!

0

63

Toro 102651

Terminal

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

64

Toro 105306

TERMINAL-TAB RCPT

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$3.49

$

Usually ships in 3-6 days

0

65

Toro 106035

Connector Housing M

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

66

Toro 107625

4-CONTACT CONNECTOR

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

67

Toro 107626

Fem. Term.-Part of 23-12 Ga

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Currently unavailable

68

Toro 107627

Conn. Body-Part of 23
(Superseded to 110459)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$1.99

$

In Stock, only 2 left!

0

69

Toro 107628

3-CONTACT CONNECTOR

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

70

Toro 101639

FUSE

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$2.99

$

Usually ships in 3-6 days

0
