03-08EP01 (E-81) - Toro Rear-Engine Riding Mower (1982) BRAKE AND CLUTCH LINKAGE Parts Diagram

Rear-Engine Riding Mower

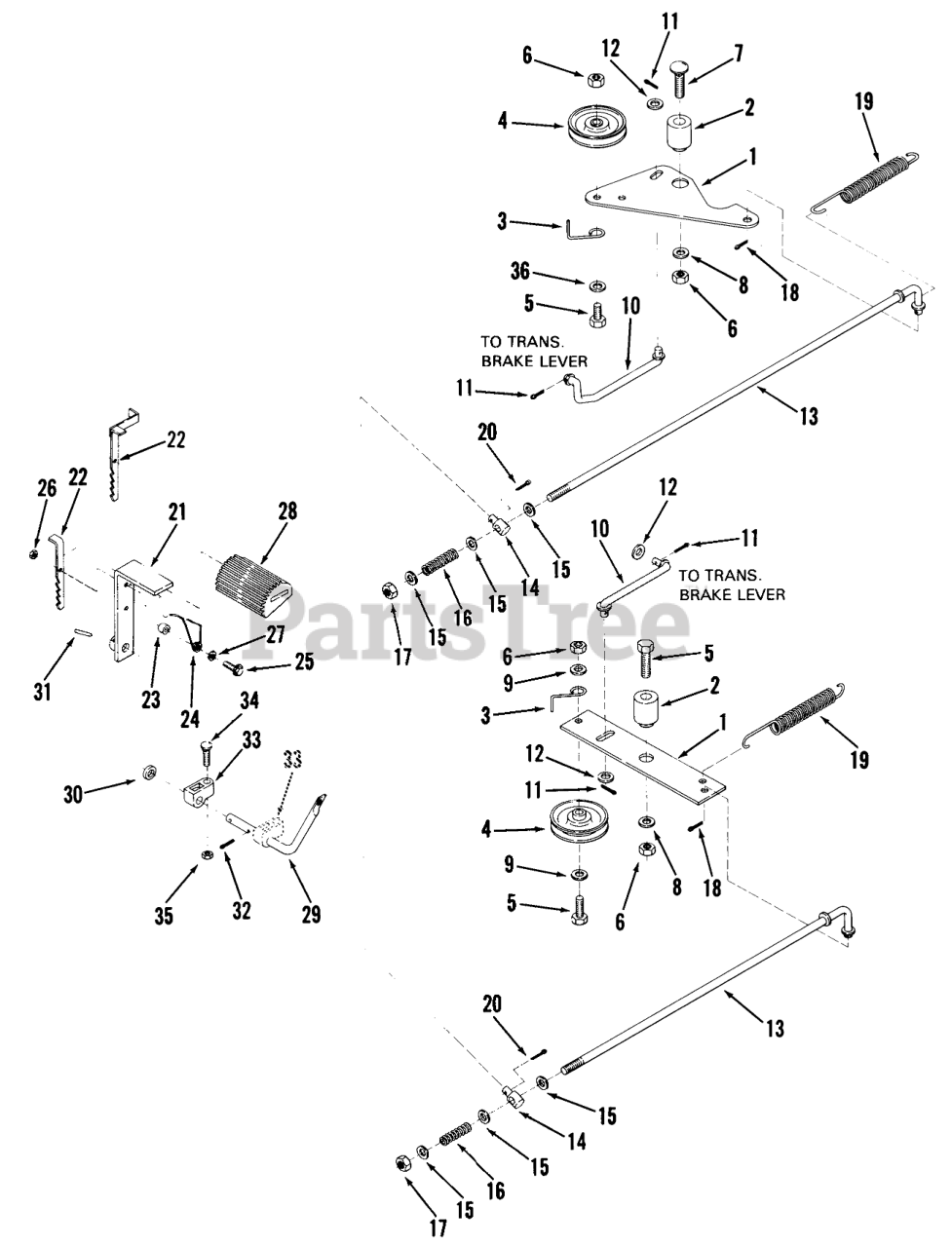

BRAKE AND CLUTCH LINKAGE Parts Diagram

  • Title
1

Toro 106917

Idler Arm

$

$

Not available

2

Toro 106908

SPACER-CLUTCH ARM

$

$

Not available

3

Toro 103966

Snap Ring
(Superseded to 110667)

$

$

Not available

4

Toro 8205

PULLEY-IDLER STATION

$26.99

$

In Stock, only 1 left!

0

6

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

7

Toro 900067

Bolt
(Superseded to 323-16)

$3.49

$

In Stock, Qty 7

0

8

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

10

Toro 107811

Brake Rod

$

$

Not available

11

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

12

Toro 920248

WASHER-NYLON

$0.99

$

Usually ships in 3-6 days

0

13

Toro 106910

Clutch Rod

$

$

Not available

14

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

15

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

16

Toro 523321

Spring-Clutch/Brake Overtravel

$

$

Not available

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

18

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

19

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

20

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

21

Toro 107833

Clutch/Brake Pedal

$

$

Not available

22

Toro 107002

Park Brake Lever-Early Production Models Only

$

$

Not available

22

Toro 107834

Park Brake Lever

$

$

Not available

23

Toro 107000

SPACER

$

$

Not available

24

Toro 107150

Spring-Park Brake Lever

$

$

Not available

25

Toro 913115

Bolt 10-24 X 1 Washer HD

$

$

Not available

26

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

27

Toro 920005

WASHER

$

$

Not available

28

Toro 520964

Pad, Brake Pedal

$

$

Currently unavailable

29

Toro 106916

Clutch/Brake Arm

$

$

Not available

30

Toro 7360

Spacer

$

$

Not available

31

Toro 933188

Roll Pin
(Superseded to 32121-93)

$5.49

$

Usually ships in 3-6 days

0

32

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

33

Toro 107128

BLOCK-MTG NEW RETURN

$

$

Not available

34

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

35

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

36

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

1

Toro 107151

Idler Arm

$

$

Not available

2

Toro 104018

Spacer
(Superseded to 104859)

$50.99

$

Usually ships in 3-6 days

0

5

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

9

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

10

Toro 107143

Brake Rod

$

$

Not available

12

Toro 920224

Washer-3/8

$

$

Currently unavailable

13

Toro 107144

Clutch Rod

$

$

Not available
