03-08BP03 (A-81) - Toro Rear-Engine Riding Mower (1983) DRIVE BELT AND PULLEYS Parts Diagram

Rear-Engine Riding Mower

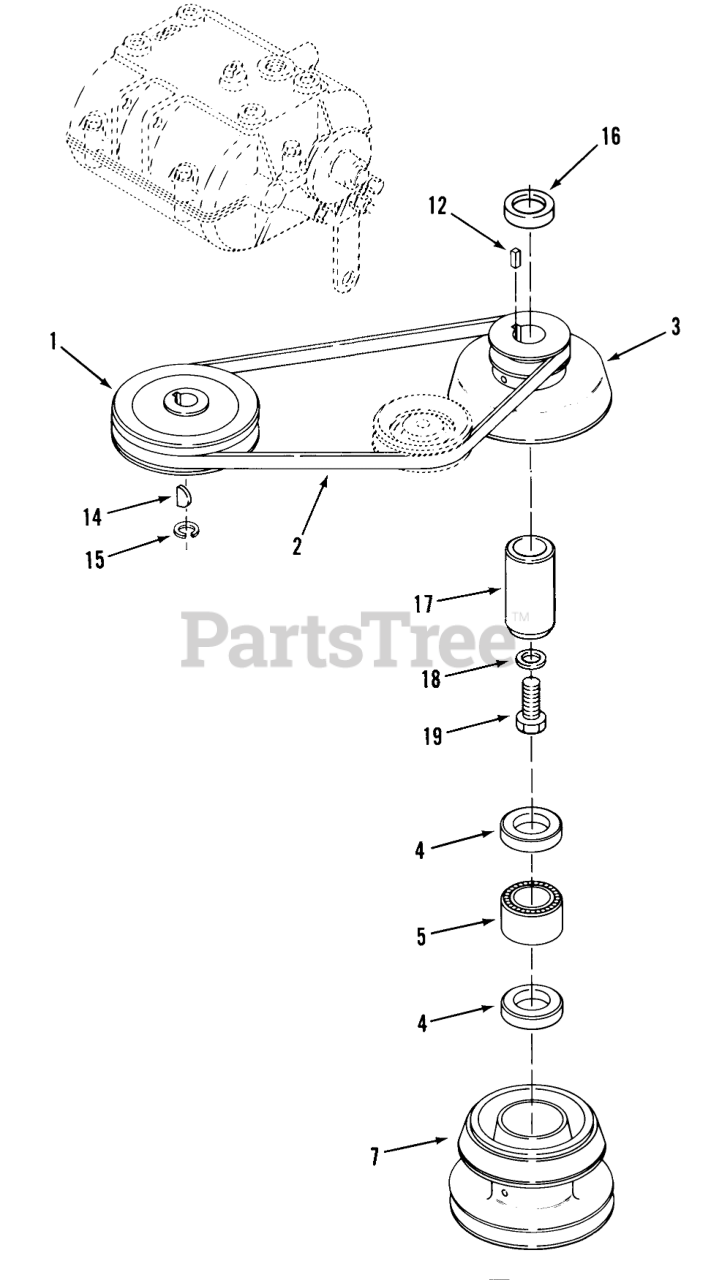

DRIVE BELT AND PULLEYS Parts Diagram

  • Title
1

Toro 106984

PULLEY

$

$

Not available

2

Toro 9430

V-BELT

$

$

Not available

3

Toro 109354

Pulley-Engine
(Superseded to 108286)

$

$

Not available

4

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

5

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

Usually ships in 3-6 days

0

7

Toro 106565

Assy Pulley Mwr Dr
(Superseded to 111321)

$

$

Not available

12

$

$

Not available

14

Toro 937159

Key
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

15

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

16

Toro 109131

TUBE-SPACER

$

$

Not available

17

Toro 109350

Bearing Race

$

$

Not available

18

Toro 107750

WASHER

$

$

Not available

19

Toro 908195

HEX HD CAP SCREW

$

$

Not available
