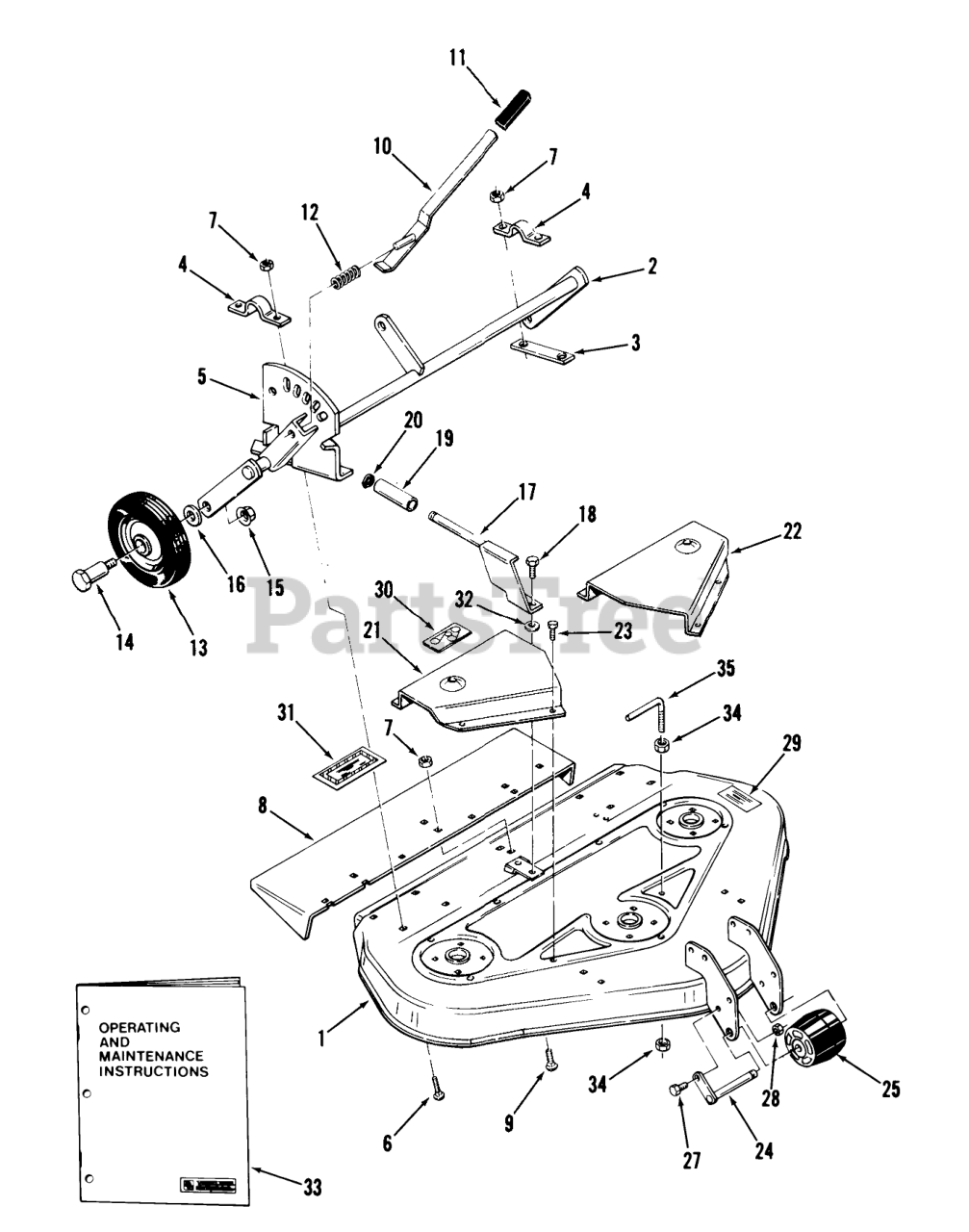

03-08BP03 (A-81) - Toro Rear-Engine Riding Mower (1983) 36 IN./92 CM MOWER DECK-8 HP RIDER (23-08BX01) Parts Diagram

Rear-Engine Riding Mower

36 IN./92 CM MOWER DECK-8 HP RIDER (23-08BX01) Parts Diagram

  • Title

1

Toro 107416

ASSY-MOWER DECK 3 R
(Superseded to 107416-01)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

2

Toro 109374

ASSY GAGE WHEEL S R

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$328.99

$

Usually ships in 3-6 days

0

3

Toro 106377

Strap
(Superseded to 110840-03)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$22.99

$

In Stock, only 1 left!

0

4

Toro 106378

CLAMP

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

5

Toro 106392

Quadrant
(Superseded to 106392-01)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$33.99

$

Usually ships in 3-6 days

0

6

Toro 900063

Bolt
(Superseded to 323-12)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.49

$

In Stock, Qty 10

0

7

Toro 915113

Nut
(Superseded to 32153-2)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 14

0

8

Toro 106480

Chute Extension
(Superseded to 106480-01)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$102.99

$

Usually ships in 3-6 days

0

9

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.49

$

In Stock, Qty 20+

0

10

Toro 107205

Lever

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

11

Toro 102597

GRIP

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.49

$

Usually ships in 3-6 days

0

12

Toro 101853

SPRING-COMPRESSION

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$1.49

$

In Stock, only 3 left!

0

13

Toro 109306

WHEEL-GAUGE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

14

Toro 107208

BOLT

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

15

Toro 915113

Nut
(Superseded to 32153-2)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 14

0

16

Toro 920211

WASHER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

17

Toro 108349

Rear Guide

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

18

Toro 926715

Bolt
(Superseded to 9267154)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$3.49

$

In Stock, Qty 6

0

19

Toro 106383

SPACER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

20

Toro 936117

Snap Ring
(Superseded to 32151-84)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.49

$

Usually ships in 3-6 days

0

21

Toro 107450

Belt Cover RH
(Superseded to 107450-01)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

22

Toro 107449

Cover-Belt
(Superseded to 107449-01)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

23

Toro 926575

Bolt #12-14 x 1/2 Self Tapping

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Currently unavailable

24

Toro 108799

Roller Shaft
(Superseded to 110847)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$28.99

$

In Stock, only 3 left!

0

25

Toro 108798

Roller
(Superseded to 94-1599)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$13.99

$

In Stock, Qty 16

0

27

Toro 908002

H H C S
(Superseded to 321-3)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$1.49

$

In Stock, Qty 20+

0

28

Toro 915111

Nut
(Superseded to 3217-5)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 8

0

29

Toro 108883

Caution Decal
(Superseded to 93-1122)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$9.99

$

In Stock, Qty 12

0

30

Toro 107700

Decal-Height & Belt Adjustment

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

31

Toro 108884

Decal-Caution
(Superseded to 66-1340)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$10.99

$

In Stock, only 1 left!

0

32

Toro 2844

WASHER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.99

$

In Stock, Qty 17

0

33

Toro 810312R1

Operating and Maintenance Instructions

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Currently unavailable

34

Toro 915113

Nut
(Superseded to 32153-2)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 14

0

35

Toro 108490

BELT GUIDE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available
