03-08BP03 (A-81) - Toro Rear-Engine Riding Mower (1983) 32 & 36 IN./81 & 92 CM FRONT MOUNT-8 & 11 HP RIDERS (23-08BX01, 23-08BP02, 23-LLBP02) Parts Diagram

Rear-Engine Riding Mower

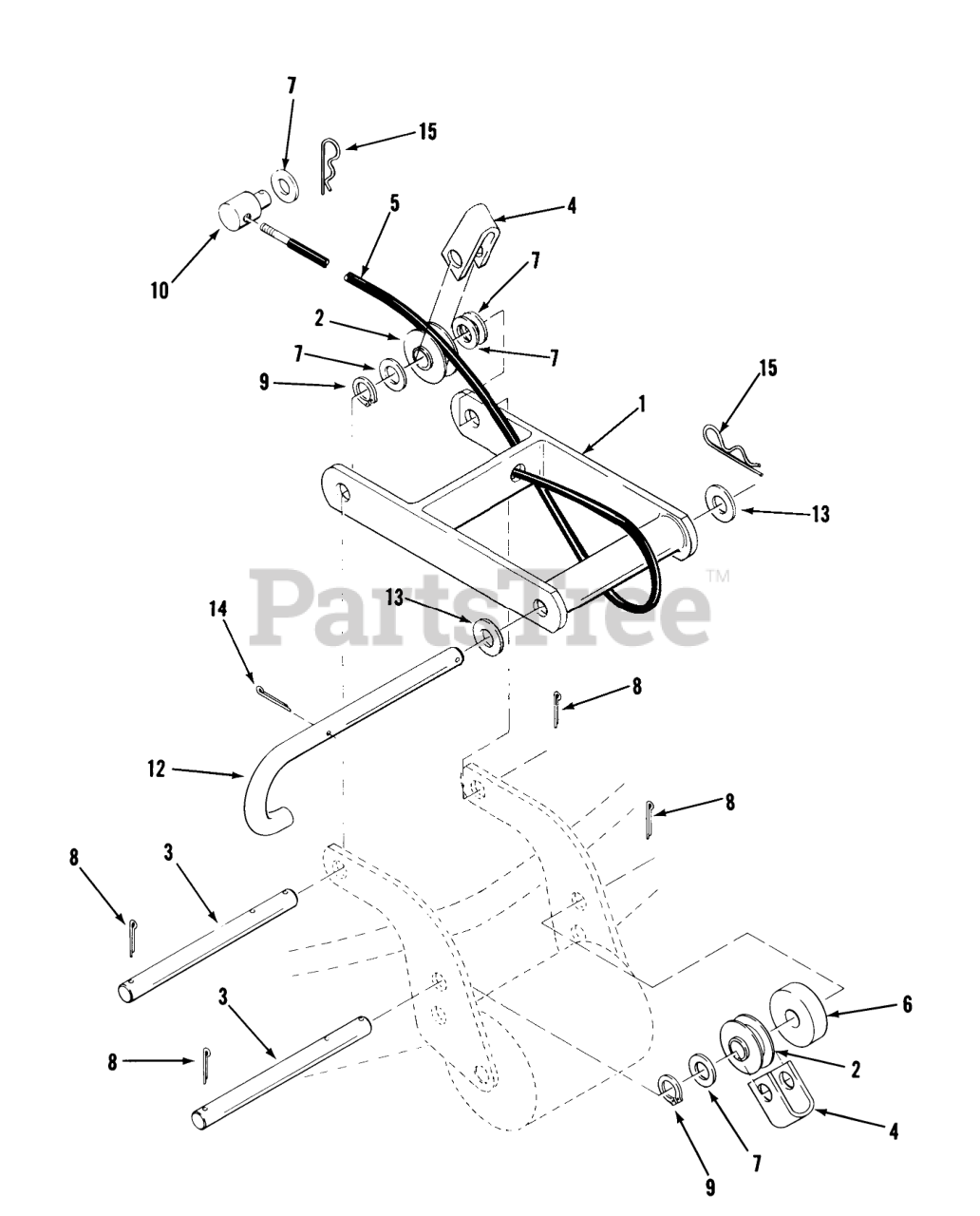

32 & 36 IN./81 & 92 CM FRONT MOUNT-8 & 11 HP RIDERS (23-08BX01, 23-08BP02, 23-LLBP02) Parts Diagram

  • Title

1

Toro 108347

ASSY-FRNT HSG MOUNT

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

1

Toro 109968

Front Mount
(Superseded to 113032)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

2

Toro 106474

ROLLER-CABLE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

3

Toro 106475

Rod
(Superseded to 110843)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

4

Toro 106469

STRAP-CABLE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

5

Toro 108554

ASSY-CABLE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

5

Toro 109449

ASSY CABLE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

6

Toro 106461

SPACER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

6

Toro 106430

SPACER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

7

Toro 920009

Washer
(Superseded to 3256-24)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 14

0

8

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$1.49

$

In Stock, Qty 14

0

9

Toro 106589

GRIP RING

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

10

Toro 104524

TRUNNION-CLUTCH ROD

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$43.99

$

Usually ships in 3-6 days

0

12

Toro 108488

"J" Pin
(Superseded to 110845)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

13

Toro 920011

Washer
(Superseded to 3256-26)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 20+

0

14

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

Usually ships in 3-6 days

0

15

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$1.99

$

In Stock, Qty 20+

0
