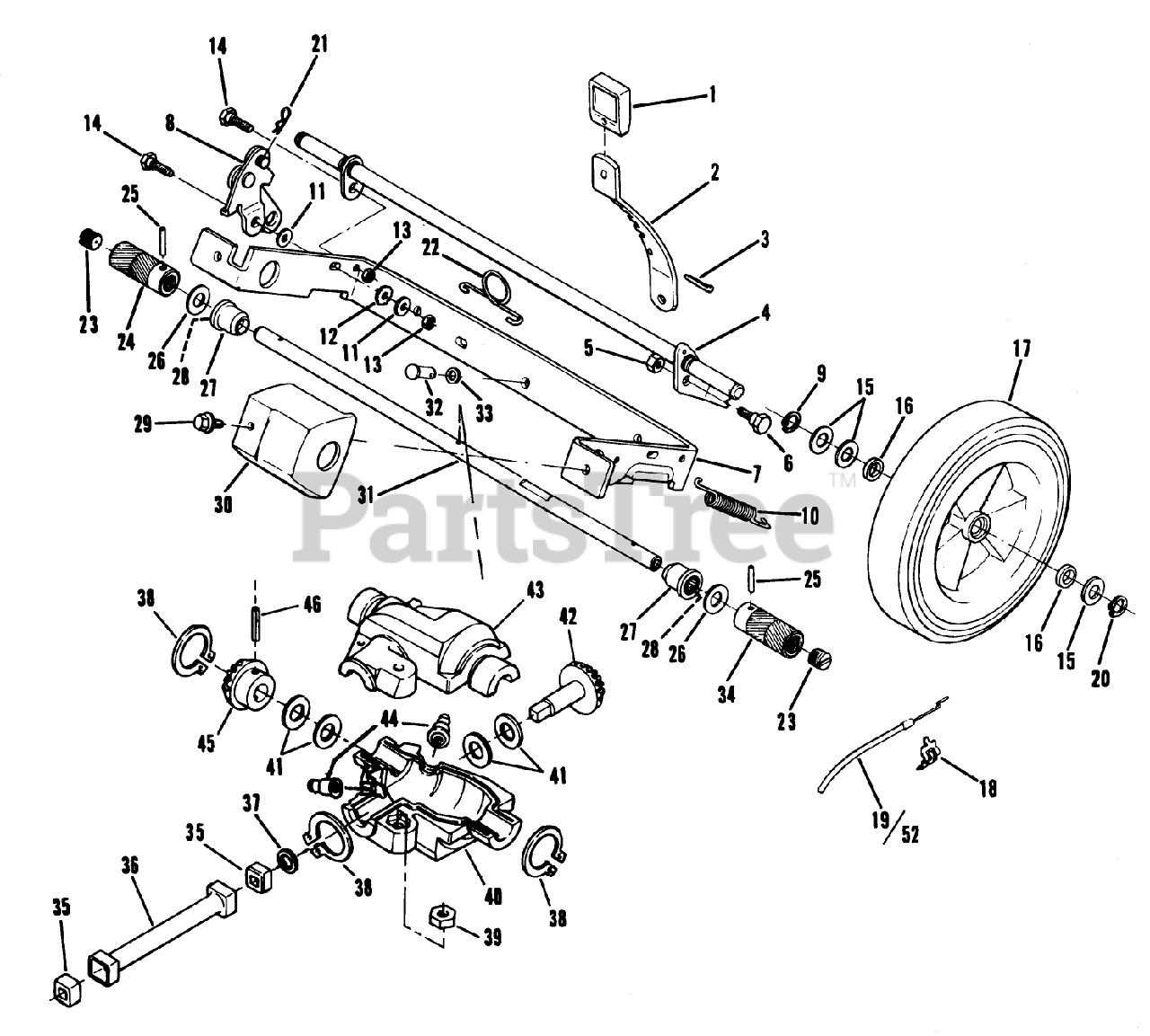

0292 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Drive Group Model: 0392 (8351jp) Parts Diagram

Walk-Behind Mower

Drive Group Model: 0392 (8351jp) Parts Diagram

  • Title

$15.99

$

Usually ships in 3-6 days

0

2

$

$

Not available

3

Lawn-Boy 603036

DISCONTINUED

$

$

Not available

Lawn-Boy 681290

DISCONTINUED

$

$

Not available

4

Lawn-Boy 681534

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

BOLT RB&W

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610600

Bracket-21" Axle

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Currently unavailable

8

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

9

Lawn-Boy 607676

RET RING

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 603003

SPRING

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

11

Lawn-Boy 603093

WASHER S

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

12

Lawn-Boy 603123

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

13

Lawn-Boy 602201

STOP NUT

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

14

Lawn-Boy 602984

BOLT RB&W

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

15

Lawn-Boy 605256

SPACER

Note: Note Space washers on either side of rear wheels so that center tread on rollers lines up with center of tire. One washer is used next to bolt on front wheels.

$2.99

$

In Stock, Qty 20+

0

16

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 678638

See Supercession: 682972
(Superseded to 682972)

$29.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608936

See Supercession: 682603
(Superseded to 682603)

$

$

Not available

19

Lawn-Boy 681667

DISCONTINUED

$

$

Not available

20

Lawn-Boy 607676

RET RING

$5.99

$

In Stock, Qty 6

0

21

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 605802

SPRING N.A.S

$7.99

$

In Stock, Qty 7

0

23

Lawn-Boy 602926

GREASE PLUG

$12.99

$

In Stock, Qty 6

0

24

Lawn-Boy 607658

DISCONTINUED

$

$

Not available

$3.49

$

In Stock, Qty 5

0

26

Lawn-Boy 603037

DISCONTINUED

$

$

Not available

27

Lawn-Boy 678782

See Supercession: 681904
(Superseded to 681904)

$

$

Not available

28

Lawn-Boy 679144

BEARING AY F

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

29

Lawn-Boy 607783

DISCONTINUED

$

$

Not available

30

$

$

Not available

31

Lawn-Boy 679952

DRIVE SHFT TAG AY

$

$

Not available

$7.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 606116

WASHER SPRING LAR

$

$

Not available

34

Lawn-Boy 607657

DISCONTINUED

$

$

Not available

35

Lawn-Boy 608563

BUSHING

$9.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 610625

See Supercession: 683129
(Superseded to 683129)

$

$

Not available

37

$2.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 908973

See Supercession: 32151-33
(Superseded to 32151-33)

$3.49

$

In Stock, only 2 left!

0

39

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

40

Lawn-Boy 610152

See Supercession: 682662
(Superseded to 682662)

$

$

Not available

41

Lawn-Boy 608030

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

42

Lawn-Boy 607663

DISCONTINUED
(Superseded to 98-8319)

$

$

Not available

43

Lawn-Boy 610151

See Supercession: 682662
(Superseded to 682662)

$

$

Not available

44

Lawn-Boy 610153

ZERK FITTING

$

$

Not available

45

Lawn-Boy 607664

DISCONTINUED
(Superseded to 98-8319)

$

$

Not available

46

Lawn-Boy 311866

ROLL PIN

$3.49

$

In Stock, only 1 left!

0
