02720 - Toro 36" Flail Attachment (SN: 410300000 - 999999999) Idler Clutch Assembly Parts Diagram

36" Flail Attachment

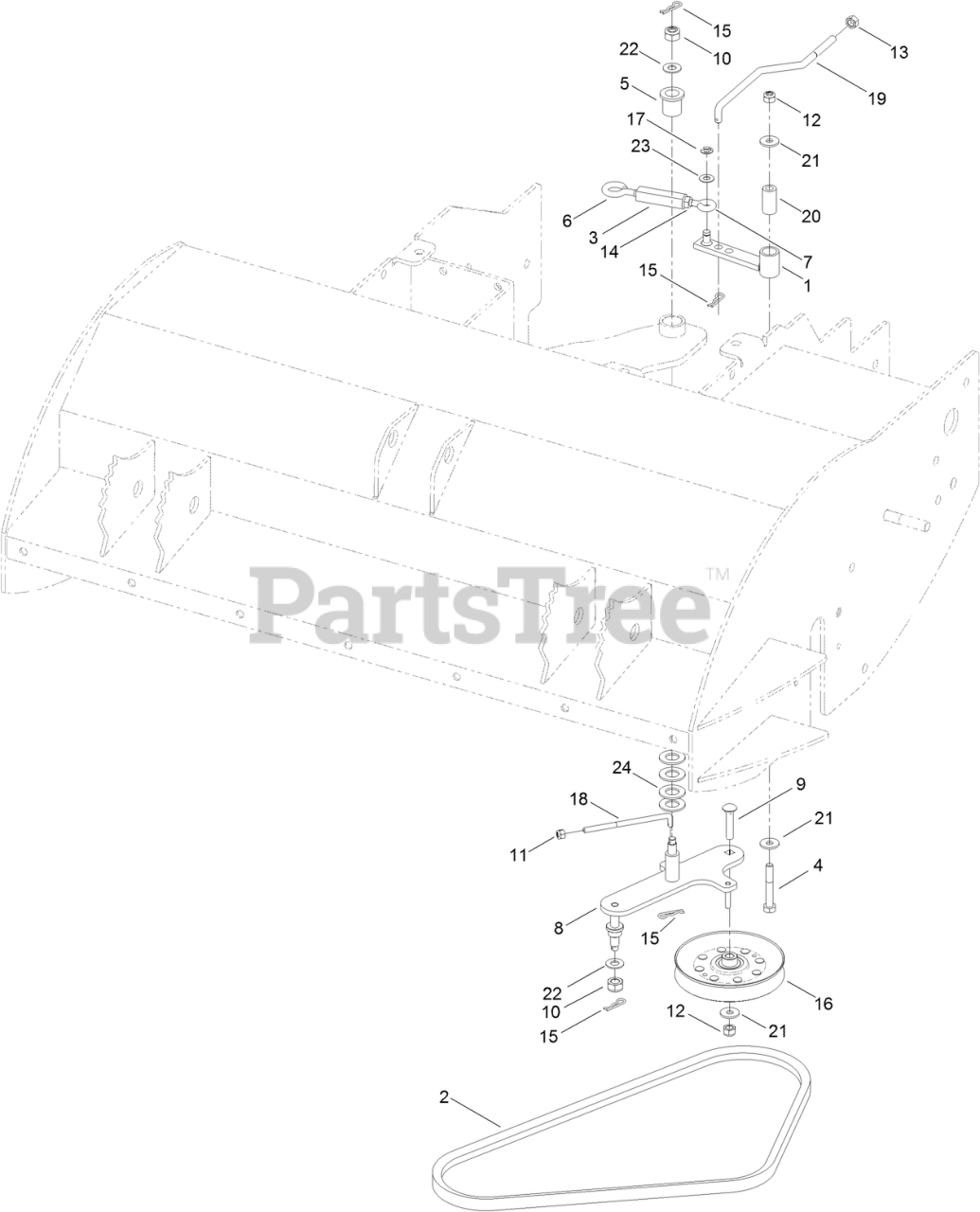

Idler Clutch Assembly Parts Diagram

  • Title

1

Toro 111-2990

ARM-ASSIST

$

$

Currently unavailable

2

Toro 111-2655

BELT-V

$

$

Currently unavailable

3

Toro 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, only 3 left!

0

4

Toro 09565

SCREW-HH

$

$

Not available

5

Toro 953868

BUSHING-FLANGE, OILITE

$

$

Currently unavailable

6

Toro 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

7

Toro 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

8

Toro 111-2657

IDLER-CLUTCH

$

$

Currently unavailable

9

Toro 09379

BOLT-COACH

$

$

Currently unavailable

10

Toro ZNN1J000U

NUT-HEX, NI

$

$

Currently unavailable

11

Toro 09544

NUT-NYLOC

$

$

Currently unavailable

12

Toro 09441

NUT-HEX, NI

$

$

Not available

13

Toro 09207

NUT

$

$

Currently unavailable

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Toro 111-2464

PULLEY-IDLER CLUTCH

$

$

Currently unavailable

17

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

18

Toro 111-2977

ROD-BRAKE

$

$

Currently unavailable

19

Toro 111-2474

ROD-LINKAGE, DRIVE

$

$

Currently unavailable

20

Toro 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 1 left!

0

21

Toro 09267

WASHER

$

$

Currently unavailable

22

Toro 09479

WASHER-PLAIN

$

$

Not available

23

Toro 09475

WASHER

$

$

Currently unavailable

24

Toro ZWP1P000U

WASHER-PLAIN

$

$

Currently unavailable
