02712 - Toro 48" Rear-Discharge Mower Deck (SN: 410000000 - 999999999) 48 Inch Deck and Cover Assembly Parts Diagram

48" Rear-Discharge Mower Deck

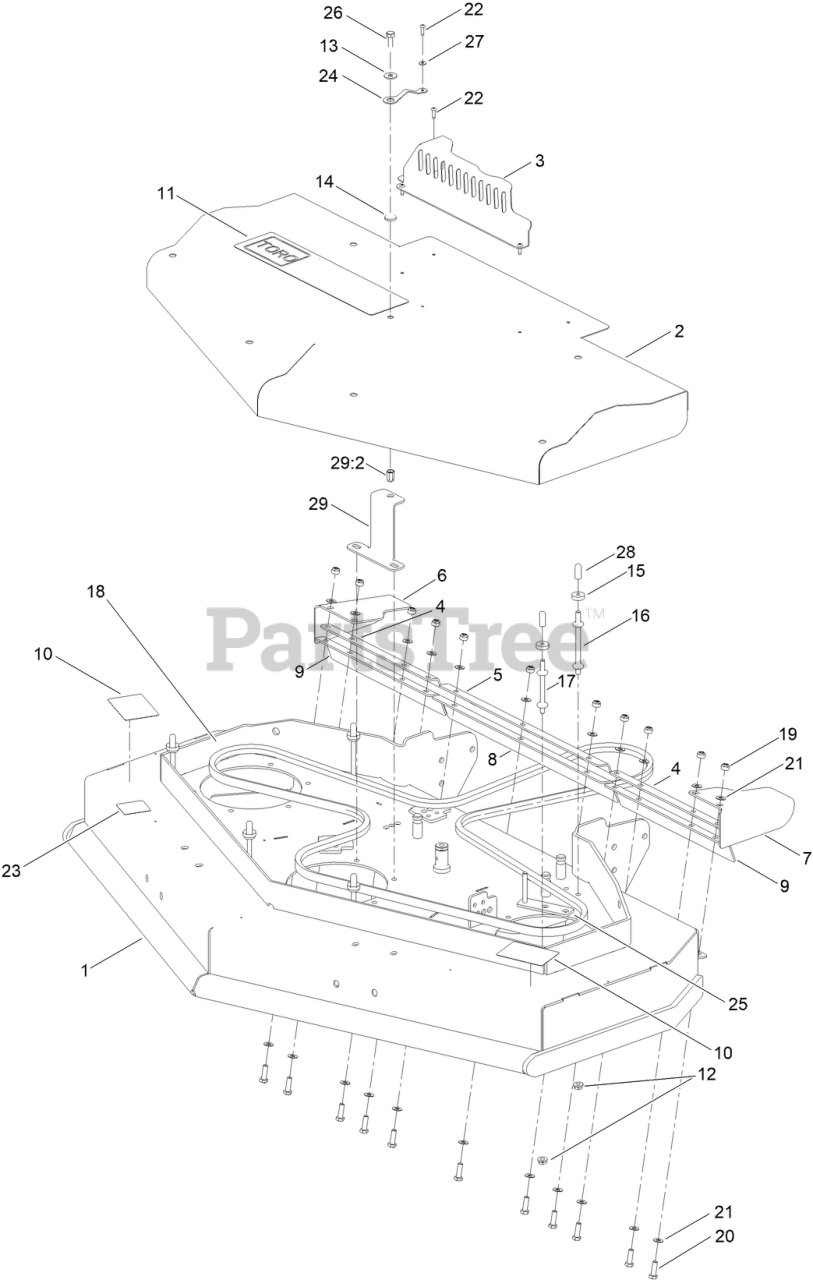

48 Inch Deck and Cover Assembly Parts Diagram

  • Title
1

Toro 111-1360-01

48 INCH DECK ASM

$

$

Currently unavailable

2

Toro 111-3922-01

COVER-DECK

$

$

Currently unavailable

3

Toro 111-4929-01

GUARD-PIPE, EXHAUST

$

$

Currently unavailable

4

Toro 111-1544-01

BRACKET-DEFLECTOR, SIDE

$

$

Currently unavailable

5

Toro 111-1545-01

BRACKET-DEFLECTOR, CENTER

$

$

Currently unavailable

6

Toro 111-1409-01

GUARD-DISCHARGE, RH

$

$

Currently unavailable

7

Toro 111-1410-01

GUARD-DISCHARGE, LH

$

$

Currently unavailable

8

Toro 111-1547

DEFLECTOR-CENTRE, RUBBER

$

$

Currently unavailable

9

Toro 111-1546

DEFLECTOR-SIDE

$

$

Currently unavailable

10

Toro 139-5557

DECAL-DANGER, CE

$28.99

$

Usually ships in 3-6 days

0

11

Toro 111-1764

DECAL-MIDSIZE

$

$

Currently unavailable

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 09267

WASHER

$

$

Currently unavailable

14

Toro 111-3697

NUT-RETAINER

$

$

Currently unavailable

15

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

16

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

17

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

18

Toro 111-2479

BELT-V

$

$

Currently unavailable

19

Toro ZNN3E000U

NUT-NYLOC

$

$

Currently unavailable

20

Toro ZDH3E016U

SCREW-HH

$

$

Currently unavailable

21

Toro 09475

WASHER

$

$

Currently unavailable

22

Toro 09320

RIVET

$

$

Not available

23

Toro 922854

DECAL-NOISE

$

$

Currently unavailable

24

Toro 117-8339

LANYARD-3 INCH

$5.49

$

Usually ships in 3-6 days

0

25

Toro 111-2470-03

GUIDE-BELT

$

$

Currently unavailable

26

Toro 03162

SCREW-HH

$

$

Not available

27

Toro 09257

WASHER

$

$

Not available

28

Toro 111-3882

CAP-END, RUBBER

$

$

Currently unavailable

29

Toro 111-3887

BRACKET-GUARD

$

$

Currently unavailable

29:2

Toro 111-7683

NUT-RIVET

$

$

Not available
