02660 T - Toro eProStripe 560 60V Walk-Behind Mower (SN: 400000000 - 999999999) Engine and Blade Assembly Parts Diagram

eProStripe 560 60V Walk-Behind Mower

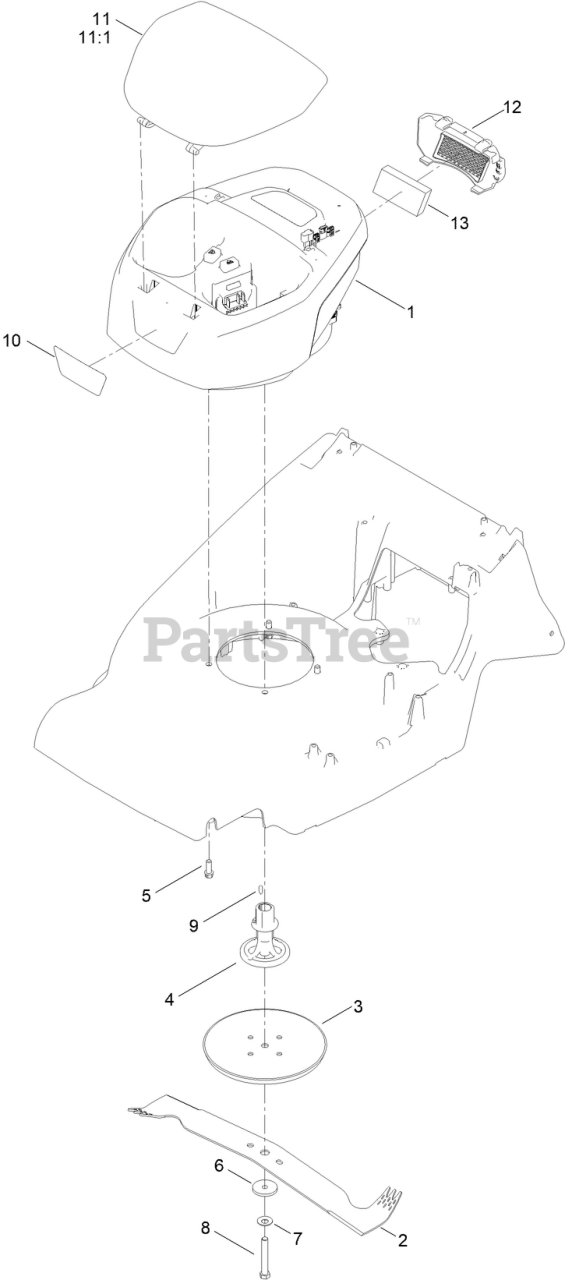

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 134-8600

MOTOR MODULE (60V) [DOUBLE][TORO]

$

$

Currently unavailable

2

Toro 134-1849

CUTTERBAR, 56CM

$

$

Currently unavailable

3

Toro 410057W

DISC-FRICTION

$

$

Not available

4

Toro 134-4299

BOSS AUTODRIVE, 22MM

$

$

Currently unavailable

5

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

6

Toro 134-3973

SPACER-DISTANCE, CUTTERBAR

$

$

Currently unavailable

7

Toro 134-3191

WASHER-LOCK

$

$

Currently unavailable

8

Toro 134-1680

BOLT, UNF 3/8 X 3 (GRADE 8, ROHS)

$

$

Currently unavailable

9

Toro 134-4660

KEY-FLAT

$

$

Currently unavailable

10

Toro 134-8532

DECAL - FRONT MOTOR COVER

$

$

Currently unavailable

11

Toro 134-8505

LID, HOUSING

$

$

Currently unavailable

11:1

Toro 134-5361

SCREW

$

$

Currently unavailable

12

Toro 134-8506

COVER, REAR

$

$

Currently unavailable

13

Toro 134-8752

FOAM, FILTER

$

$

Currently unavailable
