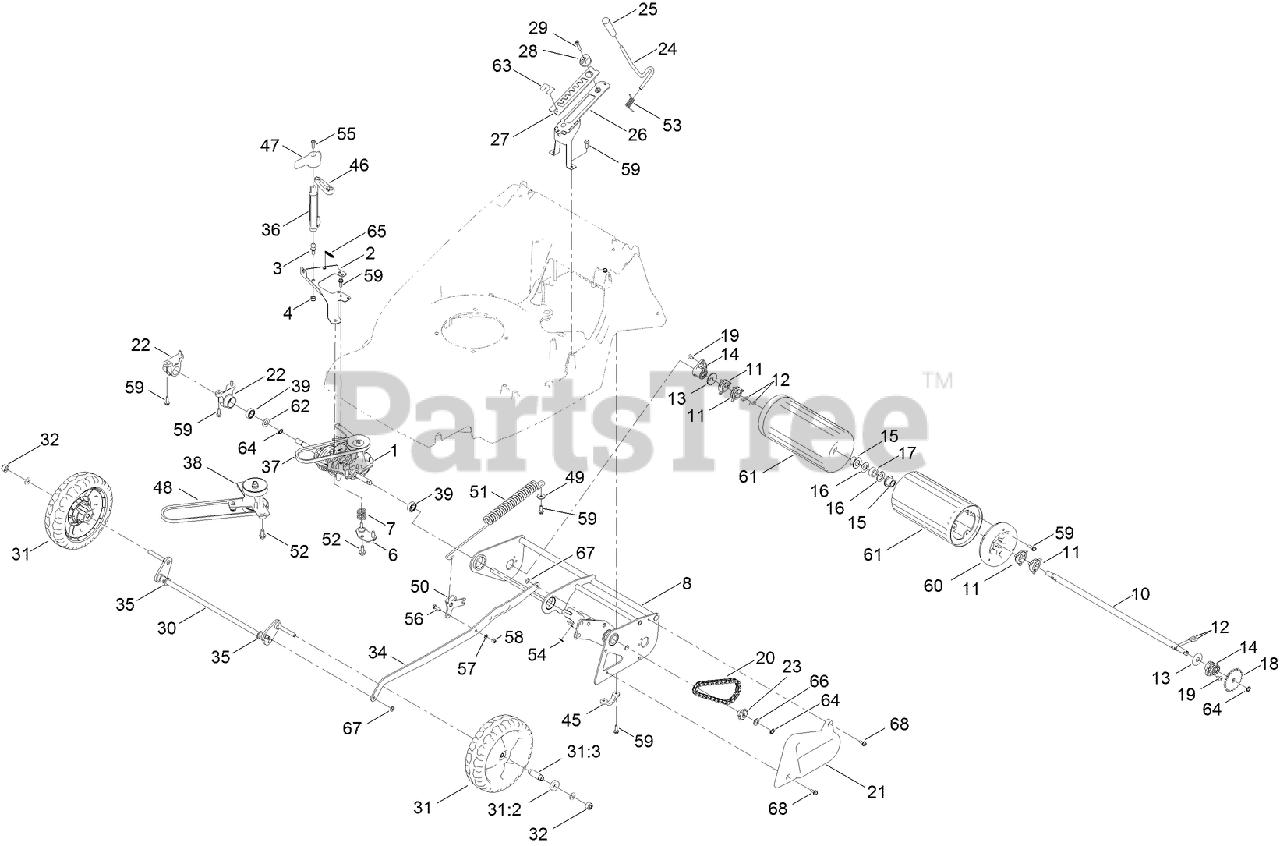

02657 - Toro ProStripe 560 Walk-Behind Mower (SN: 404000000 - 406999999) Traction and Height-of-Cut Assembly Parts Diagram

ProStripe 560 Walk-Behind Mower

Traction and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 134-0348

GEARBOX-3 SPEED

$

$

Not available

2

Toro 134-0386

PLATE-MOUNTING, GEARBOX

$

$

Currently unavailable

3

Toro 134-2223

STUD-BALL

$

$

Currently unavailable

4

Toro 09441

NUT-HEX, NI

$

$

Not available

6

Toro 134-2209

GEARBOX BRACKET ASSEMBLY

$

$

Currently unavailable

7

Toro 111-8587

SPRING-MOUNTING, GEARBOX

$

$

Currently unavailable

8

Toro 134-0337-03

REAR AXLE FRAME ASSEMBLY

$

$

Currently unavailable

10

Toro 134-2632

SHAFT-ROLLER, PRO

$

$

Currently unavailable

11

Toro 134-2924

CAM-DRIVE

$

$

Currently unavailable

12

Toro 134-2034

KEY-DRIVE

$

$

Currently unavailable

13

Toro 111-8602

WASHER-THRUST

$

$

Currently unavailable

14

Toro 134-0049

BEARING

$

$

Not available

15

Toro 340129

BUSHING-ROLLER, OILITE

$

$

Currently unavailable

16

Toro 480097

WASHER

$

$

Currently unavailable

17

Toro 134-0314

SPACER-ROLLER

$

$

Currently unavailable

18

Toro 134-3806

SPROCKET

$

$

Currently unavailable

19

Toro 134-0050

SCREW-TAPTITE

$

$

Currently unavailable

20

Toro 134-0355

CHAIN

$

$

Currently unavailable

21

Toro 134-0372

COVER-CHAIN

$

$

Currently unavailable

22

Toro 134-0393

MOUNT-BEARING, FRAME (REAR)

$

$

Currently unavailable

23

Toro 134-3805

SPROCKET, 10T

$

$

Currently unavailable

24

Toro 111-8705

LEVER-HOC

$

$

Currently unavailable

25

Toro 480134

KNOB-HOC

$

$

Currently unavailable

26

Toro 134-0358

HOC TOWER ASSEMBLY

$

$

Currently unavailable

27

Toro 134-0361

PLATE-HOC

$

$

Currently unavailable

28

Toro 134-0362

ADJUSTER-HOC

$

$

Currently unavailable

29

Toro 111-4586

SCREW-HSH

$

$

Currently unavailable

30

Toro 134-2200

56 FRONT AXLE ASSEMBLY

$

$

Not available

31

Toro 133-2639

WHEEL

$62.99

$

In Stock, only 1 left!

0

31:2

Toro 133-2603

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

31:3

Toro 125-1077

SPACER

$6.99

$

In Stock, only 3 left!

0

32

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

34

Toro 134-0365

CONNECTING ROD ASSEMBLY

$

$

Currently unavailable

35

Toro 410069

BEARING-AXLE, FRONT

$

$

Currently unavailable

36

Toro 134-0367

ROD-SELECTOR, 3 SPEED

$

$

Currently unavailable

37

Toro 134-0352

V-BELT

$

$

Currently unavailable

38

Toro 134-2226

JACK SHAFT ASSEMBLY

$

$

Currently unavailable

39

Toro 134-2889

BEARING, BALL 12MM

$

$

Currently unavailable

45

Toro 111-8670

AXLE- SUPPORT, REAR

$

$

Currently unavailable

46

Toro 134-2225

ARM-SELECTOR, 3 SPEED

$

$

Currently unavailable

47

Toro 134-2224

KNOB- SELECTOR, 3 SPEED

$

$

Currently unavailable

48

Toro 134-2295

V-BELT

$

$

Currently unavailable

49

Toro 09263

WASHER

$

$

Currently unavailable

50

Toro 134-2254

SPRING LOAD LEVER

$

$

Currently unavailable

51

Toro 134-2287

SPRING COUNTER BALANCE

$

$

Currently unavailable

52

Toro 134-2299

SCREW-HWH

$

$

Currently unavailable

53

Toro 480132

SPRING-TORSION, HOC

$

$

Currently unavailable

54

Toro 04020

GRIP-FIX

$

$

Not available

55

Toro 09687

SCREW

$

$

Currently unavailable

56

Toro 09363

SCREW-HH

$

$

Not available

57

Toro 09472

WASHER-PLAIN

$

$

Not available

58

Toro 09544

NUT-NYLOC

$

$

Currently unavailable

59

Toro 09575

SCREW-TAPTITE

$

$

Not available

60

Toro 134-2631

CAP-ROLLER, END

$

$

Currently unavailable

61

Toro 134-0315-03

ROLLER SHELL ASSEMBLY

$

$

Currently unavailable

62

Toro 134-2623

WASHER-THRUST

$

$

Currently unavailable

63

Toro 134-2620

DECAL-HOC

$

$

Currently unavailable

64

Toro 134-0254

CIRCLIP-EXTERNAL, HD

$

$

Currently unavailable

65

Toro 134-3366

LEVER-SPRING, CLUTCH (RETURN)

$

$

Currently unavailable

66

Toro 111-8216

WASHER-THRUST

$

$

Currently unavailable

67

Toro 0201086

WASHER-STARLOCK

$

$

Not available

68

Toro 09365

SCREW-TAPTITE

$

$

Currently unavailable
