02657 - Toro ProStripe 560 Walk-Behind Mower (SN: 404000000 - 406999999) Engine and Blade Assembly Parts Diagram

ProStripe 560 Walk-Behind Mower

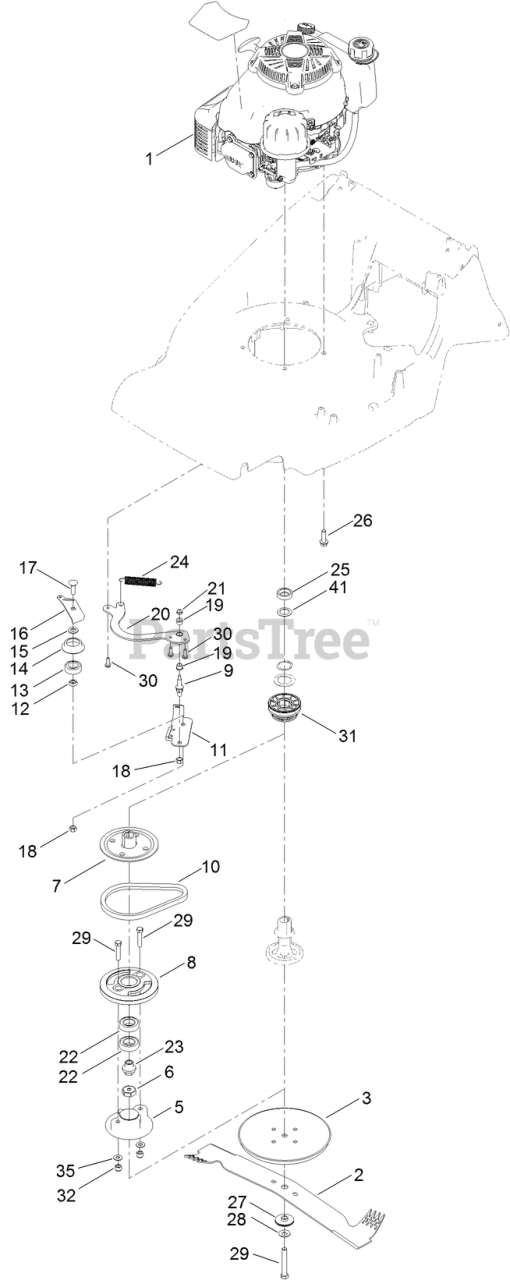

Engine and Blade Assembly Parts Diagram

  • Title
1

Toro 134-2551

ENGINE-KAWASAKI, FJ180V, BBC

$

$

Currently unavailable

2

Toro 134-3200

CUTTERBAR

$

$

Not available

3

Toro 410057W

DISC-FRICTION

$

$

Not available

5

Toro 134-2252

SPACER-BLADE, BBC

$

$

Currently unavailable

6

Toro 134-2648

NUT-RETAINING

$

$

Currently unavailable

7

Toro 134-3983

PULLEY-DRIVE

$

$

Not available

8

Toro 134-2590

DRUM-BBC

$

$

Currently unavailable

9

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 20+

0

10

$30.99

$

In Stock, Qty 20+

0

11

Toro 125-1063

PLATE-BRAKE

$23.99

$

In Stock, Qty 20+

0

12

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 20+

0

13

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

14

Toro 138-3217

RETAINER-BELT

$3.49

$

In Stock, Qty 20+

0

15

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

16

Toro 111-8855

PLATE-TENSIONER

$

$

Currently unavailable

17

Toro 119-4162

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

19

Toro 130-2377

BUSHING-FLANGE

$1.99

$

In Stock, Qty 20+

0

20

Toro 111-8653

ANCHOR PLATE ASSEMBLY

$

$

Currently unavailable

21

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 134-0325

BEARING

$

$

Currently unavailable

23

Toro 111-8895

BBC SHAFT NUT

$

$

Currently unavailable

24

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

25

Toro 111-8828

SPACER-RETAINING

$

$

Currently unavailable

26

Toro 09349

SCREW-TAPTITE, UNC

$

$

Currently unavailable

27

Toro 134-3973

SPACER-DISTANCE, CUTTERBAR

$

$

Currently unavailable

28

Toro 134-3191

WASHER-LOCK

$

$

Currently unavailable

29

Toro 09119

BOLT

$

$

Currently unavailable

30

Toro 09575

SCREW-TAPTITE

$

$

Not available

31

Toro 134-2714

PULLEY-ENGINE

$

$

Currently unavailable

32

Toro 09216

NUT-HEX, NI

$

$

Not available

35

Toro ZWQ1J000U

WASHER-PLAIN

$

$

Currently unavailable

41

Toro 134-2253

SPRING-DISK

$

$

Currently unavailable
