02656 - Toro ProStripe 560 Walk-Behind Mower (SN: 315000001 - 315999999) (2015) LOWER ASSEMBLY Parts Diagram

ProStripe 560 Walk-Behind Mower

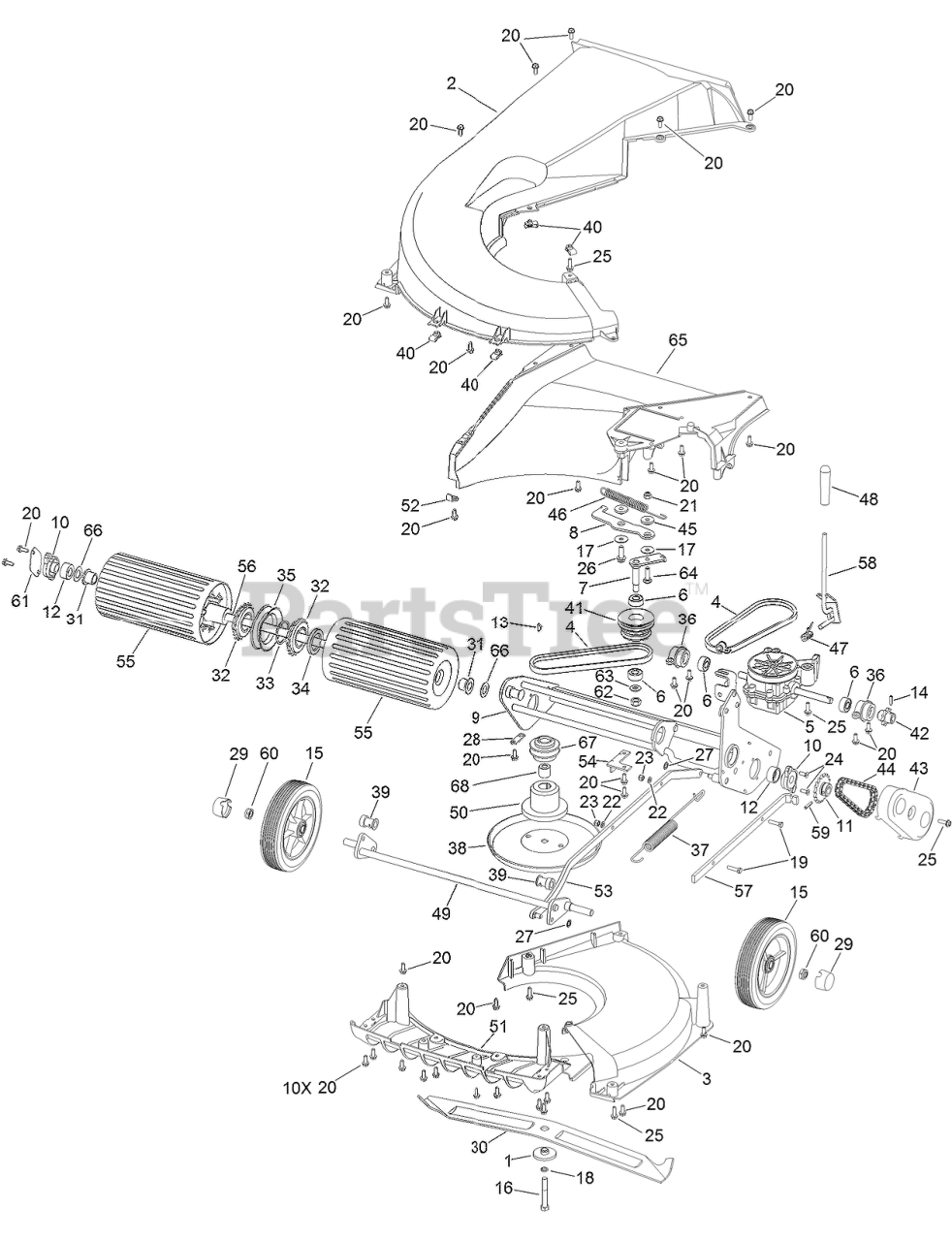

LOWER ASSEMBLY Parts Diagram

  • Title
1

Toro HY4014

SPACER-DISTANCE, CUTTERBAR

$

$

Currently unavailable

2

Toro 111-1164

UNDERDECK-FIXED

$

$

Not available

3

Toro 111-1163

UNDERDECK-REMOVABLE

$

$

Not available

4

Toro 411024

BELT-VARIATOR (520)

$

$

Currently unavailable

5

Toro 111-7934

GEARBOX ASM

$

$

Not available

6

Toro 111-1276

BEARING

$

$

Not available

7

Toro 111-3326

LEVER TAKE-UP ASM

$

$

Currently unavailable

8

Toro 111-3250

ARM-PLATE, TAKE-UP

$

$

Currently unavailable

9

Toro 111-1485-03

FRAME-ROLLER, REAR

$

$

Currently unavailable

10

Toro 111-1492

BEARING-ROLLER

$

$

Currently unavailable

11

Toro 111-1552

SPROCKET-18T

$

$

Currently unavailable

12

Toro 111-1860

COVER-DUST, BUSHING

$

$

Currently unavailable

13

Toro 1662

KEY-WOODRUFF

$

$

Currently unavailable

14

Toro 03997

PIN-ROLL

$

$

Currently unavailable

15

Toro 111-1250

WHEEL-RIBBED

$

$

Not available

16

Toro 09122

BOLT-UNF

$

$

Currently unavailable

17

Toro 09270

WASHER-PLAIN

$

$

Not available

18

Toro 09273

WASHER-SPRING

$

$

Not available

19

Toro 09364

SCREW-HH

$

$

Not available

20

Toro 09365

SCREW-TAPTITE

$

$

Currently unavailable

21

Toro 09441

NUT-HEX, NI

$

$

Not available

22

Toro 09472

WASHER-PLAIN

$

$

Not available

23

Toro 09544

NUT-NYLOC

$

$

Currently unavailable

24

Toro 09545

SCREW-TAPTITE

$

$

Currently unavailable

25

Toro 09575

SCREW-TAPTITE

$

$

Not available

26

Toro 09787

SCREW-TAPTITE

$

$

Currently unavailable

27

Toro 0201086

WASHER-STARLOCK

$

$

Not available

28

Toro 219037

PLATE-SECURING

$

$

Currently unavailable

29

Toro 111-1251

CAP-HUB

$

$

Currently unavailable

30

Toro 340015

CUTTERBAR

$

$

Not available

31

Toro 340129

BUSHING-ROLLER, OILITE

$

$

Currently unavailable

32

Toro 340150

FREEWHEEL-ROLLER

$

$

Currently unavailable

33

Toro 340157

SPACER-STEEL

$

$

Not available

34

Toro 340163

LOCKNUT

$

$

Currently unavailable

35

Toro 340168

SHROUD-FREEWHEEL

$

$

Currently unavailable

36

Toro 410048

HOUSING-PIVOT BEARING, LH

$

$

Currently unavailable

37

Toro 410050

SPRING-COUNTER BALANCE

$

$

Currently unavailable

38

Toro 410057W

DISC-FRICTION

$

$

Not available

39

Toro 410069

BEARING-AXLE, FRONT

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Toro 111-7157

PULLEY TAKE-UP

$

$

Currently unavailable

42

Toro 411011

SPROCKET-GEARBOX

$

$

Not available

43

Toro 411013

COVER-DRIVE

$

$

Currently unavailable

44

Toro 411016

CHAIN-40 PITCHES (3/8 INCH LINK)

$

$

Currently unavailable

45

Toro 411031

BUSHING-PIVOT

$

$

Currently unavailable

46

Toro HY412004

SPRING-VARIATOR

$

$

Currently unavailable

47

Toro 480132

SPRING-TORSION, HOC

$

$

Currently unavailable

48

Toro 480134

KNOB-HOC

$

$

Currently unavailable

49

Toro 560008

AXLE-FRONT

$

$

Currently unavailable

50

Toro 111-7246

BOSS-BLADE

$

$

Currently unavailable

51

Toro 111-3364

FINS-FRONT

$

$

Currently unavailable

52

Toro 560027

CLAMP

$

$

Currently unavailable

53

Toro 560028

ROD-CONNECTING

$

$

Currently unavailable

54

Toro 560029

BRACKET-ROD

$

$

Currently unavailable

55

Toro 560031W

ROLLER-REAR

$

$

Currently unavailable

56

Toro 111-1717

SHAFT-ROLLER

$

$

Currently unavailable

57

Toro 560037

BAR-TENSION, SPRING

$

$

Currently unavailable

58

Toro 560046

LEVER-HOC

$

$

Currently unavailable

59

Toro HY03354

PIN-SPRING, SELLOC

$

$

Currently unavailable

60

Toro HY4486

NUT-UNF

$1.49

$

In Stock, Qty 5

0

61

Toro 111-1861

PLATE-COVER, DUST

$

$

Currently unavailable

62

Toro ZNN1J000U

NUT-HEX, NI

$

$

Currently unavailable

63

Toro ZWQ1J000U

WASHER-PLAIN

$

$

Currently unavailable

64

Toro 03162

SCREW-HH

$

$

Not available

65

Toro 560011-03

THROWPLATE

$

$

Not available

66

Toro 480097

WASHER

$

$

Currently unavailable

67

Toro 111-7245

PULLEY

$

$

Currently unavailable

68

Toro 111-7247

SPACER-BOSS

$

$

Currently unavailable
