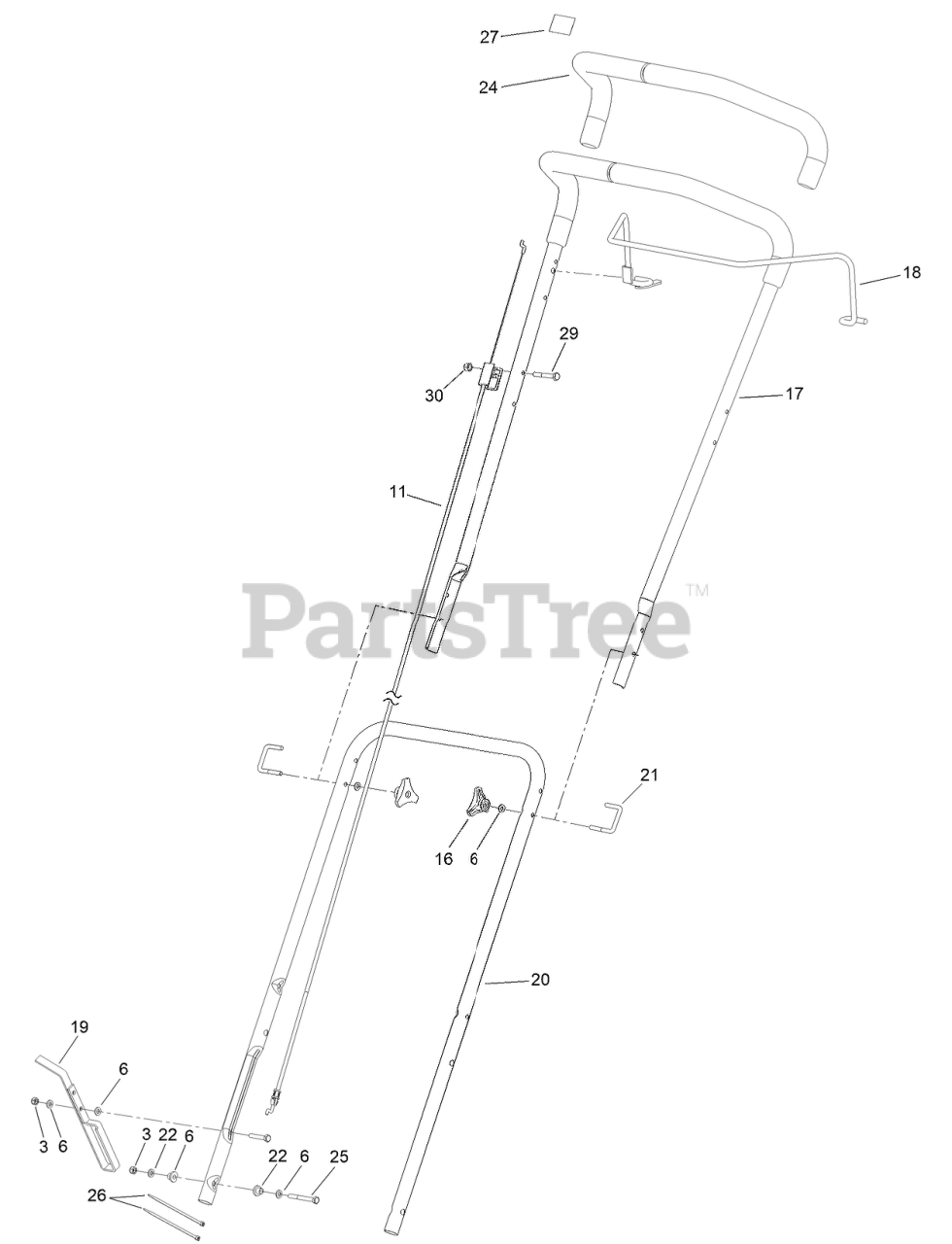

02617 - Toro HoverPro 550 Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

HoverPro 550 Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title
3

Toro 09438

NUT-NYLOC

$

$

Not available

6

Toro 111-7679

WASHER-PLAIN

$

$

Not available

11

Toro 134-6958

OPC CABLE

$

$

Currently unavailable

16

Toro H192204

HANDWHEEL

$

$

Currently unavailable

17

Toro H290237

HANDLE-UPPER

$

$

Currently unavailable

18

Toro H290239

ARM-BAIL

$

$

Currently unavailable

19

Toro H290286

FOOTSTOP

$

$

Currently unavailable

20

Toro 111-7260-03

HANDLE-LOWER

$

$

Currently unavailable

21

Toro H292026

BOLT-U

$

$

Currently unavailable

22

Toro H292058

SPACER-HANDLE

$

$

Currently unavailable

24

Toro H292276

GRIP-HANDLE

$

$

Currently unavailable

25

Toro H292309

BOLT-HEX

$

$

Currently unavailable

26

Toro HY3966

TIE-CABLE

$

$

Not available

27

Toro H295159

DECAL-STOP

$

$

Currently unavailable

29

Toro 05010

BOLT

$

$

Currently unavailable

30

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+
