02617 - Toro HoverPro 550 Walk-Behind Mower (SN: 400000000 - 999999999) Engine and Deck Assembly Parts Diagram

HoverPro 550 Walk-Behind Mower

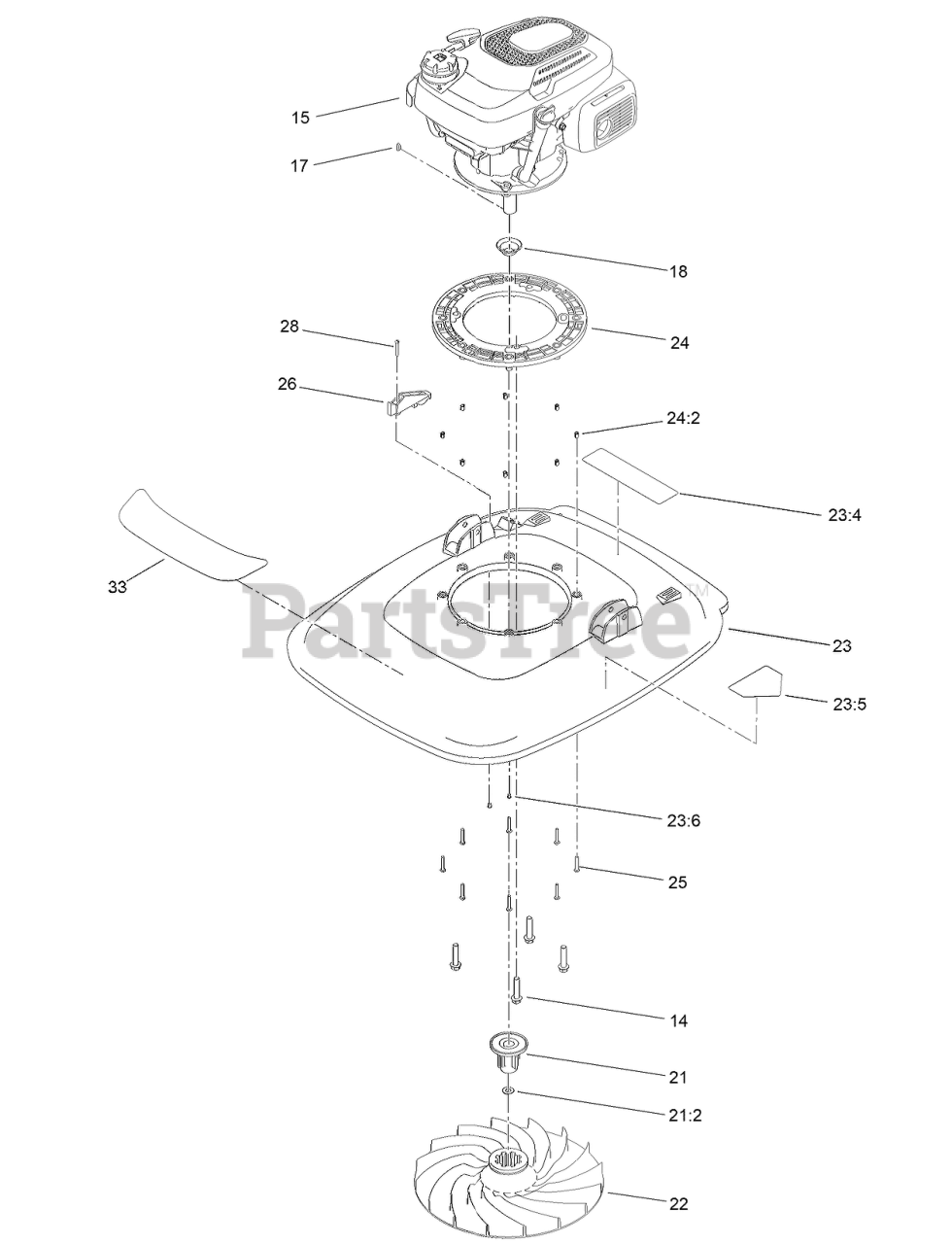

Engine and Deck Assembly Parts Diagram

  • Title
14

Toro 111-2157

SCREW-TAPTITE

$

$

Currently unavailable

15

Toro 134-6432

ENGINE-HONDA (GCVX170)

$

$

Currently unavailable

17

Toro 1662

KEY-WOODRUFF

$

$

Currently unavailable

18

Toro H190118

PROTECTOR-SEAL, OIL

$

$

Currently unavailable

21

Toro H290011

DRIVE AND SPACER ASM

$

$

Not available

21:2

Toro 09479

WASHER-PLAIN

$

$

Not available

22

Toro H192268

IMPELLER

$

$

Currently unavailable

23

Toro 111-6004

DECK ASM

$

$

Currently unavailable

23:4

Toro 111-5393

DECAL-WARNING

$

$

Currently unavailable

23:5

Toro 111-9826

DECAL-DANGER

$

$

Currently unavailable

23:6

Toro H292280

INSERT

$

$

Currently unavailable

24

Toro H290003

FRAME-ENGINE

$

$

Currently unavailable

24:2

Toro H192266

INSERT-BRASS

$

$

Currently unavailable

25

Toro H292004

SET-SCREW

$

$

Currently unavailable

26

Toro H292269

BRACKET

$

$

Currently unavailable

28

Toro H292279

SCREW

$

$

Currently unavailable

33

Toro 111-5351

DECAL-HOVER PRO

$

$

Currently unavailable
